2. Parts, controls and connectors

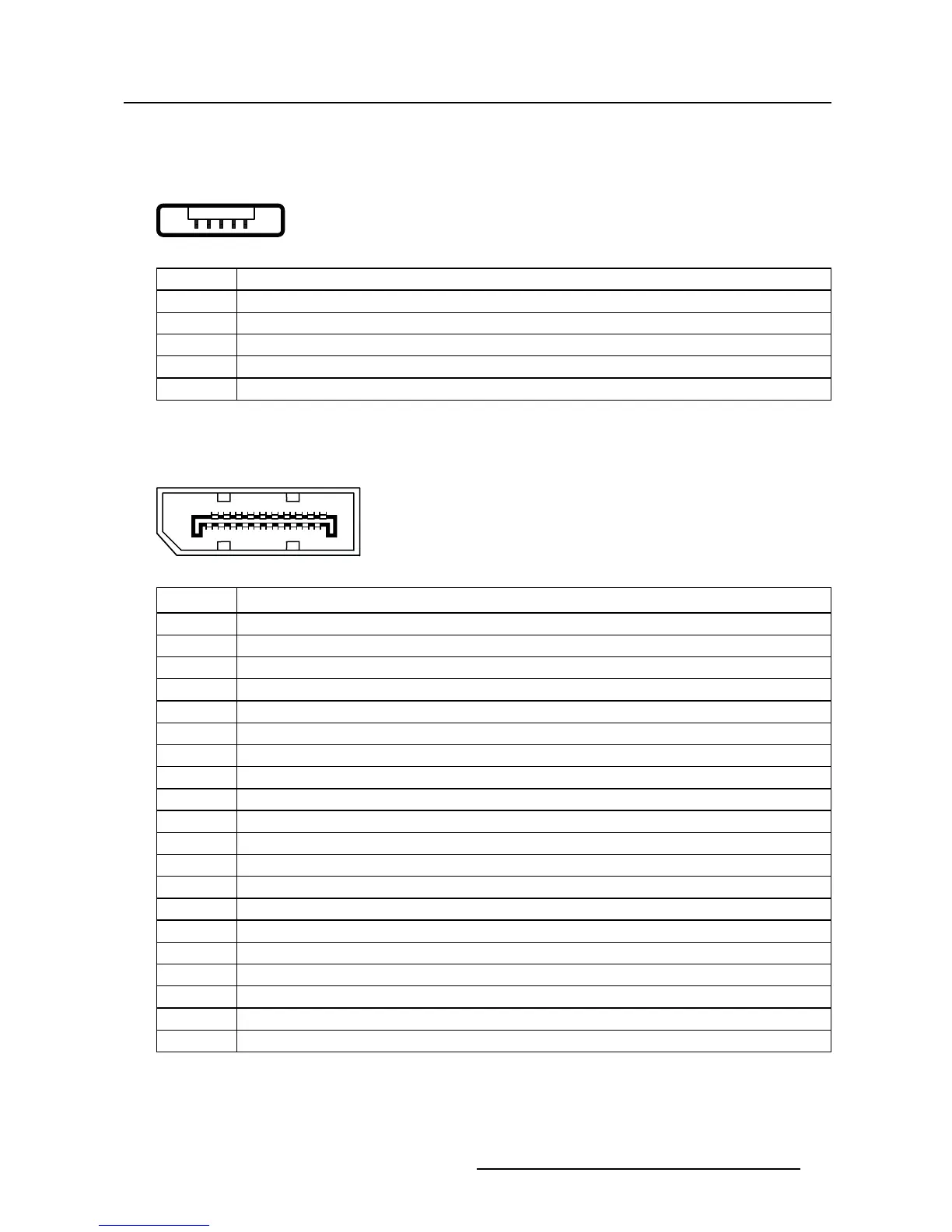

2.4.6 Mini U SB connector
Overview
12345
Image 2-10
Pin Function
1
+5 VDC
2Data—
3Data+
X Not connected
4
GND
2.4.7 DisplayPort connector
Overview
19 17 15 13 11 9 7 5 3 1
20 18 16 14 12 10 8 6 4 2
Image 2-11
Pin Function
1
ML_Lane 0 (p)
2
GND
3
ML_Lane 0 (n)
4
ML_Lane 1 (p)
5
GND
6
ML_Lane 1 (n)
7
ML_Lane 2 (p)
8
GND
9
ML_Lane 2 (n)
10
ML_Lane 3 (p)
11
GND
12
ML_Lane 3 (n)
13
CONFIG1
14
CONFIG2
15
AUX CH (p)
16
GND
17
AUX CH (n)
18 Hot Plug
19 Return
20
DP_PWR (+3.3 VDC)
