3. Display installation
3
1 2

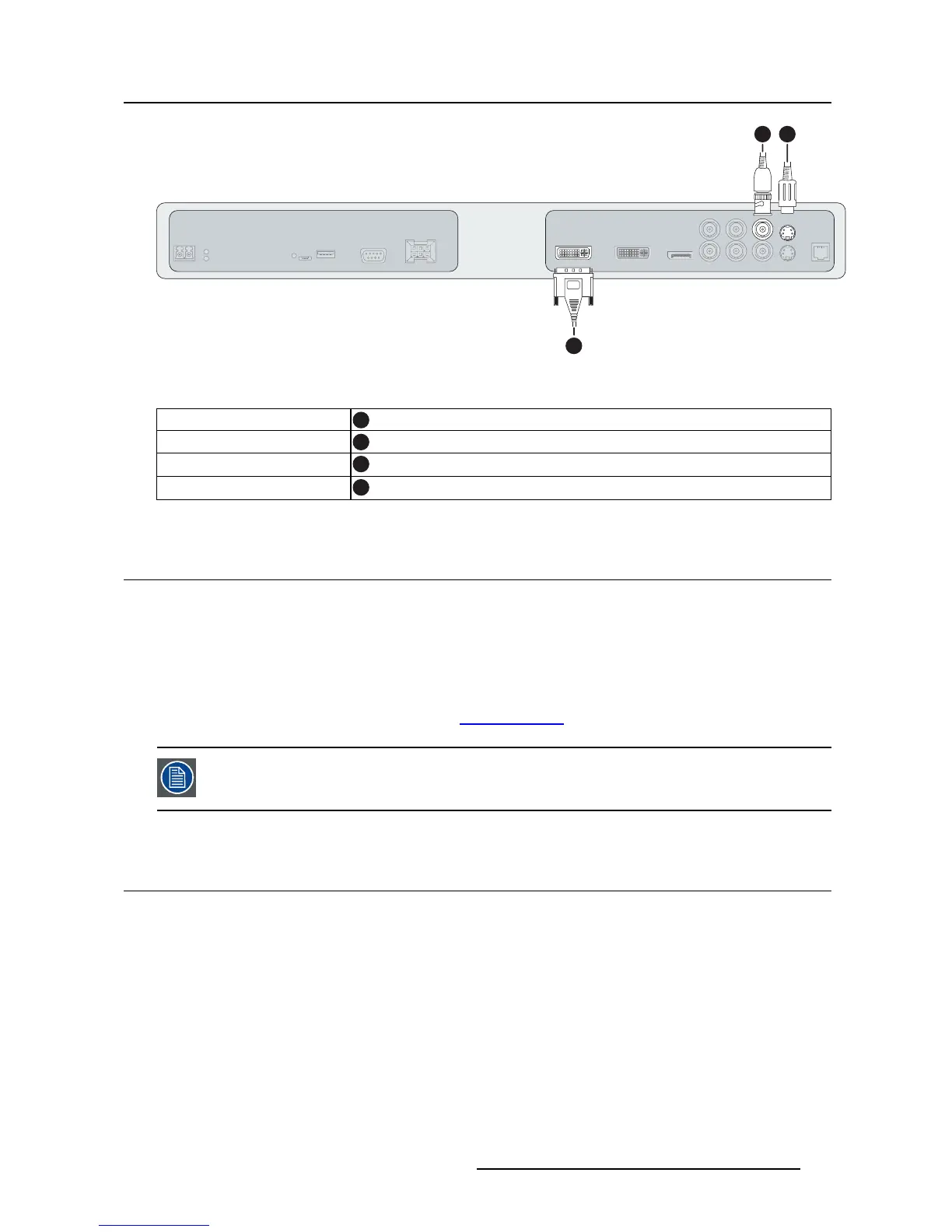

Image 3-6
CVBS
1
S-Video
2
DVI
3
(tobeconfiguredinOSDmenu)
Nexxis
3
(tobeconfiguredinOSDmenu)
3.5 Nexxis OR
Overview
Connecting your MDSC-2224 to Barco’s Nexxis OR system allows you to distribute video, graphics, audio
and computer data over the IP network, in raw uncompressed format, inside the operating room and even
between surgical suites.
To connect your MDSC-2224 to Barco’s Nexxis OR system, connect the 10Gb Ethernet interface to your
Nexxis switch. More info about Nexxis OR and ho
wtoconfigure the MDSC-2224 in your network is avail-
able in the dedicated user guides. Please visit w
ww.barco.com to obtain these user guides.
Nexxis OR is only available on the MDSC-2224 MNA version.
3.6 Pow er su pp ly connection
To connect the power supply
1. Connect the supplied external DC power supply unit to the +24 VDC power input of your MDSC-2224
display.
2. Plug the other end of the external DC power supply into a grounded power outlet by means of the
proper power cord delivered in the packaging.
Note: The ground and the shield connections on the power input connector have no Protective Earth
function. A Protective Earth connection is provided via a dedicated pin (see image 3-8).
(451920611391)K5903031 MDSC-2224 21/01/2014
17
