Barco MDSC-2224 User Manual

2. Parts, controls and connectors
10
CVBS out
11
R/Pr
12
G/Y
13
B/Pb
14
S-Video out
15
S-Video
16
Service

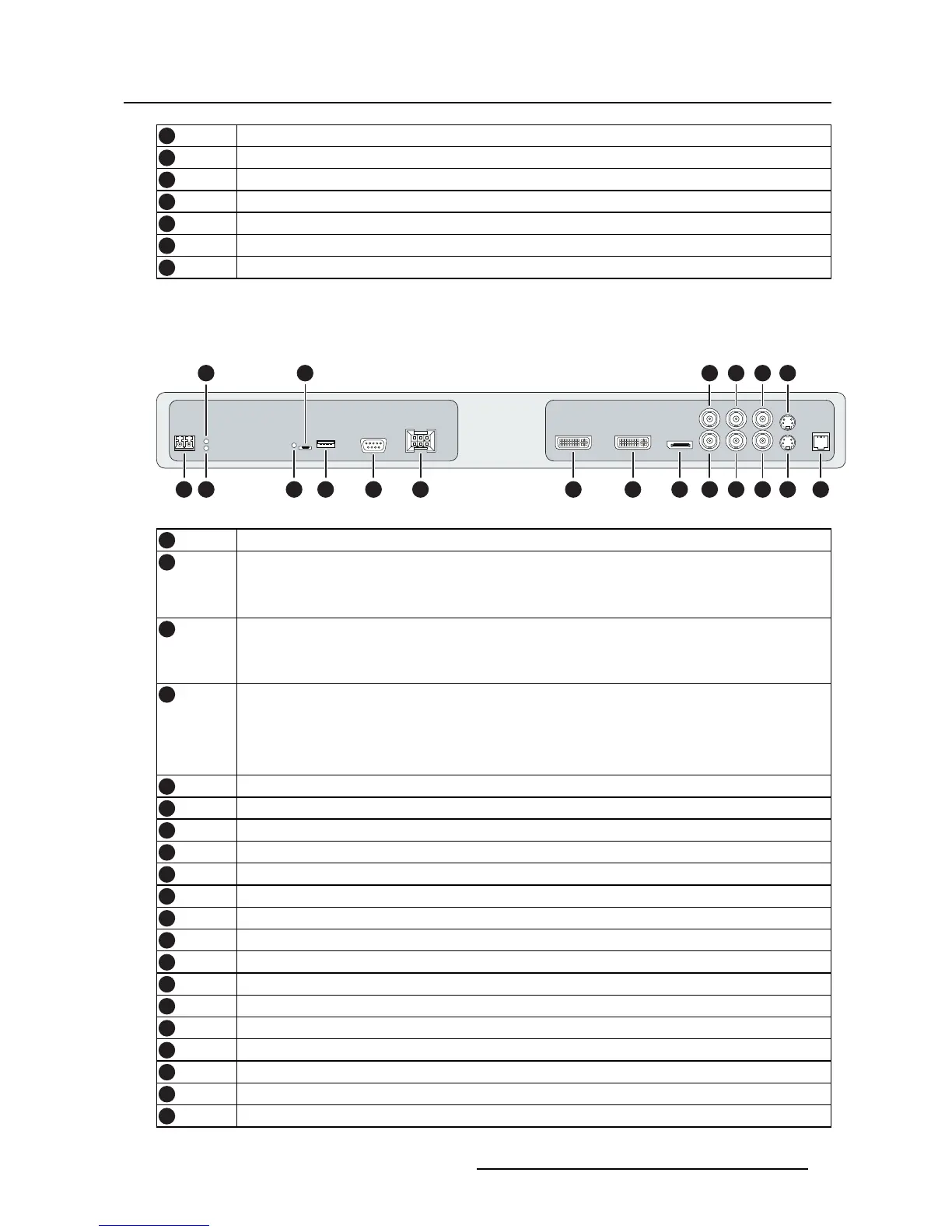

2.3.2 MDSC-2224 MNA version
Overview
1 2 4 6 7 8 9 10 11 15 16 17 19
125 13 14 18
20
3
Image 2-4
1
Optical 10Gb Ethernet SFP+ interface*
2
LED2*
Orange blinking: Activity = (Tx) or (Rx)
Off: No network activity
3
LED1*
Green: Link is active
Off: No active network connection
4
LED3*
Green: Power on, normal operation
Off: System not powered
Orange blinking: Error
5
Micro USB interface*
6
USB 2.0 type A interface*
7
RS232
8
Input power connector
9
DVI out
10
DVI-1 (digital & analog – HDMI video support with HDCP)
11
DisplayPort (VESA std 1.1a)
12
Sync
13
CVBS
14
CVBS out
15
R/Pr
16
G/Y
17
B/Pb
18
S-Video out
19
S-Video
20
Service
(451920611391)K5903031 MDSC-2224 21/01/2014 7
