3. Display installation

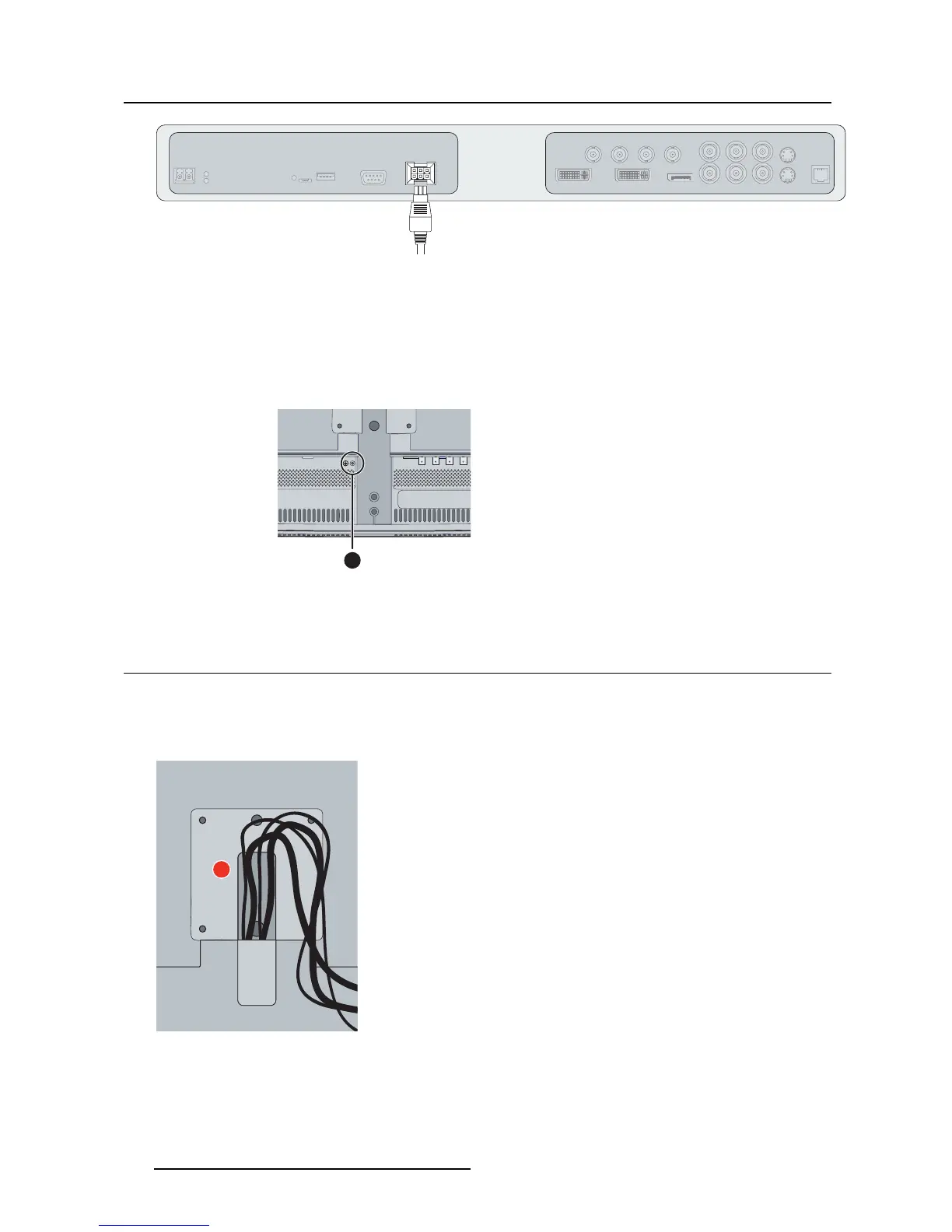

Image 3-7
Protective earth pin
1. Earth the MDSC-2224 by connecting the protective earth pin to a grounded outlet by means of an
AWG18 (max. 6ft / 1,8m long) wire.
1
Image 3-8
3.7 Cable routing
To route the cables
1. For displays mounted to a VESA arm with internal cable routing provisions, route all cables through the
cable routing channel, then reinstall the connector compartment cover.
8a
Image 3-9
18 (451920611391)K5903031 MDSC-2224 21/01/2014
