Barco MDSC-2224 User Manual

2. Parts, controls and connectors
18
D0_Rx+ (T.M.D.S.)
19
GND (data 0 shield)
20 Not connected
21 Not connected
22
GND (clock shield)
23
CK_Rx+ (T.M.D.S.)
24
CK_Rx- (T.M.D.S.)
(*) +5 VDC output always available. (+5V ± 10% @ 500mA (max))

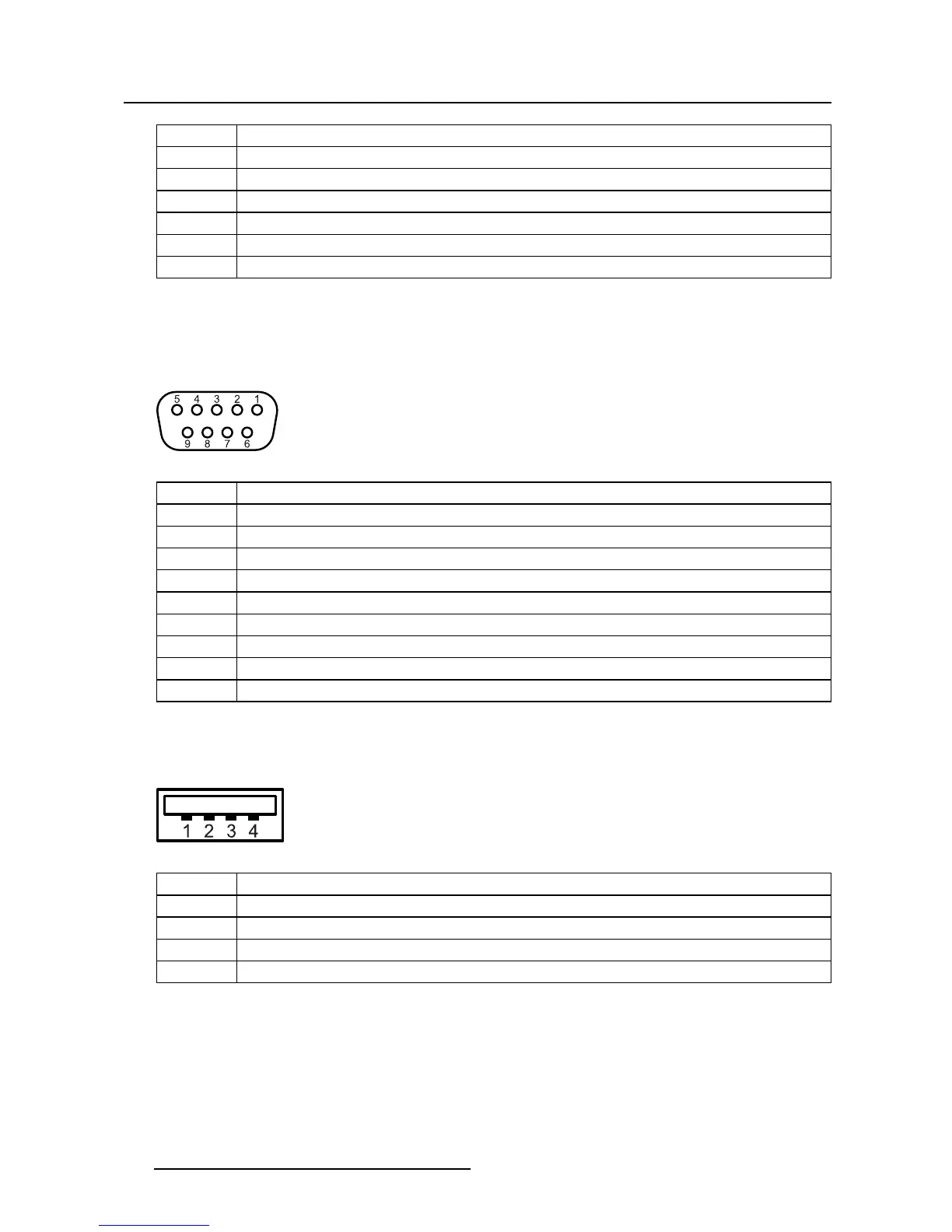

2.4.4 RS232 connector
Overview
Image 2-8
Pin Function
1 Not connected
2
Rx (driven by host)
3
Tx (driven by display)
4 Not connected
5
Ground
6 Not connected
7
Not connected
8 Not connected
9 Not connected
2.4.5 USB connector
Overview
Image 2-9
Pin Function
1
+5 VDC
2Data—
3Data+
4
GND
10 (451920611391)K5903031 MDSC-2224 21/01/2014
