Barco RLM W6 User Manual

15

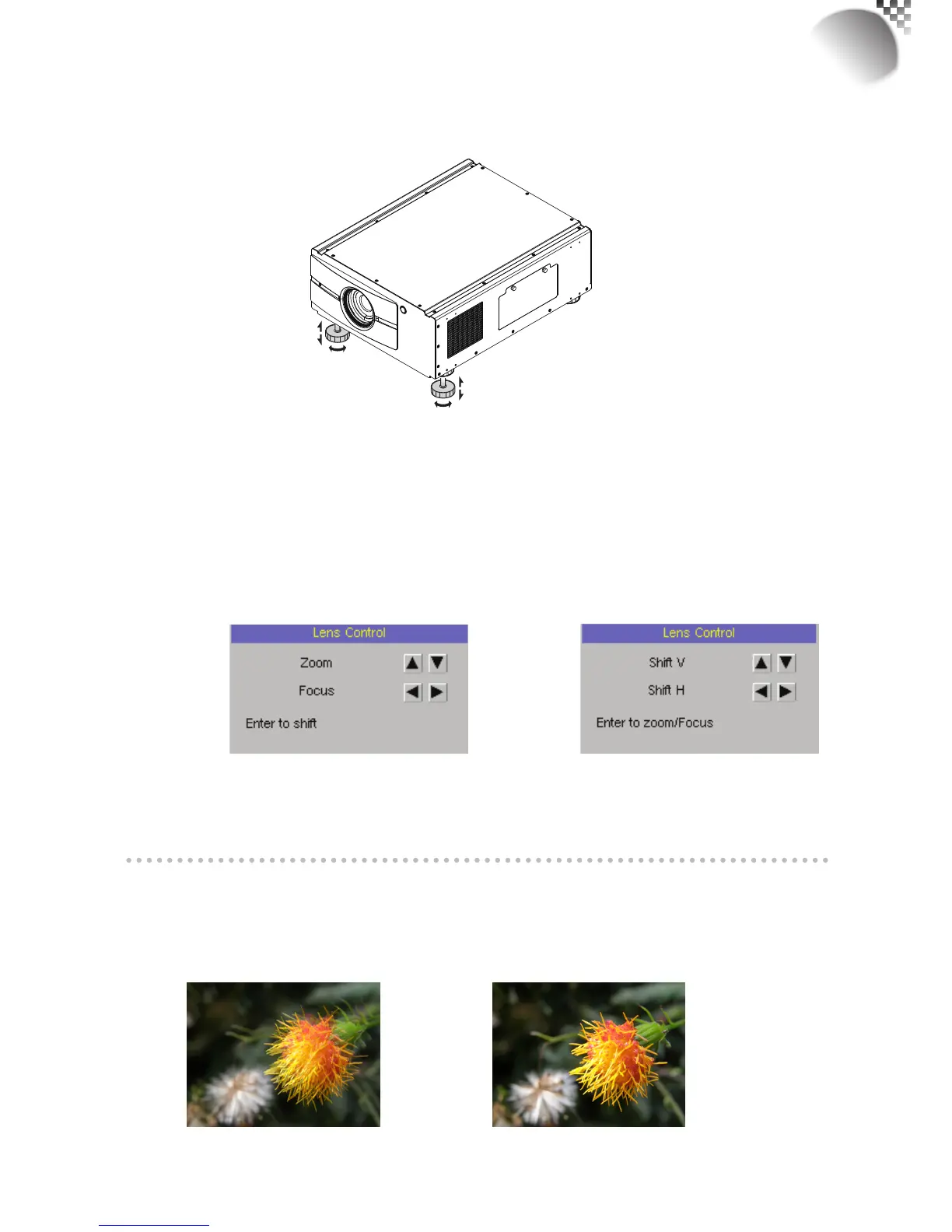

5. Adjusting the projector's angle
a. Please use the adjustable feet to change the angle of the projector in order to achieve
the most suitable angle for projection on the screen.
b. Adjusting the lens by horizontal and vertical lens shift
Method 1: Press the ENTER button on the remote control to access Lens Control
adjustment screen before pressing ENTER once again to access the menu
and use the ▼▲
▼ ▲
buttons to adjust the horizontal or vertical position of
the lens.
Press ENTER once to adjust
zoom and focus
Press ENTER again to adjust vertical
and horizontal lens shift

Enter
Method 2: Press the MENU button on the remote control and choose Alignment 
Lens Control; then use the ▼▲
▲ ▼
buttons to adjust the horizontal or
vertical position of the lens.
6.Adjusting focus and zoom.
a. Press the MENU button on the remote control and choose Alignment  Lens
Control; then use the
▼ ▲
buttons to adjust the lens' focus (clarity).

Quick installation of the projector
3

Barco RLM W6 Specifications

General

Matrix size	0.67 \
Heat dissipation	2900 BTU/h
Projection distance	- m
Projection technology	DLP
Contrast ratio (dynamic)	3000:1
Contrast ratio (typical)	2200:1
Digital gamma correction	Yes
Screen size compatibility	- \
Projector native resolution	WUXGA (1920x1200)
Aspect ratio	16:10
RS-232 ports	1
Dimensions (WxDxH)	516.7 x 669.74 x 247 mm
Maximum analog resolution	1600 x 1200 pixels
Maximum digital resolution	1920 x 1200 pixels
Focal length range	- mm
Vertical lens shift range	0 - 100 %
Horizontal lens shift range	-30 - 30 %
Lamp power	330 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	1500 h
Service life of light source (economic mode)	2000 h
Noise level	39 dB
Preset modes	sRGB, Standard
Certification	FCC, CE EN55022 Cl. A, CE, TUV, WEEE.
Dot clock scanning frequency	165 MHz
Full HD	No
Analog signal format system	NTSC
Supported graphics resolutions	1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
BNC input ports	5
Serial interface type	RS-232
USB 2.0 ports quantity	0
Ethernet LAN data rates	10, 100 Mbit/s
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	Black
Market positioning	Presentation
Power source	AC
AC input frequency	50 - 60 Hz
Power consumption (standby)	2 W
Power consumption (typical)	850 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Cables included	AC, HDMI-DVI
Remote control type	IR
Sustainability certificates	RoHS

Weight and Dimensions

Depth	669.74 mm
Width	516.7 mm
Height	247 mm
Weight	26000 g
Package weight	30000 g
