Barco RLM W6 User Manual

22

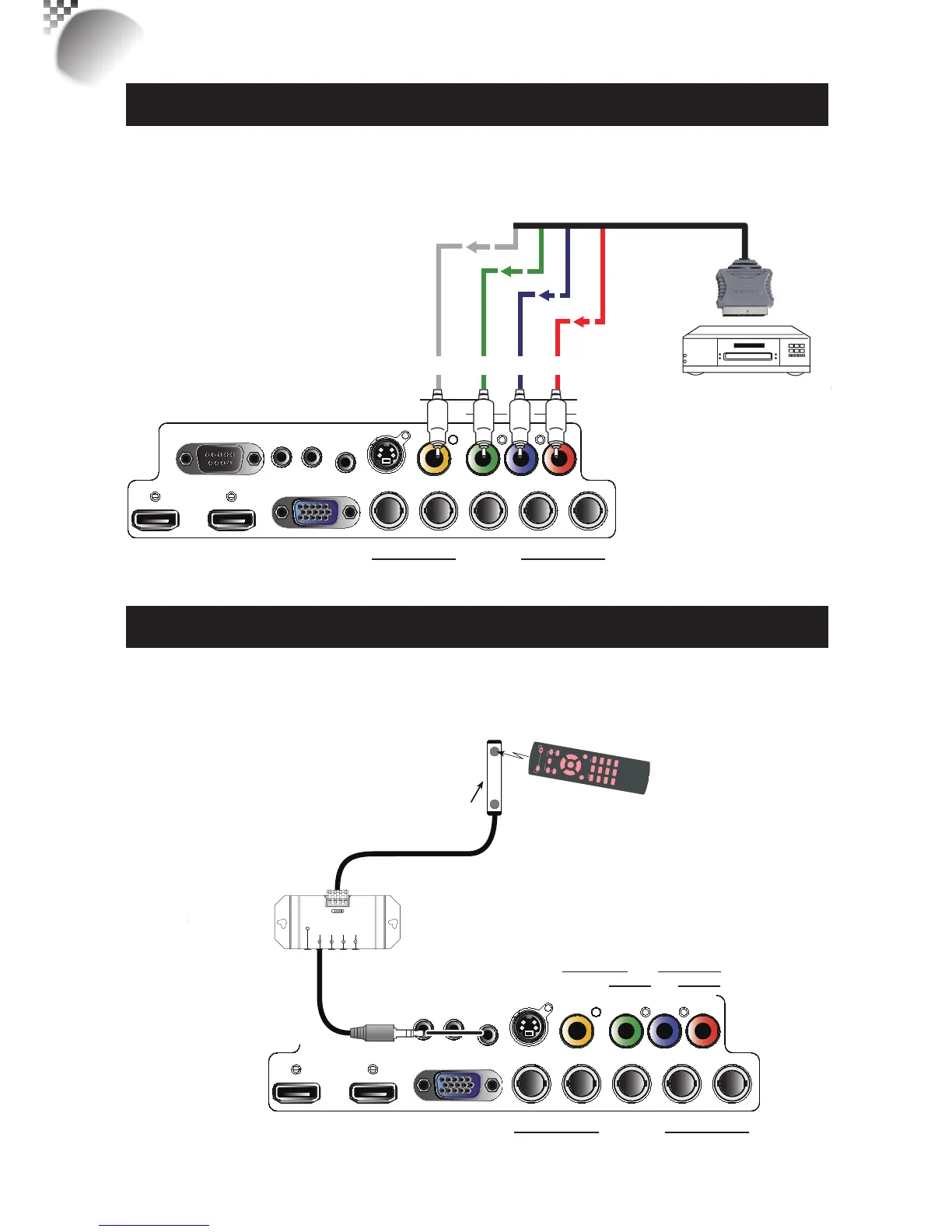

RGBs connection
If the source equipment uses composite image synchronized connectors to output
RGB, please connect the green, blue and red connectors to the Y, Pb, Pr jacks at the
COMPONENT1/SCART inputs and the synchronized output to the VIDEO jack.
S-VIDEO VIDEO
YUV 1
RGB-S
RGBHV / YUV 2
G/Y B/Pb R/Pr H V
RS-232
12V TRIGGER
IR ext.
RGB-HV/SOG
HDMI
 HDMI 
I II
350mA
Synchronize
DVD SCART RGBS
Green Blue Red
DVD player or other SCART
RGBS input sources
IR INPUT connection
If the projector is unable to pick up the IR signals from the remote controle due to distance or
obstacles (i.e. wall or cabinet doors), you can connect an external IR repeater to the projector's
IR INPUT jack to extend the effective signal reception range.
S-VIDEO VIDEO
YUV 1
RGB-S
RGBHV / YUV 2
G/Y B/Pb R/Pr H V
12V TRIGGER
IR ext.
RGB-HV/SOG
HDMI
 HDMI 
I II
350mA
RS-232
O
N
l
PO
W
ER OF
F
▲
▼
▲
▼
USER
M
EMO
R
Y
SOURCE
(3.5-mm mini
phono jack)
IR sensor
IR repeater
Remote control
4
Installing the projector

Barco RLM W6 Specifications

General

Matrix size	0.67 \
Heat dissipation	2900 BTU/h
Projection distance	- m
Projection technology	DLP
Contrast ratio (dynamic)	3000:1
Contrast ratio (typical)	2200:1
Digital gamma correction	Yes
Screen size compatibility	- \
Projector native resolution	WUXGA (1920x1200)
Aspect ratio	16:10
RS-232 ports	1
Dimensions (WxDxH)	516.7 x 669.74 x 247 mm
Maximum analog resolution	1600 x 1200 pixels
Maximum digital resolution	1920 x 1200 pixels
Focal length range	- mm
Vertical lens shift range	0 - 100 %
Horizontal lens shift range	-30 - 30 %
Lamp power	330 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	1500 h
Service life of light source (economic mode)	2000 h
Noise level	39 dB
Preset modes	sRGB, Standard
Certification	FCC, CE EN55022 Cl. A, CE, TUV, WEEE.
Dot clock scanning frequency	165 MHz
Full HD	No
Analog signal format system	NTSC
Supported graphics resolutions	1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
BNC input ports	5
Serial interface type	RS-232
USB 2.0 ports quantity	0
Ethernet LAN data rates	10, 100 Mbit/s
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	Black
Market positioning	Presentation
Power source	AC
AC input frequency	50 - 60 Hz
Power consumption (standby)	2 W
Power consumption (typical)	850 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Cables included	AC, HDMI-DVI
Remote control type	IR
Sustainability certificates	RoHS

Weight and Dimensions

Depth	669.74 mm
Width	516.7 mm
Height	247 mm
Weight	26000 g
Package weight	30000 g
