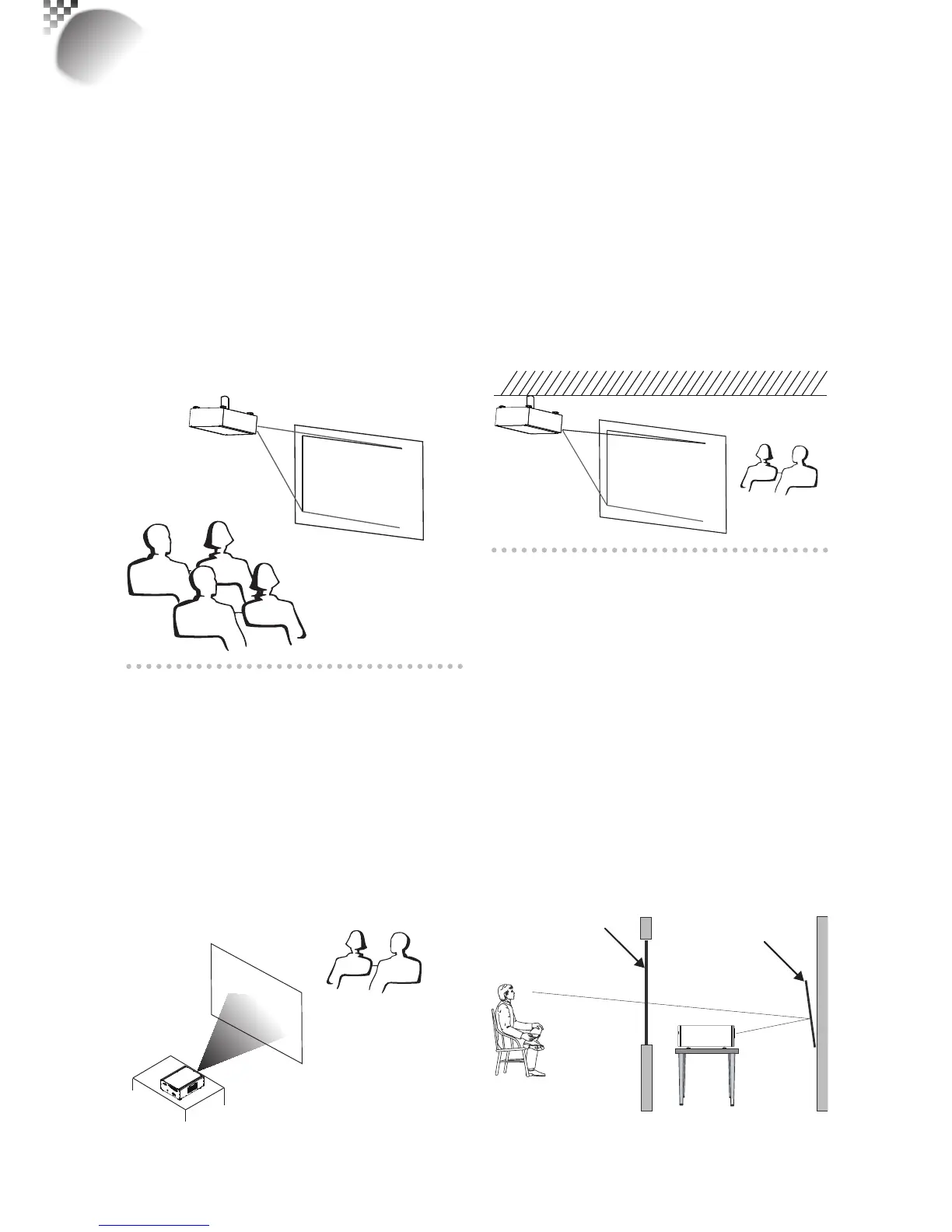

Frontal projection - ceiling mode
Advantage: does not occupy floor space
does not draw attention to it.
Eliminates the possibility that
someone would accidentally
move the projector.
Disadvantage: stricter installation
requirements and conditions;
care should be taken during
the installation to ensure the
projector has been securely
mounted.
operation of the projector
becomes inconvenient without
the remote control.
Rear projection - desktop
installaion
Advantage: the projector is completely
hidden from plain view
the projector can be easily
operated this setup usually
offers better reduction of ambient
noise.
Disadvantage: requires an additional room
for installation relatively higher
costs for installation.
Rear projection - ceiling installation
Advantage: the projector is completely
hidden from plain view this setup
usually offers better reduction of
ambient noise.
Disadvantage: requires an additional room for
installation. Stricter installation
requirements and conditions;
care should be taken during
the installation to ensure the
projector has been securely
mounted. operation of the
projector becomes inconvenient
without the remote control.
Rear projection - submersive
installation
If you wish to have a rear projection setup
with limited space to the rear of the projector,
you can use a mirror to reflect the light
path. However, both the projector and the
mirror have to be precisely located.If you are
considering such installation, please contact
your dealer for assistance.
Advantage: the projector is completely hidden
from plain view
this setup usually offers better
reduction of ambient noise.
Disadvantage: requires an additional room for
installation relatively higher costs
for installation.
Screen
Mirror
Installing the projector
4

Barco RLM W6 Specifications

General

Matrix size	0.67 \
Heat dissipation	2900 BTU/h
Projection distance	- m
Projection technology	DLP
Contrast ratio (dynamic)	3000:1
Contrast ratio (typical)	2200:1
Digital gamma correction	Yes
Screen size compatibility	- \
Projector native resolution	WUXGA (1920x1200)
Aspect ratio	16:10
RS-232 ports	1
Dimensions (WxDxH)	516.7 x 669.74 x 247 mm
Maximum analog resolution	1600 x 1200 pixels
Maximum digital resolution	1920 x 1200 pixels
Focal length range	- mm
Vertical lens shift range	0 - 100 %
Horizontal lens shift range	-30 - 30 %
Lamp power	330 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	1500 h
Service life of light source (economic mode)	2000 h
Noise level	39 dB
Preset modes	sRGB, Standard
Certification	FCC, CE EN55022 Cl. A, CE, TUV, WEEE.
Dot clock scanning frequency	165 MHz
Full HD	No
Analog signal format system	NTSC
Supported graphics resolutions	1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
BNC input ports	5
Serial interface type	RS-232
USB 2.0 ports quantity	0
Ethernet LAN data rates	10, 100 Mbit/s
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	Black
Market positioning	Presentation
Power source	AC
AC input frequency	50 - 60 Hz
Power consumption (standby)	2 W
Power consumption (typical)	850 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Cables included	AC, HDMI-DVI
Remote control type	IR
Sustainability certificates	RoHS

Weight and Dimensions

Depth	669.74 mm
Width	516.7 mm
Height	247 mm
Weight	26000 g
Package weight	30000 g
