Barco RLM W6 User Manual

19
Installing the projector
4
Horizontal and vertical lens shift
In addition to using the adjustable feet to adjust projection angle, you can also use the Lens
Shift function to adjust the projected image.
Moving the lens vertically
The distance of vertical lens movement is 100% of half the screen height in both directions.
For instance, if you are using a 80" × 50" screen, you will be able to move the image upwards
or downwards by no more than 25" (0.635m).
Range of vertical
lens shift adjustment
Range of vertical
lens shift
adjustment

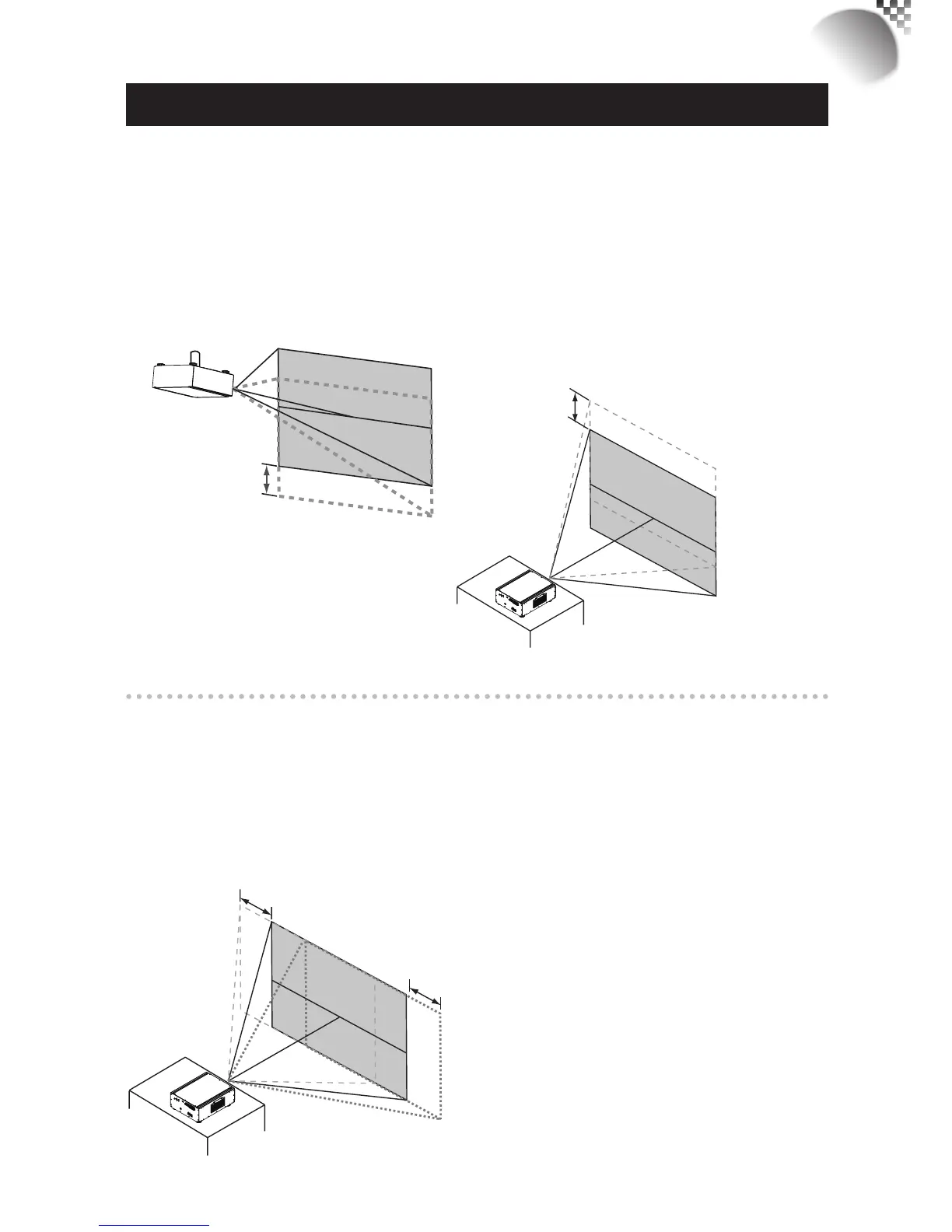

This illustration shows normal vertical
lens shift without the use of special
specication lens or projector.
Moving the lens horizontally
The distance of horizontal lens movement is 30% of half the screen width in both directions.
For instance, if you are using a 80” × 50” screen, you will be able to move the image left or
right by no more than 12” (0.305m).
Range of
horizontal
lens shift
adjustment
Range of
horizontal
lens shift
adjustment
This illustration shows normal
horizontal lens shift without the
use of special specication lens or
projector.
Note: when the lens is in the
neutral position (i.e. without
horizontal or vertical shift),
the center of the projection
should be aligned with the
center of the screen.

Barco RLM W6 Specifications

General

Matrix size	0.67 \
Heat dissipation	2900 BTU/h
Projection distance	- m
Projection technology	DLP
Contrast ratio (dynamic)	3000:1
Contrast ratio (typical)	2200:1
Digital gamma correction	Yes
Screen size compatibility	- \
Projector native resolution	WUXGA (1920x1200)
Aspect ratio	16:10
RS-232 ports	1
Dimensions (WxDxH)	516.7 x 669.74 x 247 mm
Maximum analog resolution	1600 x 1200 pixels
Maximum digital resolution	1920 x 1200 pixels
Focal length range	- mm
Vertical lens shift range	0 - 100 %
Horizontal lens shift range	-30 - 30 %
Lamp power	330 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	1500 h
Service life of light source (economic mode)	2000 h
Noise level	39 dB
Preset modes	sRGB, Standard
Certification	FCC, CE EN55022 Cl. A, CE, TUV, WEEE.
Dot clock scanning frequency	165 MHz
Full HD	No
Analog signal format system	NTSC
Supported graphics resolutions	1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
BNC input ports	5
Serial interface type	RS-232
USB 2.0 ports quantity	0
Ethernet LAN data rates	10, 100 Mbit/s
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	Black
Market positioning	Presentation
Power source	AC
AC input frequency	50 - 60 Hz
Power consumption (standby)	2 W
Power consumption (typical)	850 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Cables included	AC, HDMI-DVI
Remote control type	IR
Sustainability certificates	RoHS

Weight and Dimensions

Depth	669.74 mm
Width	516.7 mm
Height	247 mm
Weight	26000 g
Package weight	30000 g
