Connecting the projector to other devices

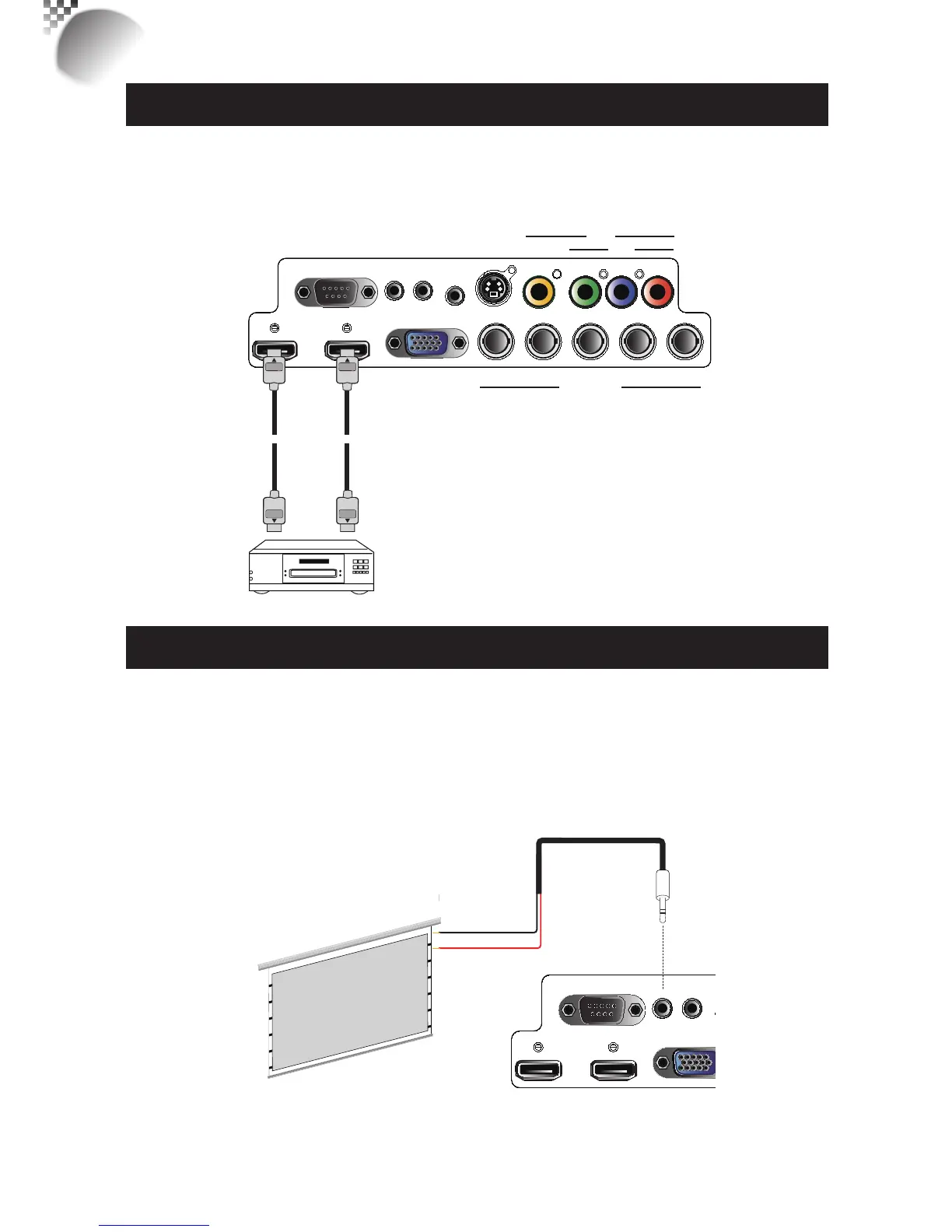

HDMI / DVI connection
Signals from image source offer the best projection image quality when sent through HDMI.
Therefore, try to use input devices with HDMI output as the source of image.
S-VIDEO VIDEO
YUV 1
RGB-S
RGBHV / YUV 2
G/Y B/Pb R/Pr H V
RS-232
12V TRIGGER
IR ext.
RGB-HV/SOG
HDMI
HDMI
I II
350mA
HDMI/DVI input source
(BD/HD-DVD/DVD player, HD set-top-box,
gaming consoles and so forth)
12V Trigger connection
If your home theatre system includes a projector screen, screen cover or other 12V Trigger
equipment,
please connect such device/equipment to the projector's 12V Trigger output as illustrated.
After you have done so,
Your screen will lower automatically whenever you turn on your projector for your
convenience.
Tip = +12V
Sleeve = Ground
