Projector parts and functions

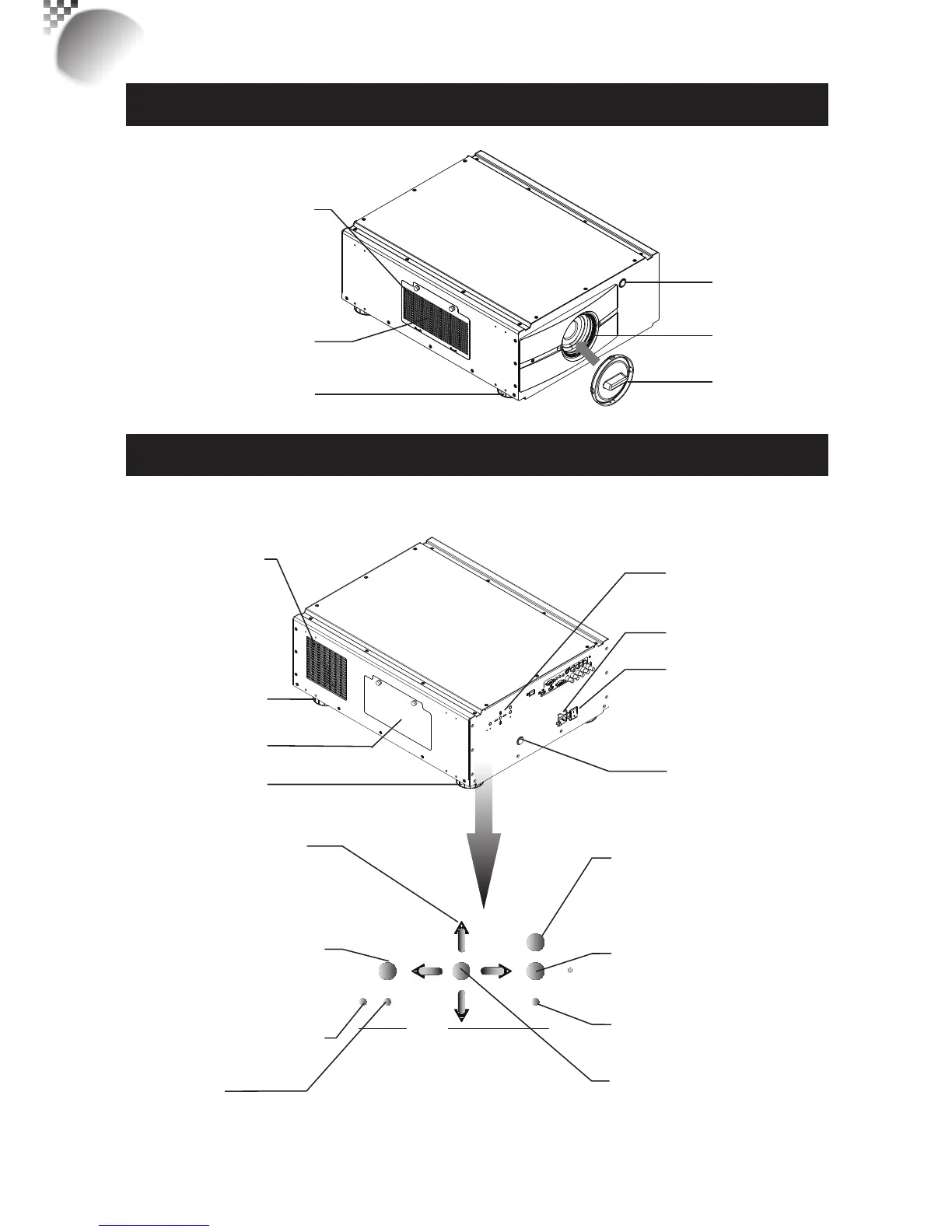

Front view
Lens
cover
Lens
Infrared
receiver
Adjustable foot
Adjust the height and angle
of the projector with the
adjustable foot
Adjustable foot
Ventilation inlet
The internal cooling fan draws
cool air from the ventilation
inlet into the projector.
Rear view
STBY
STAND BY
INPUT
ENTER
ERROR
MENU
ON
LED STATUS
INPUT
Used to toggle between different
input signal source
Refer to Chapter VI

Signal
Source Selection for more details
STAND BY
The indicator that shows the
projector's standby status.
ERROR
Displays the cause of problem
(i.e. temperature, fan, lamp
or system) that has led to
projector malfunction.
▲▼
▼ ▲
bottons
Use these buttons to scroll,
congure or adjust items on
the OSD or toggle between
different images.
MENU
Displays or hides the OSD
adjustment screen
POWER
Displays the projector's power
status
ENTER
Press this button to conrm
selection of OSD item; you can
choose from "Select Item" or
access "Sub Menu" congurations.
STBY
Use this button to start up or shut
down the projector .
Ventilation
slot
The hot air generated
inside the projector is
dispersed through the
ventilation slot. Make
sure the ventilation
slot is free from
obstruction.
A d j u s t a b l e
foot
A d j u s t a b l e
foot
Lamp cover
Infrared
sensor
Power
inlet
P r o j e c t o r
buttons
Power
switch
I

ON
O

OFF
2

Barco RLM W6 Specifications

General

Matrix size	0.67 \
Heat dissipation	2900 BTU/h
Projection distance	- m
Projection technology	DLP
Contrast ratio (dynamic)	3000:1
Contrast ratio (typical)	2200:1
Digital gamma correction	Yes
Screen size compatibility	- \
Projector native resolution	WUXGA (1920x1200)
Aspect ratio	16:10
RS-232 ports	1
Dimensions (WxDxH)	516.7 x 669.74 x 247 mm
Maximum analog resolution	1600 x 1200 pixels
Maximum digital resolution	1920 x 1200 pixels
Focal length range	- mm
Vertical lens shift range	0 - 100 %
Horizontal lens shift range	-30 - 30 %
Lamp power	330 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	1500 h
Service life of light source (economic mode)	2000 h
Noise level	39 dB
Preset modes	sRGB, Standard
Certification	FCC, CE EN55022 Cl. A, CE, TUV, WEEE.
Dot clock scanning frequency	165 MHz
Full HD	No
Analog signal format system	NTSC
Supported graphics resolutions	1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
BNC input ports	5
Serial interface type	RS-232
USB 2.0 ports quantity	0
Ethernet LAN data rates	10, 100 Mbit/s
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	Black
Market positioning	Presentation
Power source	AC
AC input frequency	50 - 60 Hz
Power consumption (standby)	2 W
Power consumption (typical)	850 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Cables included	AC, HDMI-DVI
Remote control type	IR
Sustainability certificates	RoHS

Weight and Dimensions

Depth	669.74 mm
Width	516.7 mm
Height	247 mm
Weight	26000 g
Package weight	30000 g
