Barco RLM W6 User Manual

27

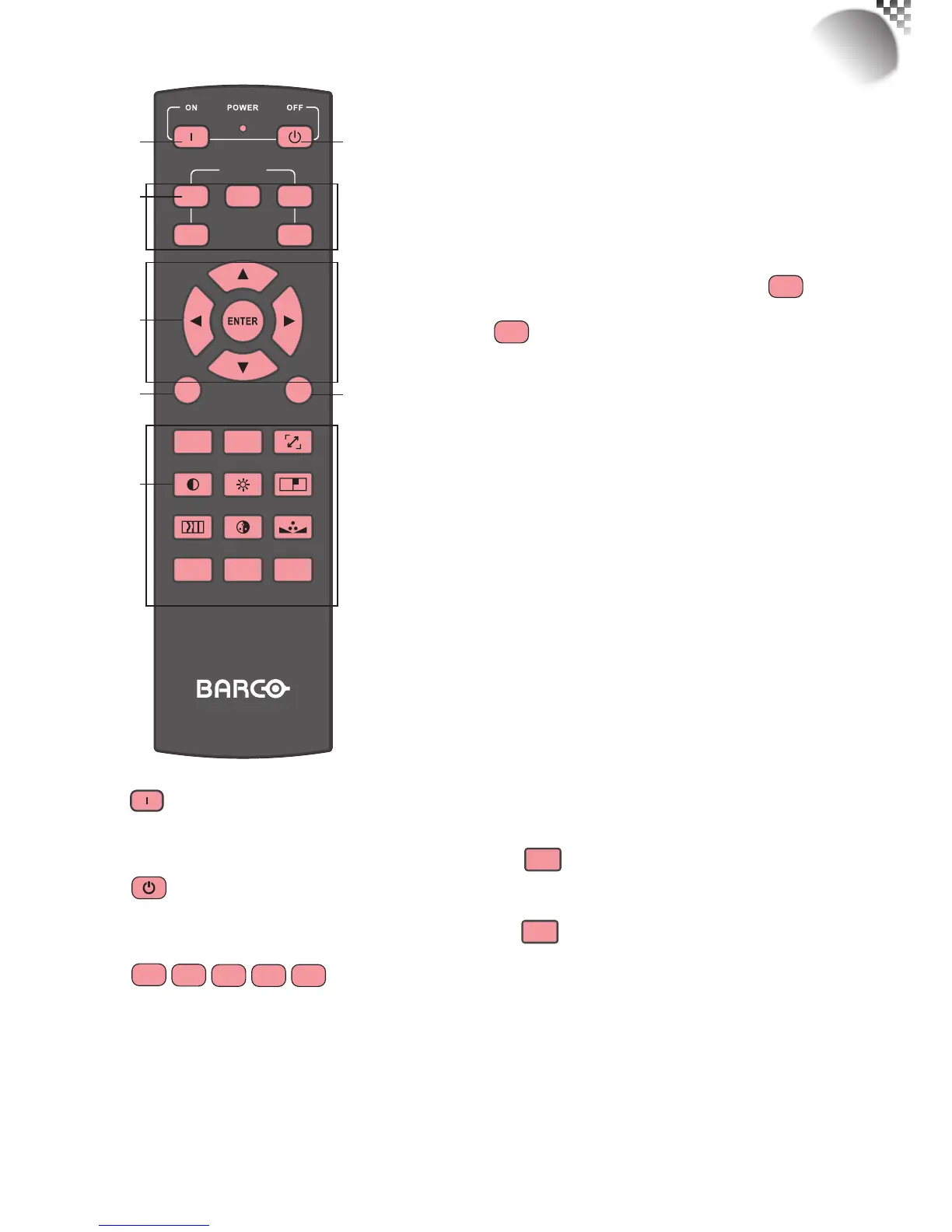

Using the remote control
5
1
3
2
4
1
5
INPUT
ASPECT
RATIO
AUTO IMAGE
PAUSE TEXT
MENU
SHARPN
PHASE COLOR TINT
ADDRESSSWAPPIP
1
3
4
6
7
2
5
1. ON
This button is used to turn on the
projector.
2. OFF
This button is used to turn off the
projector.
3.
1
2
3
4 5
These buttons on the remote control are
the hotkeys for different image source.
By factory default, these are:
1 = HDMI 1
2 = RGB D-15
3 = RGBHV/YUV2
4 = YUV1
5 = Composite Video
You can congure the input source that
corresponds to each button in the OSD
Menu. To do so:
When press MENU > CONTROL > Button 1~5;
use the ▼▲ buttons to choose from diffferent
sources of input. You can choose from: HDMI
1,HDMI 2,RGB D-15,YUV 1,RGBHV/YUV
2,Composite Video,S-Video and RGB-S.
For example, if you have configured
1
as
RGB D-15 in the OSD Menu, when you press
1
on the remote control, the projector will
display the image from RGB D-15.
4. ▼▲
▲
▲
Use these buttons to make your
selection or congure, adjust
conguration or toggle between image
displays.
ENTER
Use this button to select items in the menu
or conrm the settings you have changed.
When press ENTER , You also recall
LENS ADJUST when menu is off.
5. ASPECT RATIO
You can scroll through different aspect
ratios by pressing this button repeatedly.
For more information, refer to Chapter VI
(OSD Menu  Aspect Ratio).
6. MENU
Press this button to show or hide the
OSD Menu.
Various image adjustment buttons
PAUSE
PAUSE
Use this button to halt projection
temporarily.
TEXT
TEXT
When TEXT is set to ON, the
user will be able to operate the
OSD Menu normally.
When TEXT is set to OFF, only
ON, OFF, 1~5, SWAP, PIP,
PAUSE will function normally;
pressing any other buttons will
not access the OSD Menu.

Barco RLM W6 Specifications

General

Matrix size	0.67 \
Heat dissipation	2900 BTU/h
Projection distance	- m
Projection technology	DLP
Contrast ratio (dynamic)	3000:1
Contrast ratio (typical)	2200:1
Digital gamma correction	Yes
Screen size compatibility	- \
Projector native resolution	WUXGA (1920x1200)
Aspect ratio	16:10
RS-232 ports	1
Dimensions (WxDxH)	516.7 x 669.74 x 247 mm
Maximum analog resolution	1600 x 1200 pixels
Maximum digital resolution	1920 x 1200 pixels
Focal length range	- mm
Vertical lens shift range	0 - 100 %
Horizontal lens shift range	-30 - 30 %
Lamp power	330 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	1500 h
Service life of light source (economic mode)	2000 h
Noise level	39 dB
Preset modes	sRGB, Standard
Certification	FCC, CE EN55022 Cl. A, CE, TUV, WEEE.
Dot clock scanning frequency	165 MHz
Full HD	No
Analog signal format system	NTSC
Supported graphics resolutions	1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
BNC input ports	5
Serial interface type	RS-232
USB 2.0 ports quantity	0
Ethernet LAN data rates	10, 100 Mbit/s
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	Black
Market positioning	Presentation
Power source	AC
AC input frequency	50 - 60 Hz
Power consumption (standby)	2 W
Power consumption (typical)	850 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Cables included	AC, HDMI-DVI
Remote control type	IR
Sustainability certificates	RoHS

Weight and Dimensions

Depth	669.74 mm
Width	516.7 mm
Height	247 mm
Weight	26000 g
Package weight	30000 g
