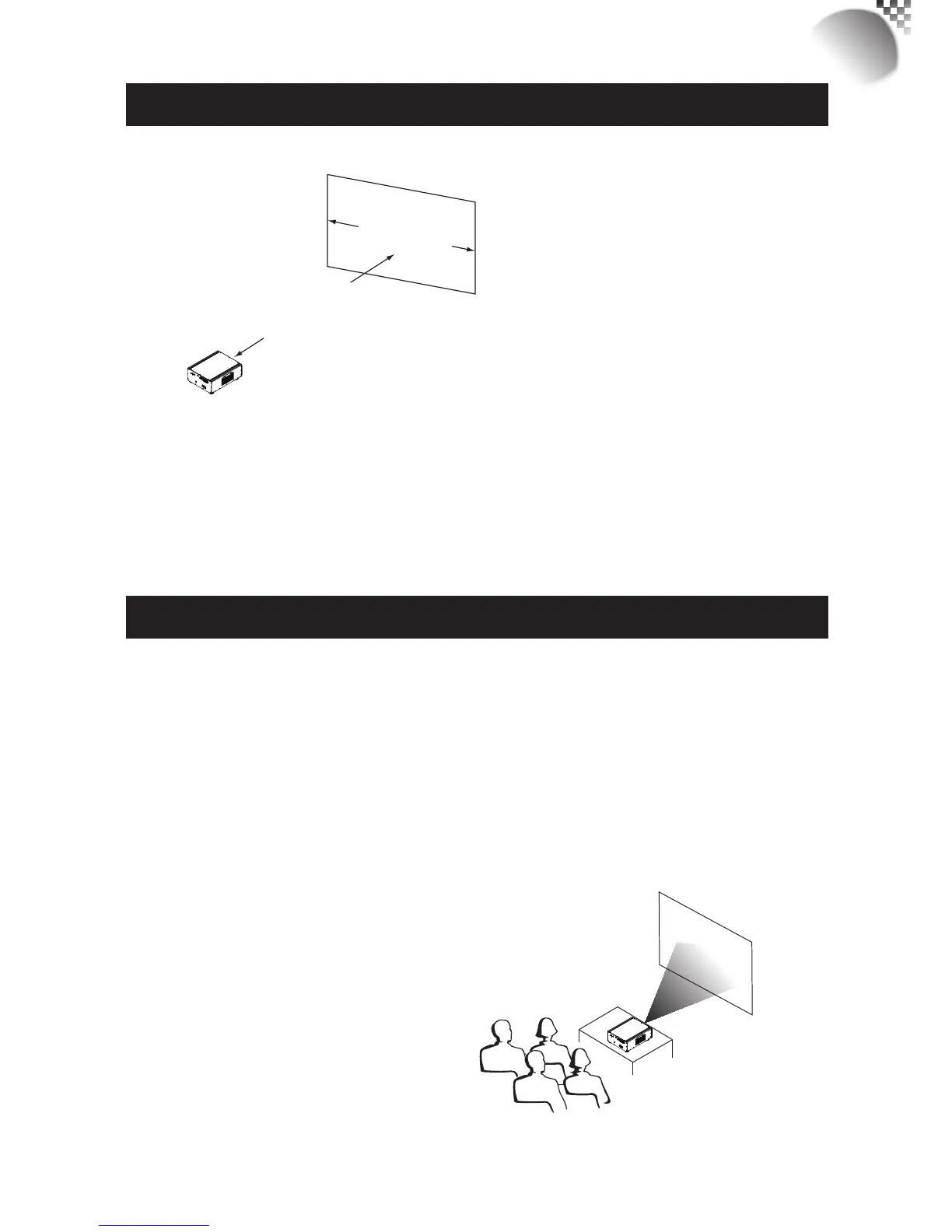

Throw distance
Throw Distance (TD) = Screen Width (W) x Throw Ratio (TR)
Screen Width (W)
Throw Distance (TD)
Coupled with the available projection lenses, the projector offers the following throw ratios:
•
R9832740-RLD Lens (0.77 : 1)
•
R9832741-RLD Lens (1.16 : 1)
•
R9832742-RLD Lens (1.45 - 1.74: 1)
•
R9832743-RLD Lens (1.74 - 2.17: 1)
•
R9832744-RLD Lens (2.17 - 2.90: 1)
•
R9832745-RLD Lens (2.90 - 4.34: 1)
•
R9832746-RLD Lens (4.34 - 6.76: 1)
Note:
Projection lenses are optional
accessories. Please contact
your local dealer to acquire the
projection lens that suits your
need most.
Modes of installation
•
Install the projector in an environment below 35°C (95°F). The projector should be kept
clear from sources of heat and / or ventilation openings of air conditioner.
•
The projector should be kept away from devices that emit electromagnetic energy, such
as motor and transformer.Common devices that emit electromagnetic energy include
slideshow system, speakers, power amplifiers and elevators.
•
If you choose to install the projector on the ceiling, be sure to use the ceiling installation
components manufactured by manufacturer-certified vendors. For details, please contact
your local dealer.
Frontal projection - desktop installaion
Advantages: easy to install can be easily
moved or adjusted easy to
operate.
Disadvantage: occupies floor space and limits
seating capacity.
