Barco RLM W6 User Manual

33
Auto Image Adjust
You can configure the Auto Image Adjust function to one of the following three modes:
•
Off =NEVER
•
Auto =When not done before(or when done first time)
•
Always =When new source selected or new source connected.
For more information on Auto Image Adjust, refer to Chapter VI


Auto Image.

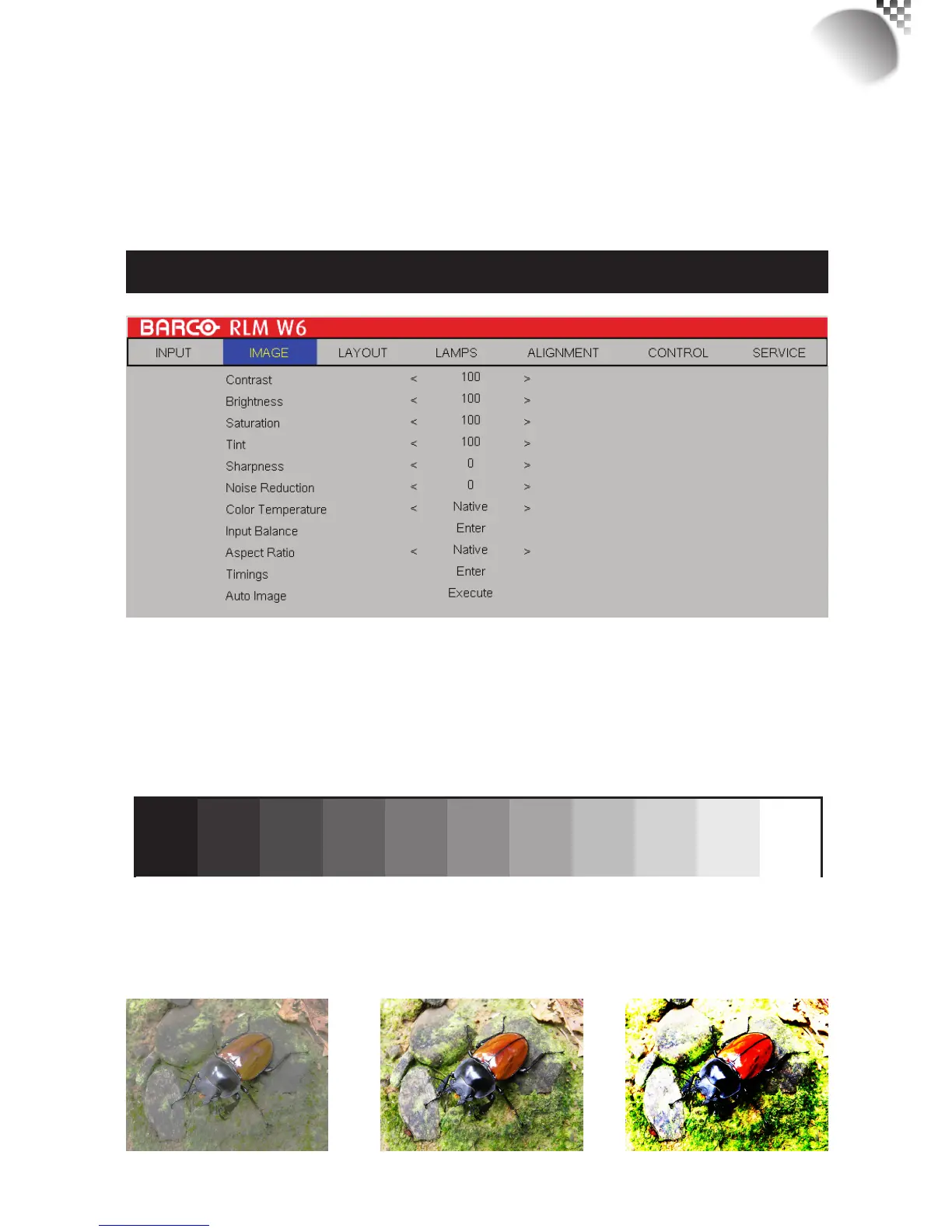

Contrast
Use  to adjust the contrast of the projected image.You can connect the projector to an
external image source to display an image resembling the one shown below for adjustment.
It is recommended that you adjust the projected image according to the results shown below
so that the brightness of the spectrum remains constant throughout and achieve maximum
contrast between black and white.
The following image illustrates the results of direct contrast adjustment using a random
image:
 Lowered contrast
Enhanced contrast Original image
6
OSD Menu description

Barco RLM W6 Specifications

General

Matrix size	0.67 \
Heat dissipation	2900 BTU/h
Projection distance	- m
Projection technology	DLP
Contrast ratio (dynamic)	3000:1
Contrast ratio (typical)	2200:1
Digital gamma correction	Yes
Screen size compatibility	- \
Projector native resolution	WUXGA (1920x1200)
Aspect ratio	16:10
RS-232 ports	1
Dimensions (WxDxH)	516.7 x 669.74 x 247 mm
Maximum analog resolution	1600 x 1200 pixels
Maximum digital resolution	1920 x 1200 pixels
Focal length range	- mm
Vertical lens shift range	0 - 100 %
Horizontal lens shift range	-30 - 30 %
Lamp power	330 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	1500 h
Service life of light source (economic mode)	2000 h
Noise level	39 dB
Preset modes	sRGB, Standard
Certification	FCC, CE EN55022 Cl. A, CE, TUV, WEEE.
Dot clock scanning frequency	165 MHz
Full HD	No
Analog signal format system	NTSC
Supported graphics resolutions	1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
BNC input ports	5
Serial interface type	RS-232
USB 2.0 ports quantity	0
Ethernet LAN data rates	10, 100 Mbit/s
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	Black
Market positioning	Presentation
Power source	AC
AC input frequency	50 - 60 Hz
Power consumption (standby)	2 W
Power consumption (typical)	850 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Cables included	AC, HDMI-DVI
Remote control type	IR
Sustainability certificates	RoHS

Weight and Dimensions

Depth	669.74 mm
Width	516.7 mm
Height	247 mm
Weight	26000 g
Package weight	30000 g
