Barco RLM W6 User Manual

44

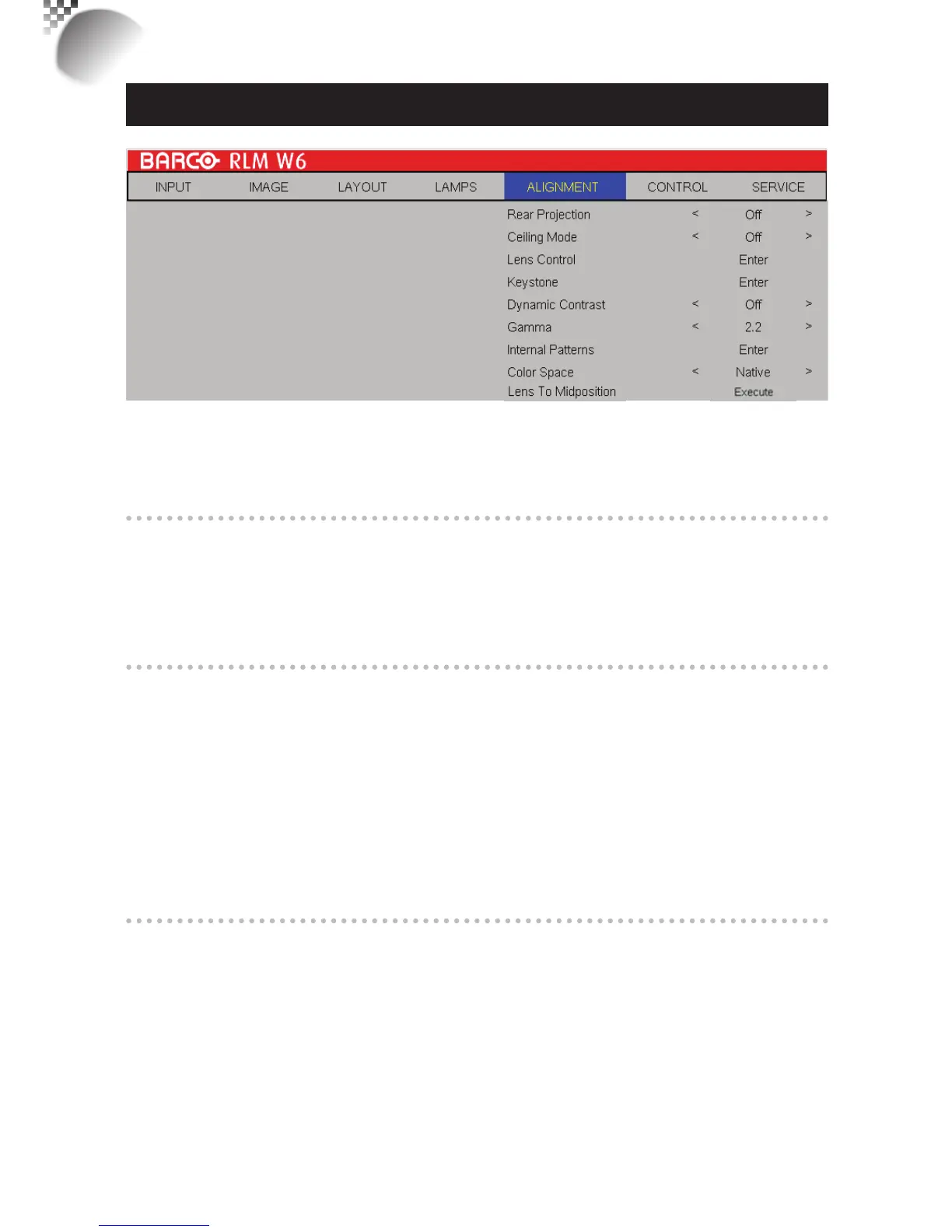

ALIGNMENT
Rear Projection
The default setting is Off.
Whenyou have set up the projector for rear projection, please set it to ON. For more
information on different modes of projection, refer to Chapter IV _ Projector installation.
Ceiling Mode
The default setting is Off.
Whenyou have set up the projector for ceilingmode (hung from the ceiling in reverse), please
set it to ON.For more information on different modes of projection, refer to Chapter IV _
Projector installation.
Lens Control
•
Zoom
This function is identical to the one covered in previous sections. Refer to Chapter III 
Installing the projector  Adjusting focus for more information.
•
Focus
This function is identical to the one covered in previous sections. Refer to Chapter III 
Installing the projector  Adjusting focus for more information.
•
Shift
This function is identical to the one covered in previous sections. Refer to Chapter III
 Installing the projector  Adjusting the lens' horizontal and vertical shift for more
information.
Keystone
Use this function to correct keystoning caused by projection angle.
•
Horizontal Keystone
This function is identical to the one covered in previous sections. Refer to Chapter III 
Installing the projector  Correcting horizontal keystoning caused by projection angle for
more information.
•
Vertical Keystone
This function is identical to the one covered in previous sections. Refer to Chapter III 
Installing the projector  Correcting vertical keystoning caused by projection angle for
more information.
* The summation of the absolute value of horizontal keystone and vertical keystone is limited to less
than or equal to 350. *
6
OSD Menu description

Barco RLM W6 Specifications

General

Matrix size	0.67 \
Heat dissipation	2900 BTU/h
Projection distance	- m
Projection technology	DLP
Contrast ratio (dynamic)	3000:1
Contrast ratio (typical)	2200:1
Digital gamma correction	Yes
Screen size compatibility	- \
Projector native resolution	WUXGA (1920x1200)
Aspect ratio	16:10
RS-232 ports	1
Dimensions (WxDxH)	516.7 x 669.74 x 247 mm
Maximum analog resolution	1600 x 1200 pixels
Maximum digital resolution	1920 x 1200 pixels
Focal length range	- mm
Vertical lens shift range	0 - 100 %
Horizontal lens shift range	-30 - 30 %
Lamp power	330 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	1500 h
Service life of light source (economic mode)	2000 h
Noise level	39 dB
Preset modes	sRGB, Standard
Certification	FCC, CE EN55022 Cl. A, CE, TUV, WEEE.
Dot clock scanning frequency	165 MHz
Full HD	No
Analog signal format system	NTSC
Supported graphics resolutions	1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
BNC input ports	5
Serial interface type	RS-232
USB 2.0 ports quantity	0
Ethernet LAN data rates	10, 100 Mbit/s
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	Black
Market positioning	Presentation
Power source	AC
AC input frequency	50 - 60 Hz
Power consumption (standby)	2 W
Power consumption (typical)	850 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Cables included	AC, HDMI-DVI
Remote control type	IR
Sustainability certificates	RoHS

Weight and Dimensions

Depth	669.74 mm
Width	516.7 mm
Height	247 mm
Weight	26000 g
Package weight	30000 g
