Barco RLM W6 User Manual

16
b. Press the MENU button on the remote control and choose Alignment  Lens
Control; then use the ▼▲ buttons to adjust the size of the image that is projected
onto the screen.

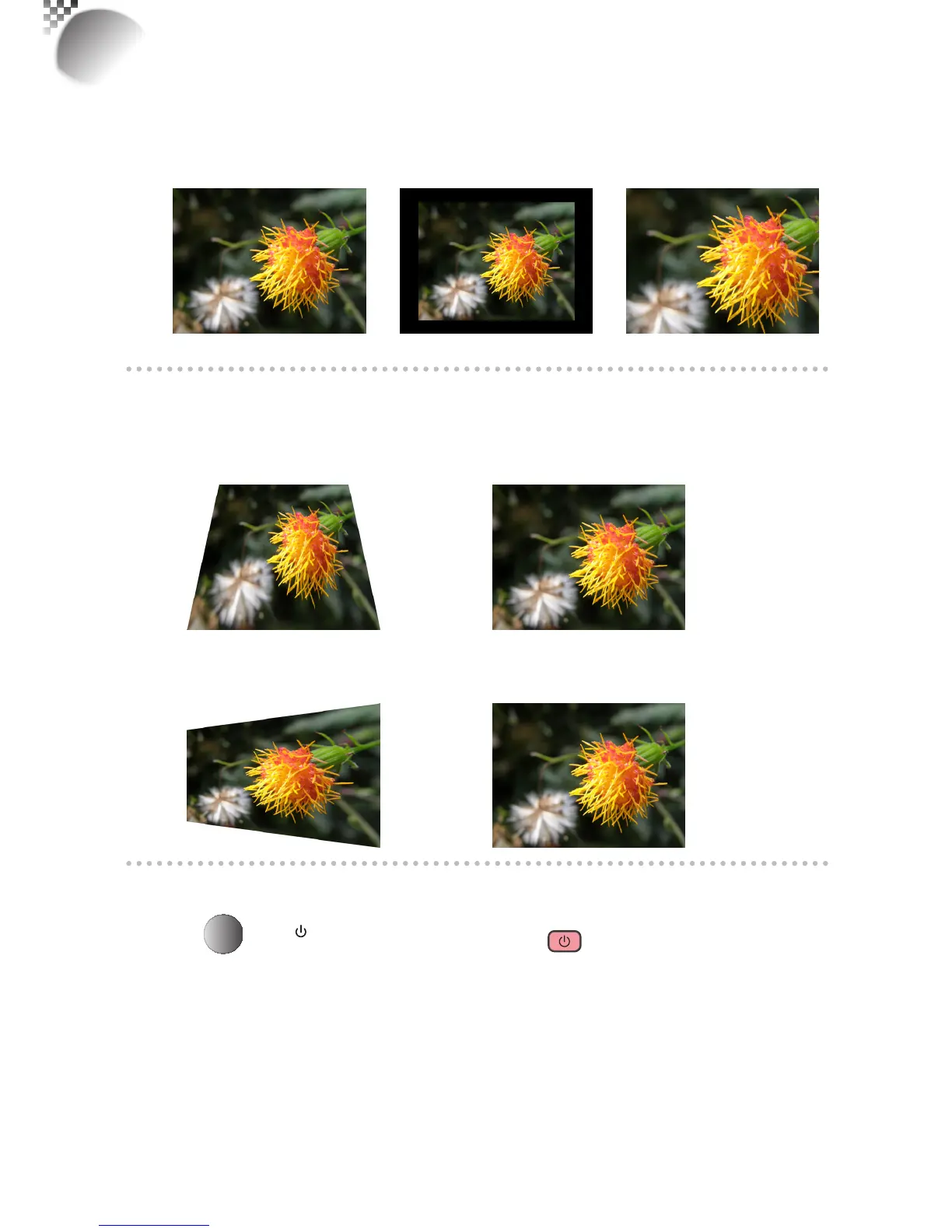

Original image size
Zoom out Zoom in
7. Correcting keystoning caused by projection angle
a. To adjust horizontal keystoning, press the MENU button on the remote control and
choose ALIGNMENT  Keystone  Horizontal Keystone and use the buttons to
▲ ▼
adjust the image.

b. To adjust vertical keystoning, press the MENU button on the remote control and
choose ALIGNMENT  Keystone  Verticall Keystone and use the ▼▲ buttons to
adjust the image.

8. Turning off the projector
Press the
STBY
button on the projector or the button on the remote control to
turn off the projector. When the projector has been turned off, the cooling fan will remain in
operation for approximately 90 seconds.
3
Quick installation of the projector

Barco RLM W6 Specifications

General

Matrix size	0.67 \
Heat dissipation	2900 BTU/h
Projection distance	- m
Projection technology	DLP
Contrast ratio (dynamic)	3000:1
Contrast ratio (typical)	2200:1
Digital gamma correction	Yes
Screen size compatibility	- \
Projector native resolution	WUXGA (1920x1200)
Aspect ratio	16:10
RS-232 ports	1
Dimensions (WxDxH)	516.7 x 669.74 x 247 mm
Maximum analog resolution	1600 x 1200 pixels
Maximum digital resolution	1920 x 1200 pixels
Focal length range	- mm
Vertical lens shift range	0 - 100 %
Horizontal lens shift range	-30 - 30 %
Lamp power	330 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	1500 h
Service life of light source (economic mode)	2000 h
Noise level	39 dB
Preset modes	sRGB, Standard
Certification	FCC, CE EN55022 Cl. A, CE, TUV, WEEE.
Dot clock scanning frequency	165 MHz
Full HD	No
Analog signal format system	NTSC
Supported graphics resolutions	1600 x 1200 (UXGA), 1920 x 1200 (WUXGA)
BNC input ports	5
Serial interface type	RS-232
USB 2.0 ports quantity	0
Ethernet LAN data rates	10, 100 Mbit/s
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	Black
Market positioning	Presentation
Power source	AC
AC input frequency	50 - 60 Hz
Power consumption (standby)	2 W
Power consumption (typical)	850 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Cables included	AC, HDMI-DVI
Remote control type	IR
Sustainability certificates	RoHS

Weight and Dimensions

Depth	669.74 mm
Width	516.7 mm
Height	247 mm
Weight	26000 g
Package weight	30000 g
