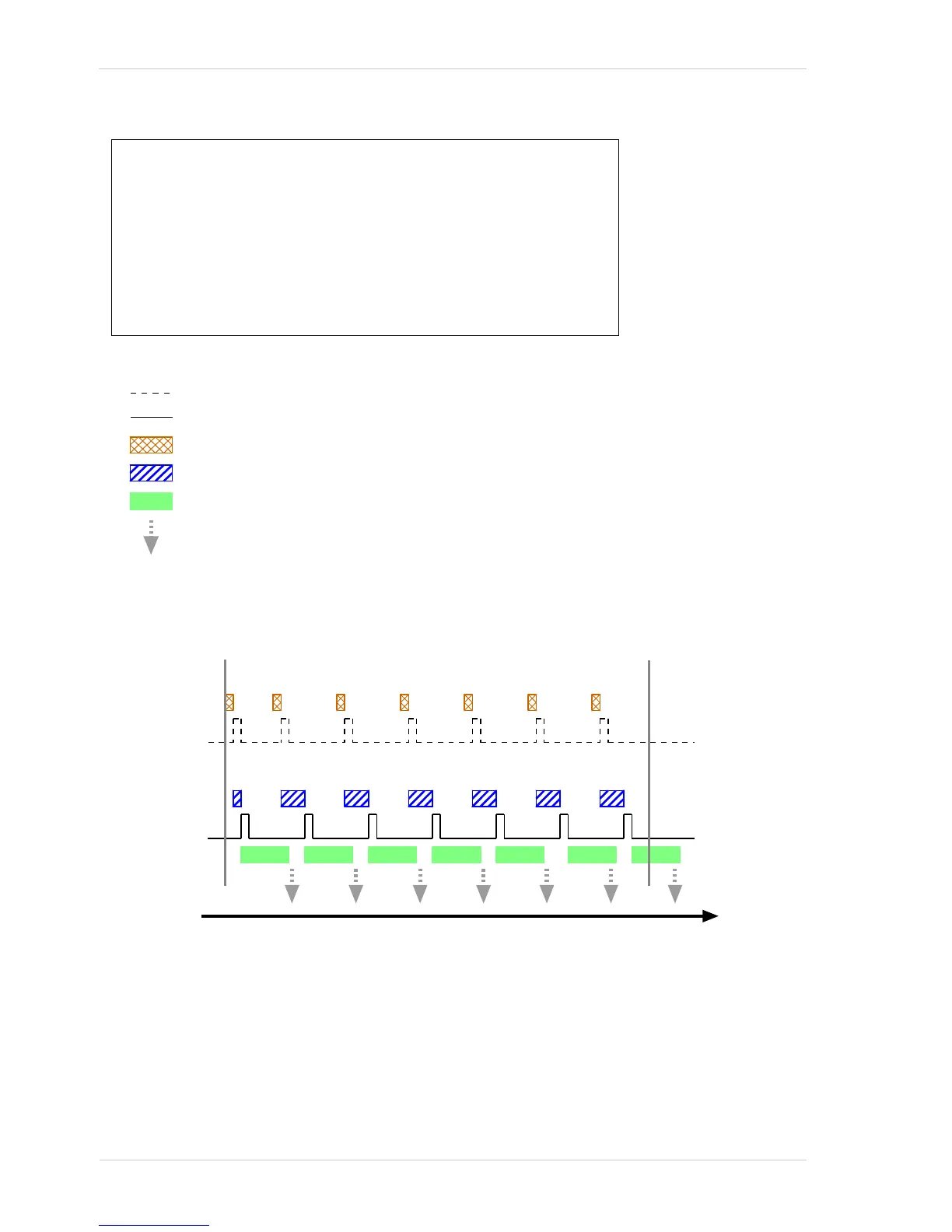

Fig. 57: Use Case 2 - Acquisition Start Trigger Off and Frame Start Trigger On
Use Case: Acquisition Start Trigger Off and Frame Start Trigger On
The acquisition start trigger is off. The camera will generate acquisition
start trigger signals internally with no action by the user.
The frame start trigger is on, and the frame start trigger source is set to
input line 1. The user must apply a frame start trigger signal to input line 1
to start each frame exposure.
Settings: Acquisition Mode = Continuous
Trigger Mode for the acquisition start trigger = Off
Trigger Mode for the frame start trigger = On
Trigger Source for the frame start trigger = Line 1
Trigger Activation for the frame start trigger = Rising Edge
Time
Acquisition Start
Trigger Signal
Frame Start
Trigger Signal
(applied to line 1)
= a trigger signal generated by the camera internally
= a trigger signal applied by the user
= camera is waiting for an acquisition start trigger signal
= frame exposure and readout
= camera is waiting for a frame start trigger signal
= frame transmission
Acquisition
Start
Command
Executed
Acquisition
Stop
Command
Executed
