7.7.3 Output Line Response Time
Response times for the output lines on the camera are as defined below.

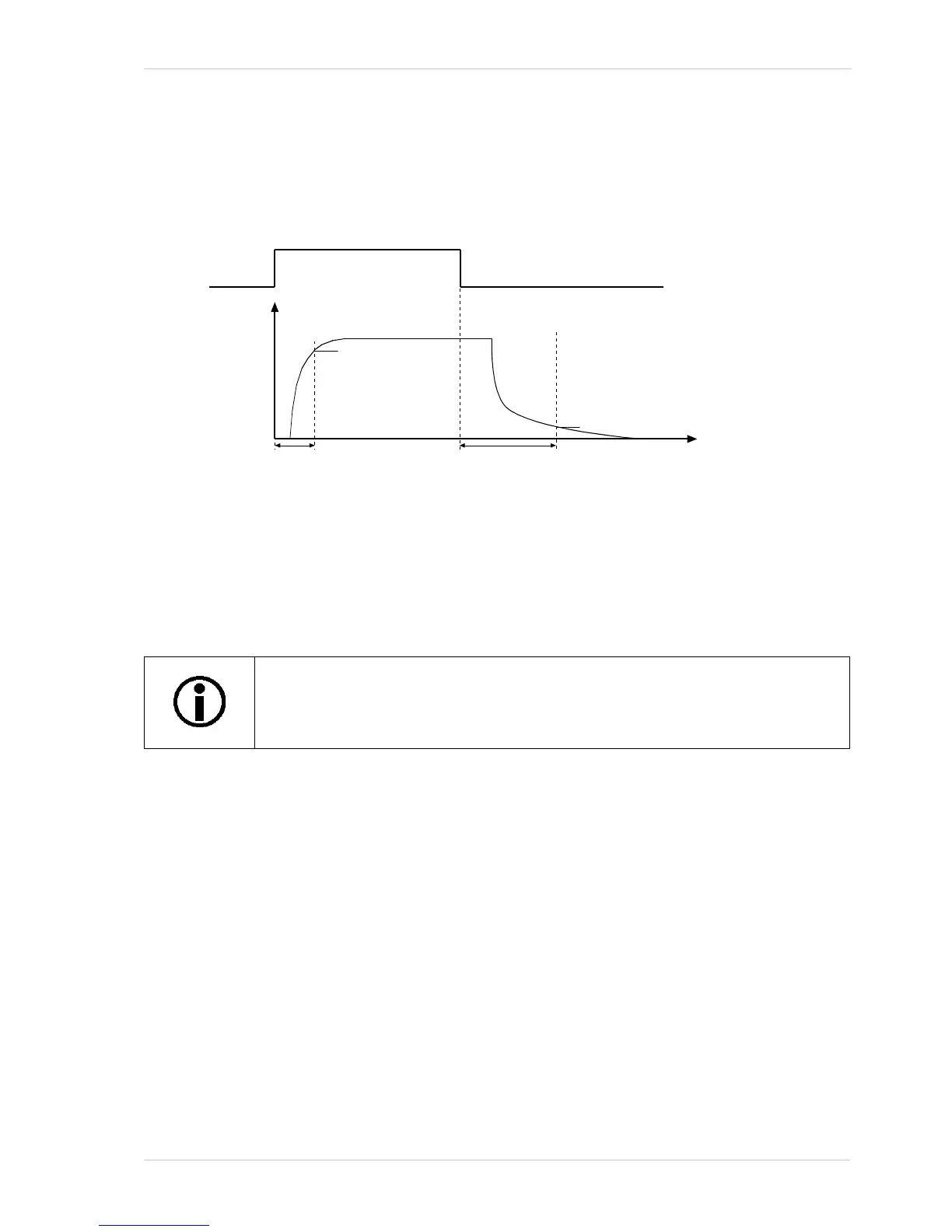

Fig. 41: Output Line Response Times
t
on90
: Time (µs) from switching on the signal until the voltage has reached 90 % of its final level.
t
off10
: Time (µs) from switching off the signal until the voltage has dropped to 10 % of its original
level.
As an example, t
on90
and t
off10
were measured for a specific camera, for load currents of 5 mA and
50 mA, and voltages between 3.3 V and 24 V. The results are shown on the figure below.
The response time values for the output lines on your camera will depend on the
load current and the applied voltage of your specific application. In addition, the
exact values can vary between individual cameras.
Camera
Output
Signal
Output
Line
Voltage
Time
t
on90
t
off10
10%
90%
