Basler scout GigE User Manual

Image Acquisition Control AW00011916000
150 Basler scout GigE

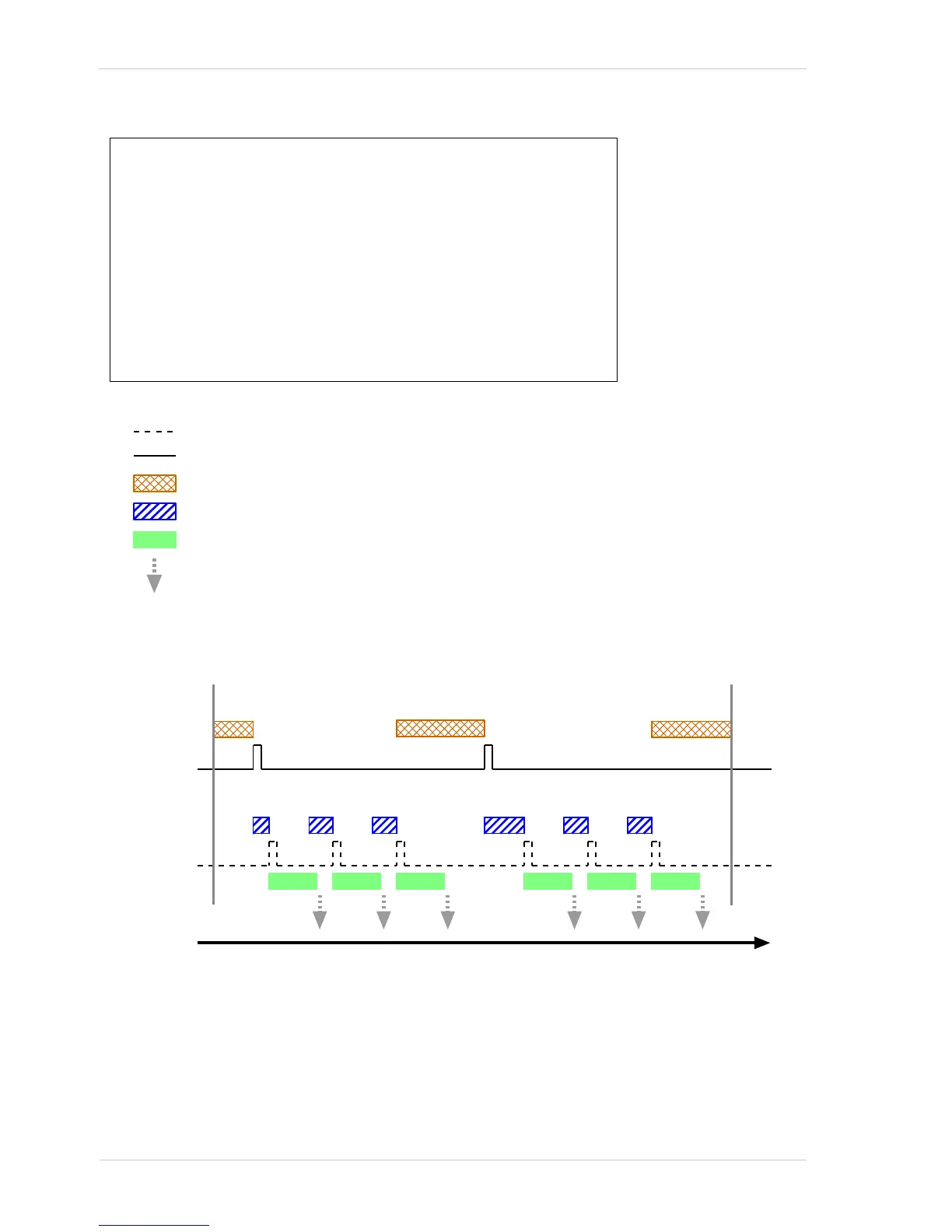

Fig. 58: Use Case 3 - Acquisition Start Trigger On and Frame Start Trigger Off
Use Case: Acquisition Start Trigger On and Frame Start Trigger Off
The acquisition start trigger is on, and the acquisition start trigger source is
set to input line 1. The user must apply an acquisition start trigger signal to
input line 1 to make the camera exit the "waiting for acquisition start
trigger" acquisition status. Because the acquisition frame count is set to 3,
the camera will re-enter the "waiting for acquisition start trigger" acquisition
status after 3 frames have been acquired.
The frame start trigger is off. The camera will generate frame start trigger
signals internally with no action by the user.
Settings: Acquisition Mode = Continuous
Trigger Mode for the acquisition start trigger = On
Trigger Source for the acquisition start trigger = Line 1
Trigger Activation for the acquisition start trigger = Rising Edge
Acquisition Frame Count = 3
Trigger Mode for the frame start trigger = Off
Time
Acquisition Start
Trigger Signal
(applied to line 1)
Frame Start
Trigger Signal
= a trigger signal generated by the camera internally
= a trigger signal applied by the user
= camera is waiting for an acquisition start trigger signal
= camera is waiting for a frame start trigger signal
= frame exposure and readout
= frame transmission
Acquisition
Start
Command
Executed
Acquisition
Stop
Command
Executed
