Basler scout GigE User Manual

AW00011916000 Standard Features
Basler scout GigE 255

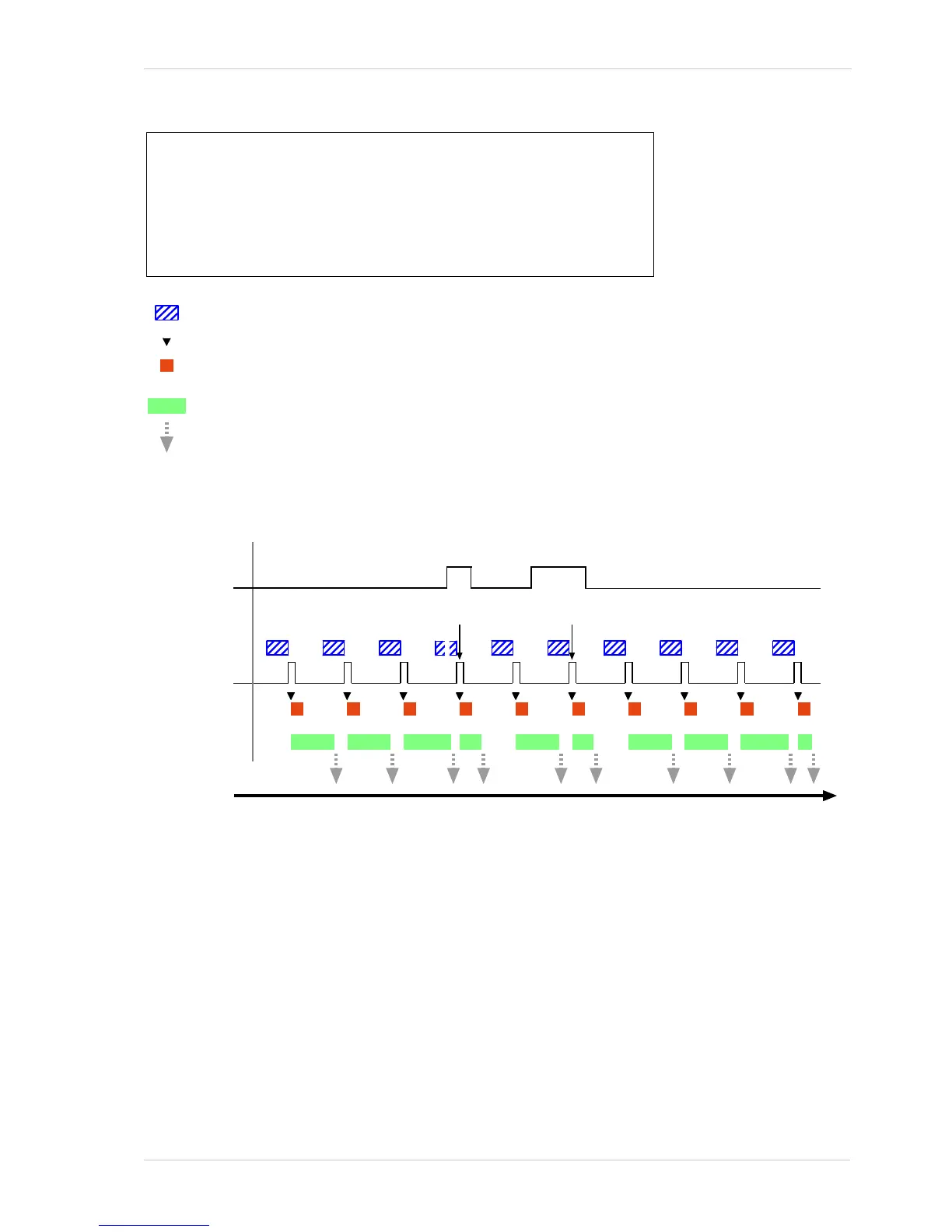

Fig. 76: Sequencer in Controlled Sequence Advance Mode with Always Active as the Sequence Control Source and
Synchronous Restart Controlled by Line 1
21 3 00 1 1 42 3
0
Use Case: Operation in controlled sequence advance mode with Always Active as the
sequence control source:
Automatic cycling through the sequence set cycles with two synchronous
restarts controlled by input line 1.
Setting: Sequence Set Total Number = 6
Line 1 (not set for invert) is selected as the source for controlling
restart
Signal Applied
to Input Line 1
(Restart)
= frame exposure and readout
= frame transmission
= camera is waiting for a frame start trigger
= camera selects a sequence set as the current sequence set
= current sequence set that is used for the image acquisition
(the sequence set index number is indicated)
Time
Frame Start
Trigger Signal
Sequencer
Enabled
Sequence Set Cycle
Starts Again
Sequence Set Cycle
Starts Again
