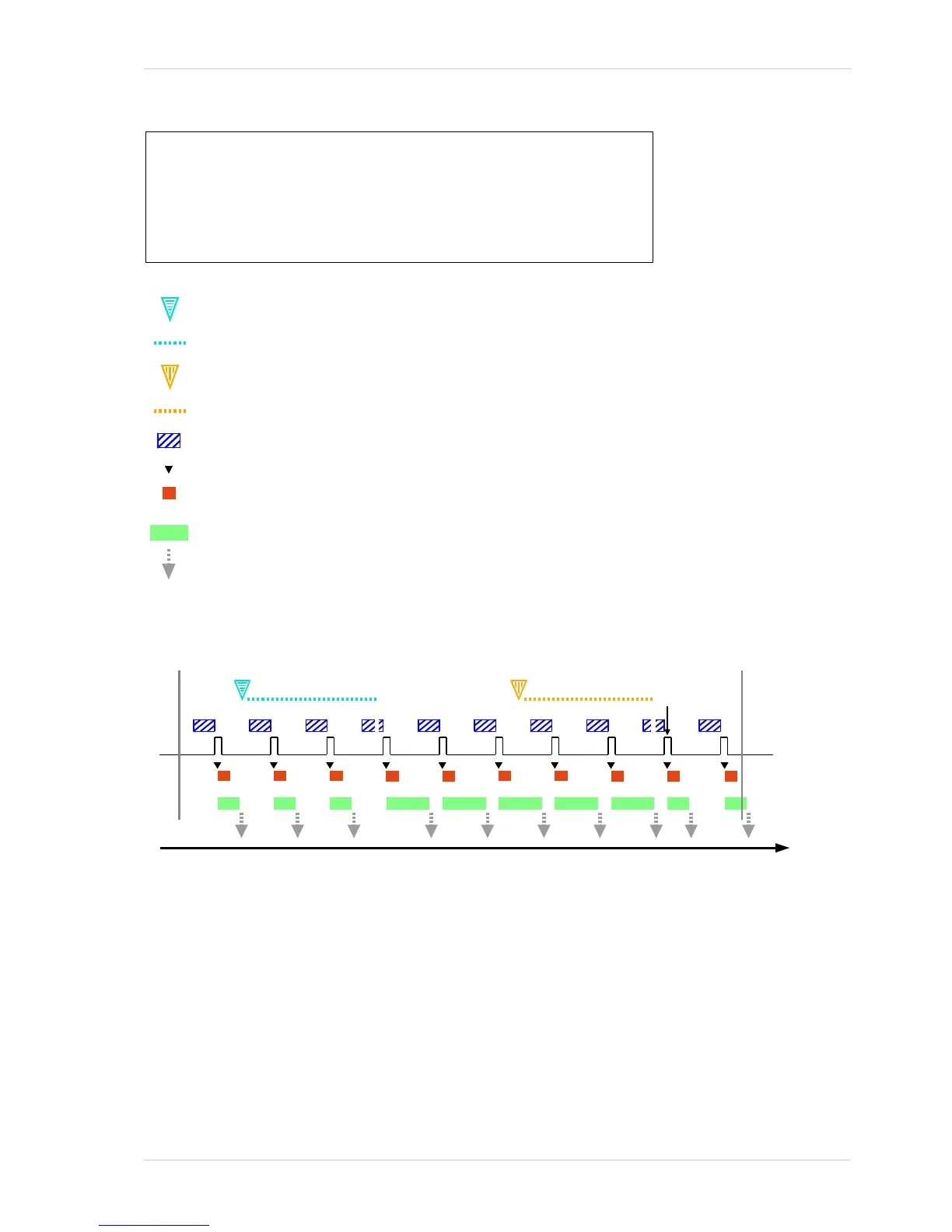

Fig. 79: Sequencer in Controlled Sequence Advance Mode with Disabled as the Sequence Control Source and
Asynchronous Advance and Restart
0
10 0 0
1 1
1
1 0 0
Time
= camera selects a sequence set as the current sequence set
= frame exposure and readout
= frame transmission
Sequencer
Enabled
= current sequence set that is used for the image acquisition
(the sequence set index number is indicated)
Sequencer
Disabled
Use Case: Operation in controlled sequence advance mode with Disabled sequence
control source:
Cycling through the sequence set cycles only due to one asynchronous
advance and one asynchronous restart. Enabling and disabling of the
sequencer feature.
Setting: Sequence Set Total Number = 6
= asynchronous advance (AsyncAdvance command)
= camera is waiting for a frame start trigger
= delay between sending the advance command and it becoming effective
= asynchronous restart (AsyncRestart command)
= delay between sending the restart command and it becoming effective
Sequence
Set Cycle
Starts Again
