Camera housings are equipped with four mounting holes on the top and four mounting holes on the
bottom as shown in the drawings.

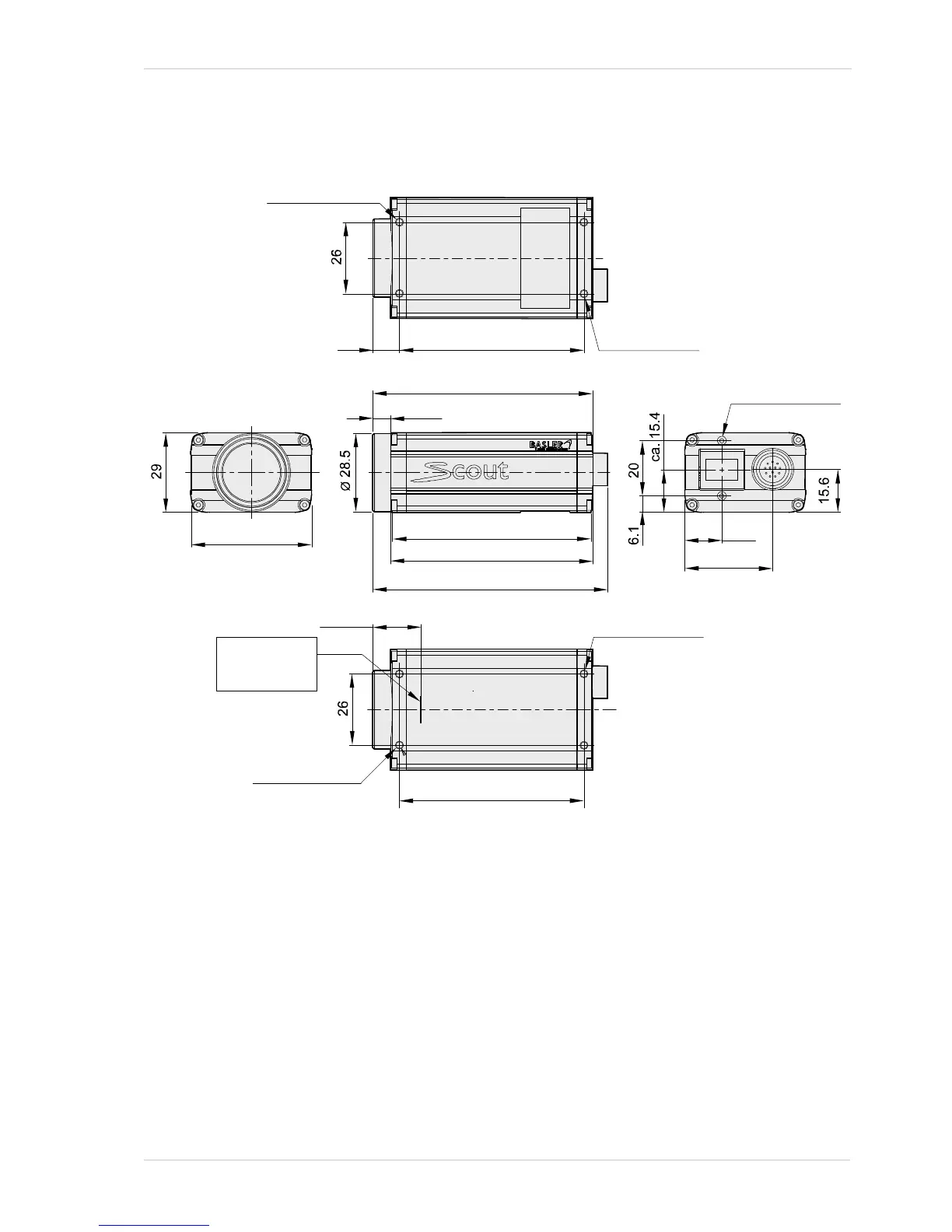

Fig. 21: Mechanical Dimensions (in mm) for Cameras with the Standard C-mount Lens Adapter
Bottom
67.2
2x M3; 4 deep
9.7
2x M3; 4.5 deep
85.5
73.7
72.3
80.15
6.45
44
Top
Photosensitive
surface of the
sensor
17.5
67.2
2x M3; 3.5 deep
2x M3; 4.5 deep
13.5
32
2x M2; 4.5 deep
