Specifications, Requirements, and Precautions AW00011916000
28 Basler scout GigE
(in mm unless otherwise noted)

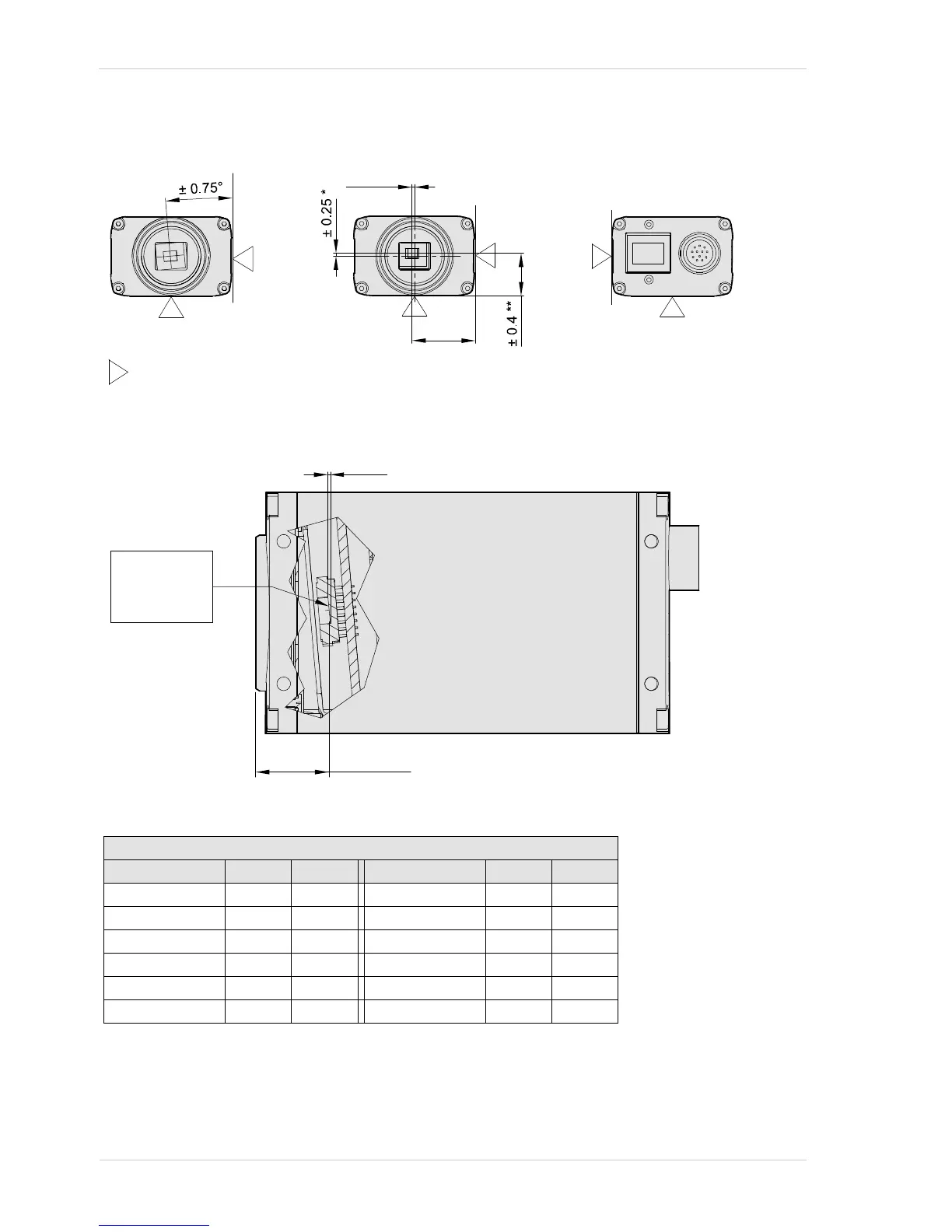

Fig. 24: Sensor Positioning Accuracy for Cameras with an Optional CS-mount Lens Adapter
(in mm unless otherwise noted)
= reference plane
*
= tolerance to the center of the
lens mount (optical axis)
**
= tolerance to the reference planes
± 0.02
(This is the sensor tilt tolerance. It applies to every point on the
photosensitive surface and is relative to the center of the die)
12.5
+
-
0
0.06
(This tolerance is for the distance between the front of the
lens mount and the sensor’s photosensitive surface.
Note that this tolerance and the sensor tilt tolerance (see
above) must be combined to obtain the total tolerance for
every point on the photosensitive surface.)
Photosensitive
surface
of the sensor
± 0.25 *
± 0.4 **
Maximum Sensor Tilt Angle (Degrees)
Camera Model Tilt X Tilt Y Camera Model Tilt X Tilt Y
scA640-70gm/gc 0.47 0.63 scA1300-32gm/gc 0.47 0.63
scA640-74gm/gc 0.35 0.47 scA1390-17gm/gc 0.31 0.42
scA640-120gm/gc 0.62 0.83 scA1400-17gm/gc 0.25 0.34
scA750-60gm/gc 0.51 0.80 scA1400-30gm/gc 0.25 0.34
scA780-54gm/gc 0.35 0.47 scA1600-14gm/gc 0.34 0.52
scA1000-30gm/gc 0.46 0.63 scA1600-28gm/gc 0.34 0.52
