Basler scout GigE User Manual

Physical Interface AW00011916000
80 Basler scout GigE
The required 12-pin Hirose plug is available from Basler. Basler also offers a cable assembly that
is terminated with a 12-pin Hirose plug on one end and unterminated on the other. Contact your
Basler sales representative to order connectors or cables.

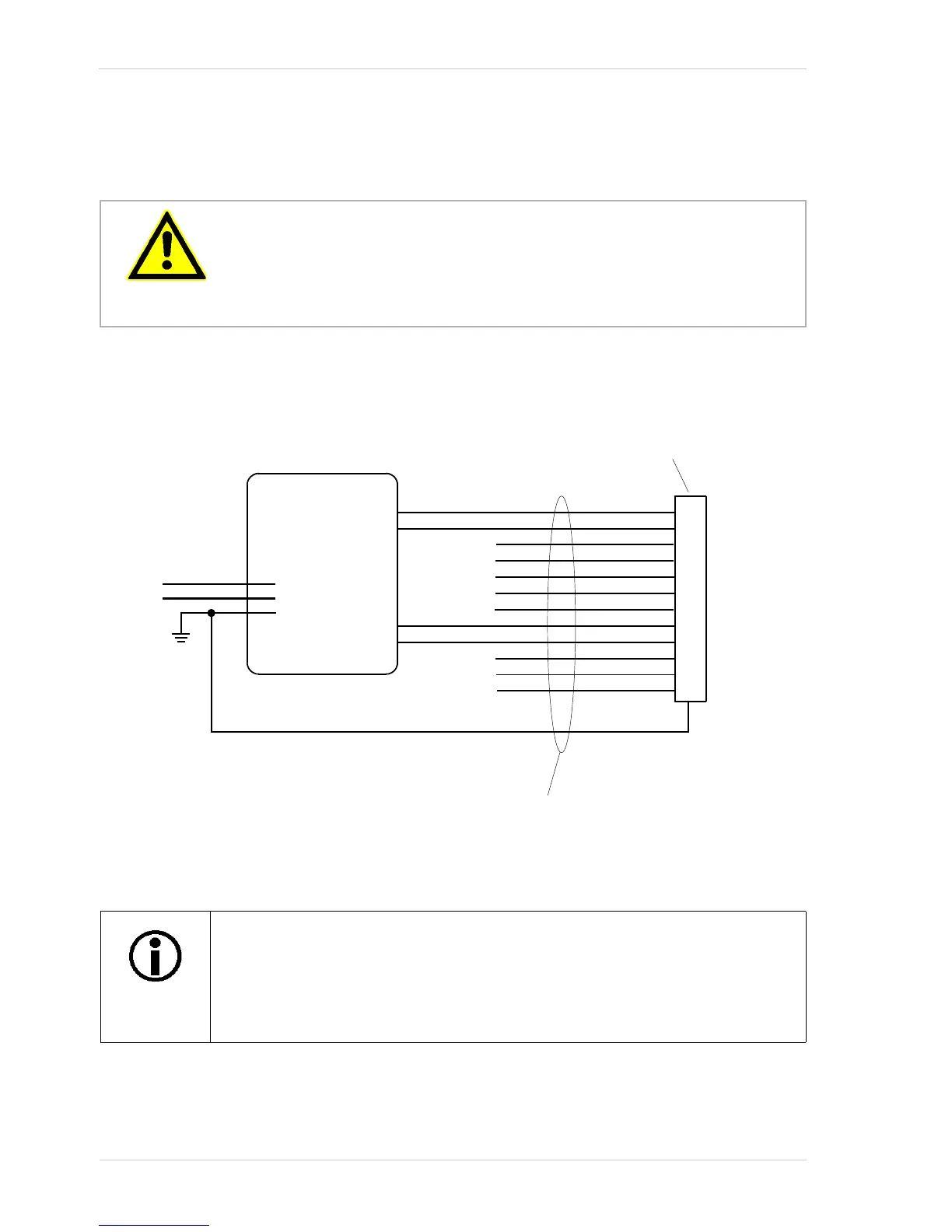

Fig. 38: Standard Power and I/O Cable
An Incorrect Plug Can Damage the 12-pin Connector
The plug on the cable that you attach to the camera’s 12-pin connector must
have 12 pins. Use of a smaller plug, such as one with 10 pins or 8 pins, can
damage the pins in the camera’s 12-pin connector.
CAUTION
To avoid a voltage drop with long power wires, we recommend that you supply
camera power VCC through two separate wires between the power supply and the
camera as shown in the figure above.
We also recommend that you supply camera power ground through two separate
wires between the power supply and the camera as shown in the figure.
1
2
3
4
5
6
7
8
9
10
11
12
Hirose
HR10A-10P-12S
12-pin Plug
I/O In 1
I/O In 2
I/O In Gnd
I/O Out 1
I/O Out 2
I/O Out VCC
I/O Out 3
I/O Out 4
In Pwr Gnd
In Pwr Gnd
In Pwr VCC
In Pwr VCC
DC
Power
Supply
Standard Power
and I/O Cable
AC In
Shield
