5 to 10 cycles - Cycles programmed according to user requirements:
Cycle 5 to 10
Parameter
Programmed
Programmable
Cleaning steps
Cleaning
-
0 to 9999 minutes
Ultrasound
-
0 to 9999 seconds
Flow
-
0 to 9999 seconds
Product volume
-
From 0 to 9999 ml
Temperature
-
From 0 ° to 60 ° C
Rising
Rising
-
0 to 9999 minutes
Ultrasound
-
0 to 9999 seconds
Flow
-
0 to 9999 seconds
All loads must be validated so that the cycle parameters meet the needs of the process. The cycles may
have their parameters modified for better validation.
11. Operation
11.1 Before the start of the operation
Make sure that all necessary supplies (electricity, water, drain point, etc.) are connected and in working conditions.
If any of the supplies fall, the cycle cannot start until the auction that has caused it to be repaired. For a
correct installation, follow the information indicated in the installation guide.
The Ultrasonic washer has information described in the display, which facilitates its handling, however,
is in the replenishment of the information contained in the manuals.
11.2 Operational Panel
The main operating panel is located in the front cabinet of the equipment and concentrates the instruments that
interact with the operator.

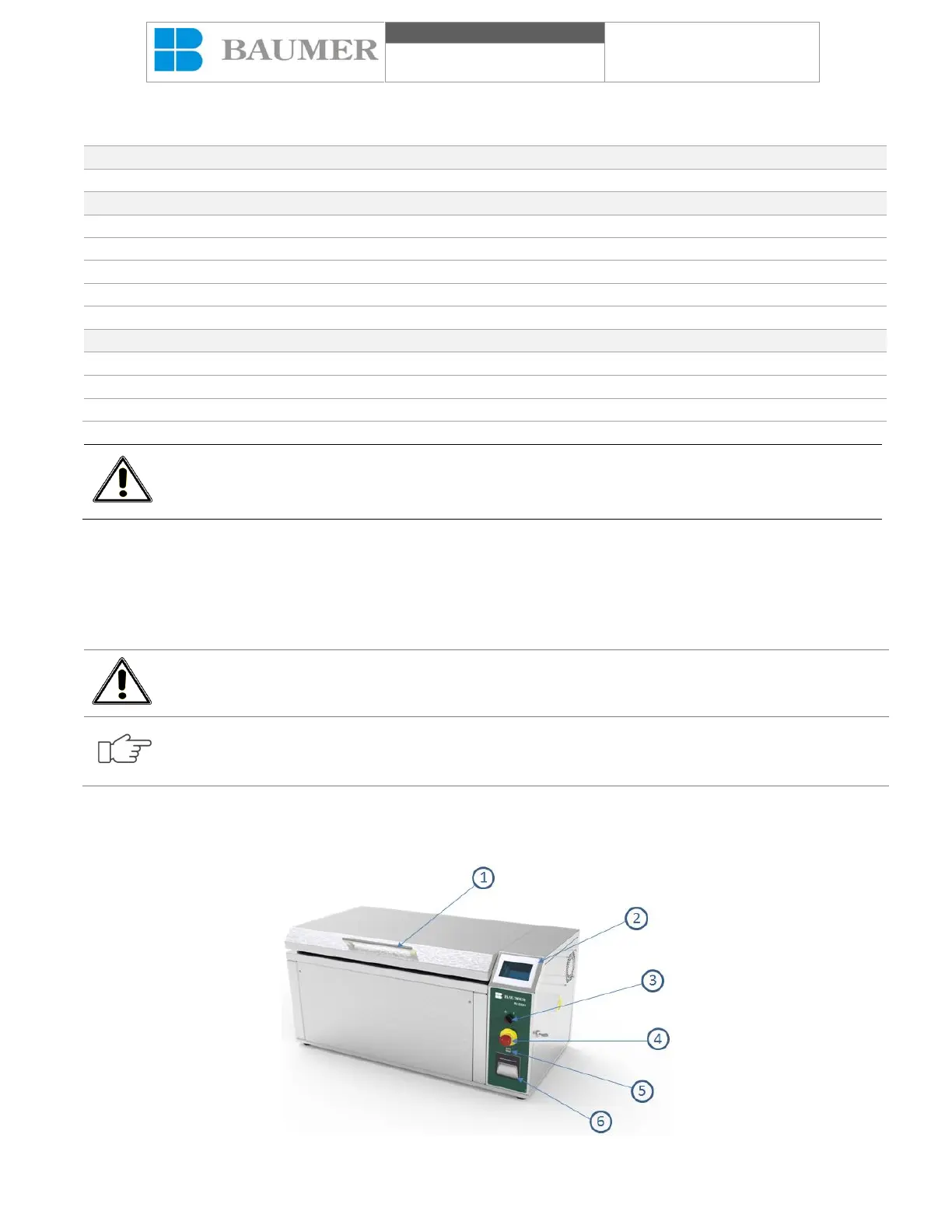

Figure 3 – Control panel
