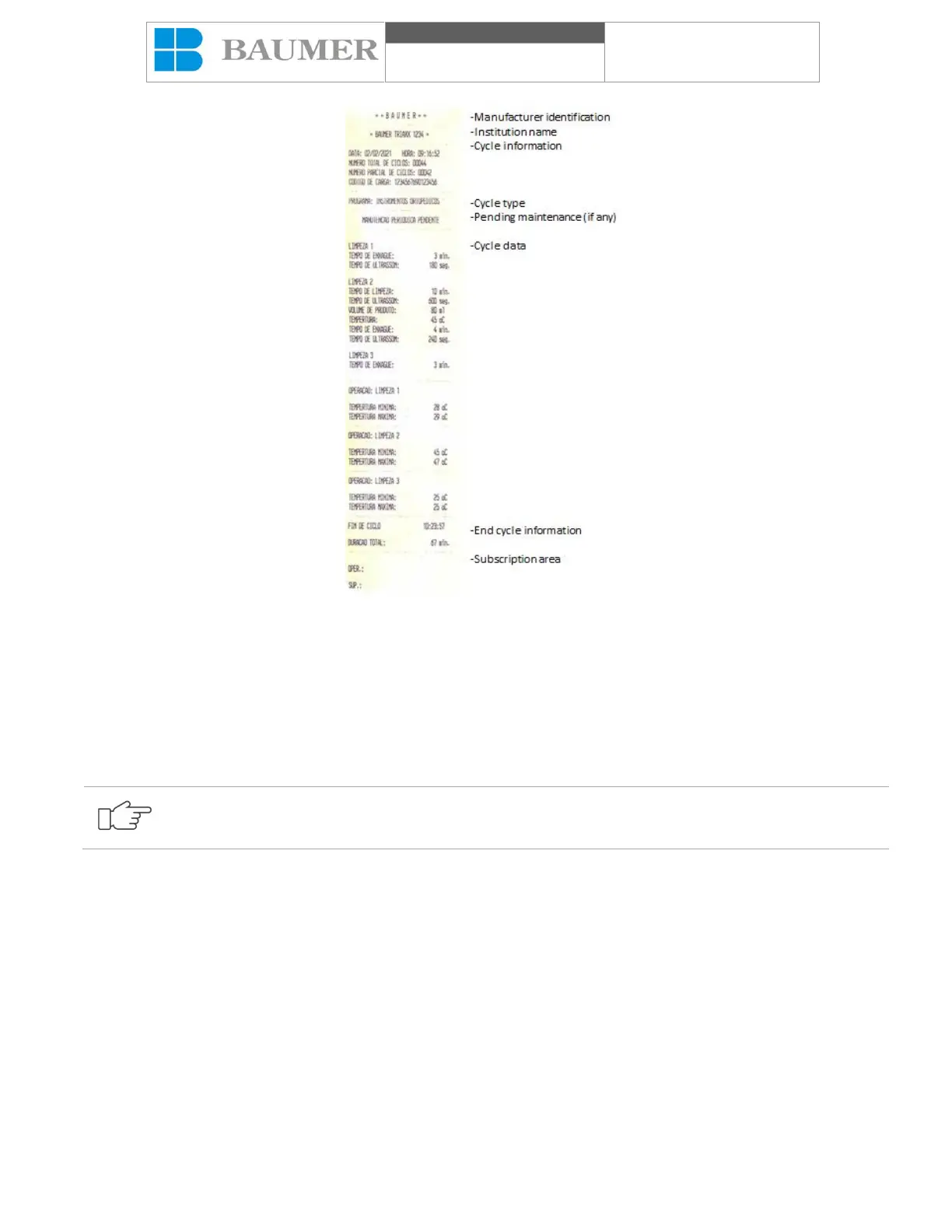

Figure 4 – Printed sheet
Also printed are date and time, load data, maximum and minimum temperature in the disinfection phase, A0 value
accumulated by the control sensor (when activated) and the total cycle time in minutes;
If a cycle is canceled, cycle phase printing is interrupted and the reason for the cancellation is printed. After printing
the subject, the printing of the data will be resumed until the safety routine is finished. With the completion of the
routine, the end of cycle and signature area data are printed.
12. Safety systems
• Impossibility to start the cycle with the open slap due to the activation of the micro switch that
guarantees the correct slap in the tank;
• Circuit breaker to protect the control against short circuits;
• Circuit breaker to protect the resistance;
• Security system with manual reset to protect the resistance to heat;
• General circuit breaker to protect all equipment against short circuits.
