4.3.2 Key Components

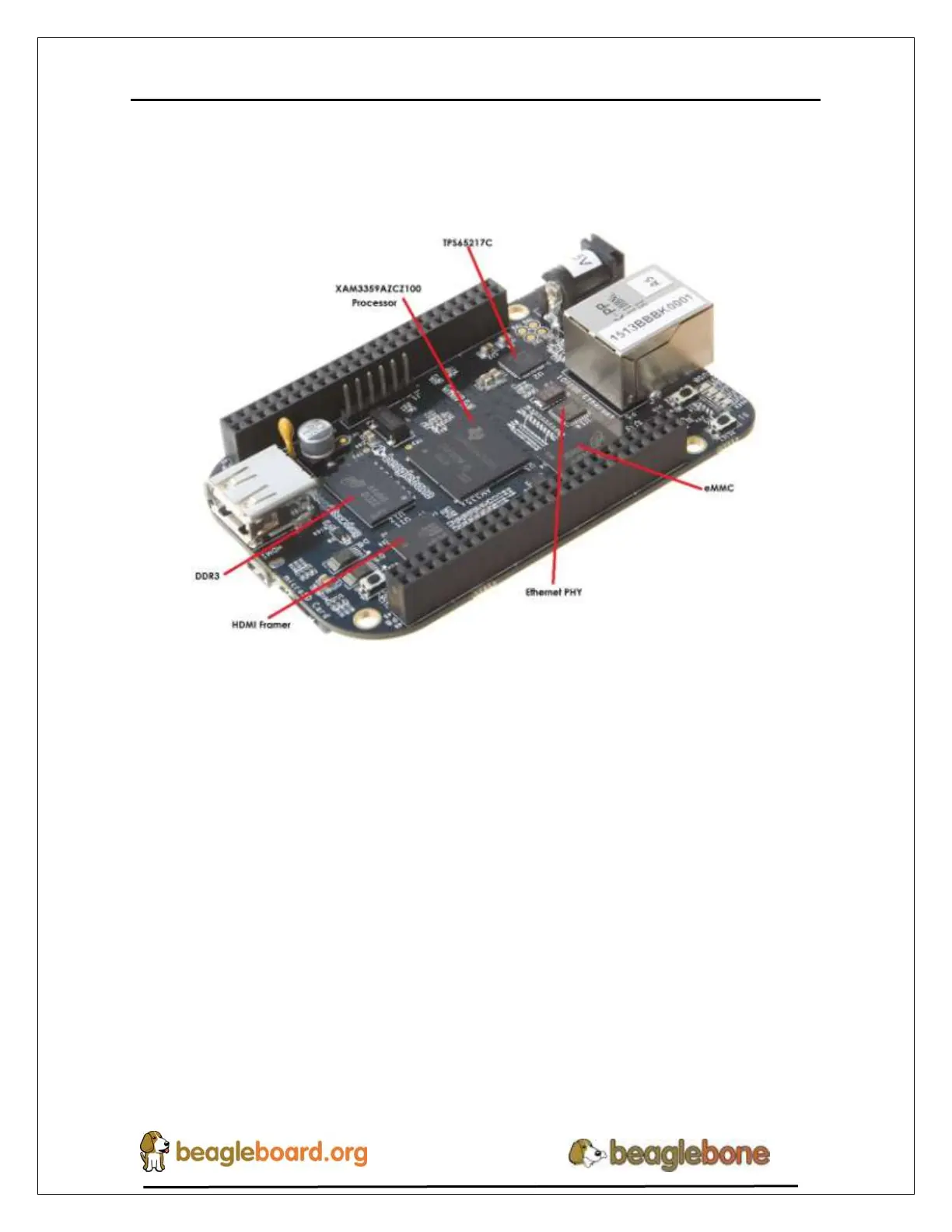

Figure 18 below shows the locations of the key components on the PCB layout of the
board.
Figure 18. Key Components
 Sitara AM3359AZCZ100 is the processor for the board.
 Micron 512MB DDR3L is the Dual Data Rate RAM memory.
 TPS65217C PMIC provides the power rails to the various components on the
board.
 SMSC Ethernet PHY is the physical interface to the network.
 Micron eMMC is an onboard MMC chip that holds up to 2GB of data.
 HDMI Framer provides control for an HDMI or DVI-D display with an adapter.
