BeagleBone Black System
Reference Manual
Rev A5.2
Page 37 of 108
power-down sequencing and several house-keeping functions such as power-good output,
pushbutton monitor, hardware reset function and temperature sensor to protect the
battery.
For more information on the TPS65217C, refer to http://www.ti.com/product/tps65217C.

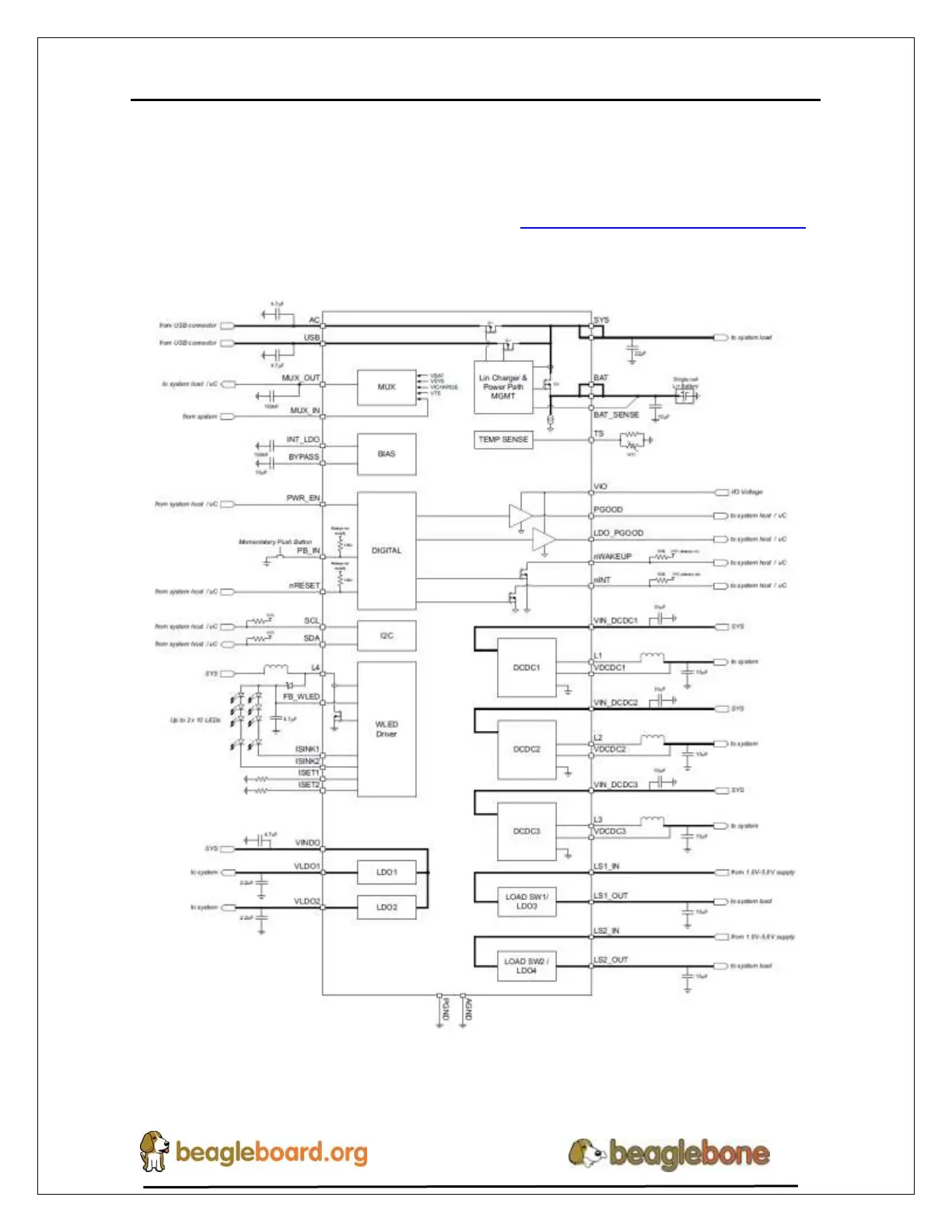

Figure 22 is the high level block diagram of the TPS65217C.
Figure 22. TPS65217C Block Diagram
