6.9.7 Power Connections

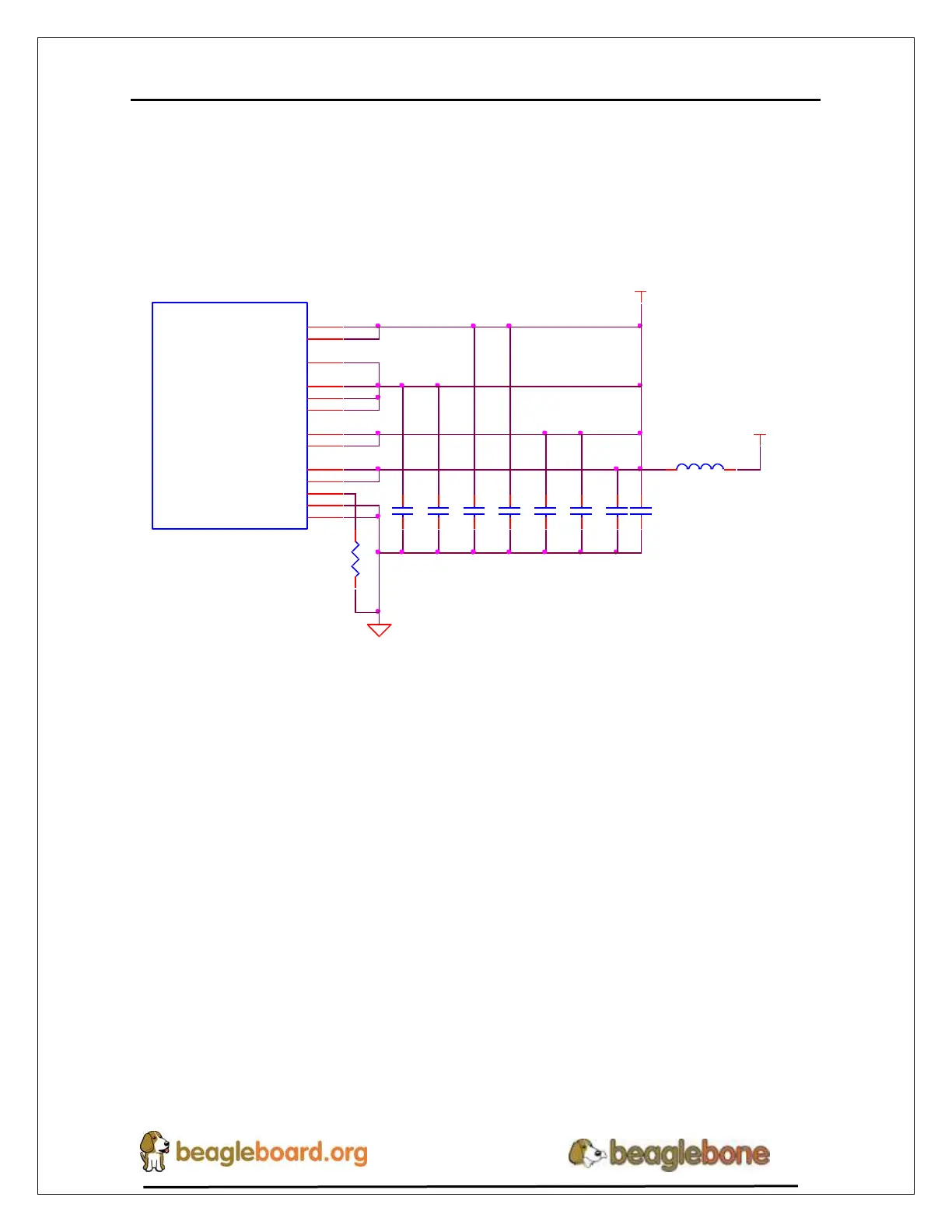

Figure 42 shows the power connections to the TDA19988 device. All voltage rails for
the device are at 1.8V. A filter is provided to minimize any noise from the 1.8V rail
getting back into the device.
FB5
150OHM800mA
1 2
HDMI_1V8
DGND
U11
TDA19988
VDDIOA(1.8V)
14
VPP
19
TEST
49
VDDA(PLL0)(1.8V)
47
VDDA0(1.8V)
35
VDDA1(TX)(1.8V)
36
VDDDC0(1.8V)
5
VDDDC1(1.8V)
29
VDDA2(TX)(1.8V)
41
VDDA3(TX)(1.8V)
46
VDDA(PLL1)(1.8V)
48
VDDIOB(1.8V)
55
PAD
65
C1490.1uf,6.3V C1450.1uf,6.3V C1500.1uf,6.3V C1470.1uf,6.3V
C1512.2uF,6.3V
VDD_1V8
C1482.2uF,6.3V C1462.2uF,6.3V C1442.2uF,6.3V
R149
0,1%
Figure 42. HDMI Power Connections
All of the interfaces between the processor and the TDA19988 are 3.3V tolerant allowing
for direct connection.
