5.0 BeagleBone Black High Level Specification
This section provides the high level specification of the BeagleBone Black.
5.1 Block Diagram

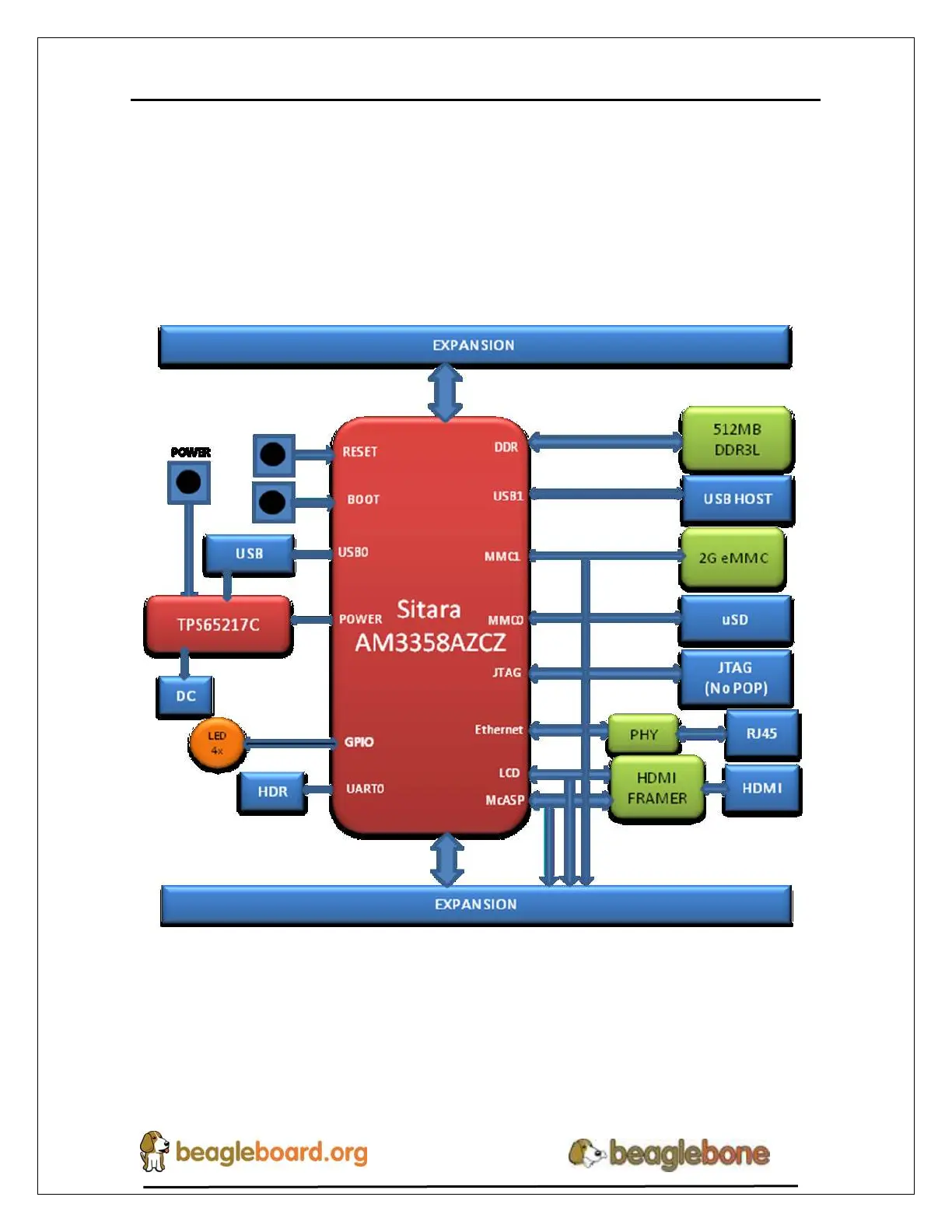

Figure 19 below is the high level block diagram of the BeagleBone Black.
Figure 19. BeagleBone Black Key Components
