1. Programming the upper limit
position
Connect the wires in the connecting cables
of the drive to the wires of the same colour
in the Becker programming unit.
To upper stop
Run the roller shutter towards the upper
stop until the drive stops automatically.
To upper point
Run the roller shutter to the desired
upper position and press the pro-
gramming button on the programming
unit until the drive clicks once.

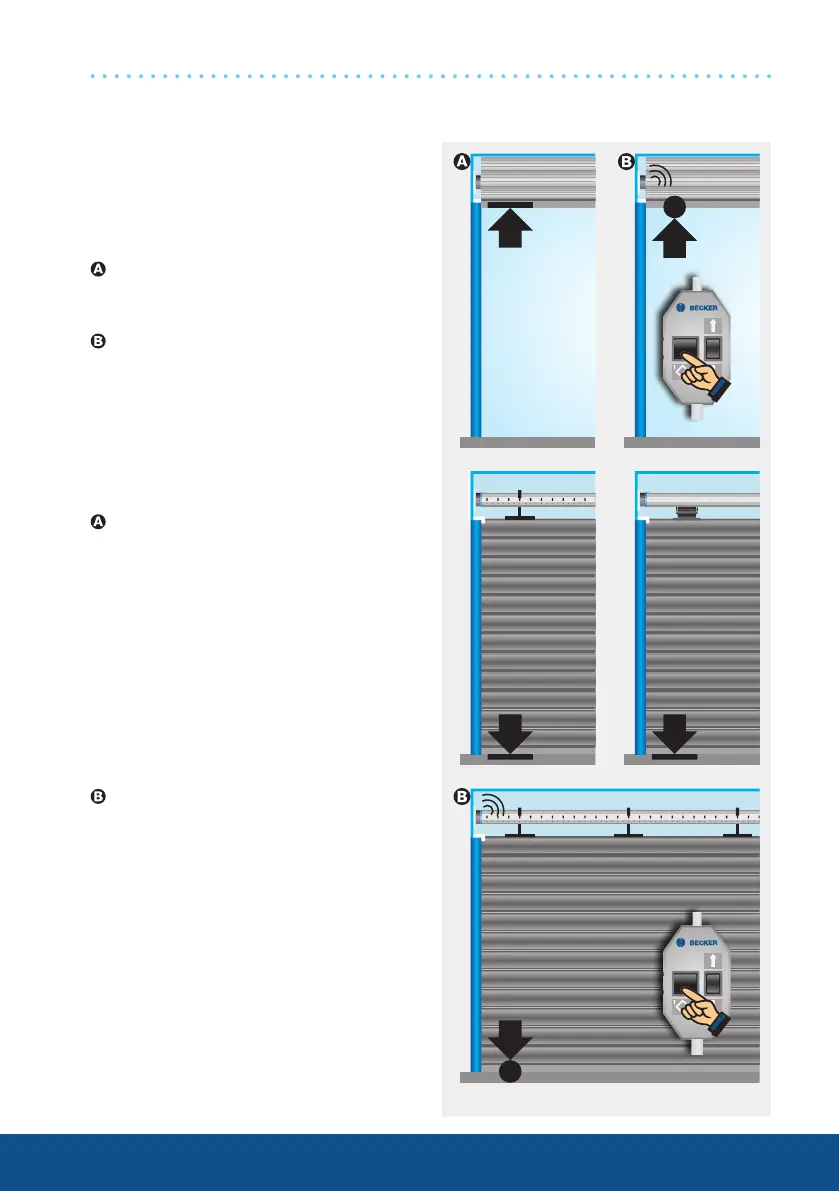

Setting the limit positions using the programming unit
2. Programming the lower limit
position
To lower stop
Run the roller shutter downwards
until the drive switches off automat-
ically due to the back-pressure of the
springs or blocking by the anti-lifting
device.
To lower point
Run the roller shutter to the desired
position and press the programming
button on the programming unit until
the drive clicks once.
1x click
1x click
