47Bend-Tech Dragon
Troubleshooting Guide
Control Box Troubleshooting
07
on the backside of the Control Box. Turn the ratchet counterclockwise to remove the Mounting
Bolt. Repeat this process for the right side Mounting Bolt. Once the mounting bolts are
removed, position the old Control box out of the way so the new Control Box can be mounted.
3. Mount New Control Box
Before mounting the new Control
Box, the Installer will need to
remove the red Breakout Board
located in the upper left hand
corner of the new Control Box.
Carefully pull the Breakout
Board out of its mount on the
motor drivers. It should remain
connected to the door of the
Using the Mounting Bolts and
nuts from the old Control Box,
position the new Control Box
so the Mounting Bolts can be
fed through the mounting holes
in the Control Box and the Rail
Support Leg. Once in position
with a Mounting Bolt fed through
Control Box to tighten the Mounting Bolts securely.
Note
The Powered Gate Control Box will have a separate Powered Gate Driver Box attached to it.
This control box contains the motor driver for the Powered Gate. The Powered Gate Driver Box
is placed on top of the main Control Box once it is mounted to the third Rail Support Leg.
4. Reinstall the Break Out Board
After mounting the Control Box, reinstall the Breakout Board. Position the Breakout Board
over the motor drivers and, applying even pressure, carefully press the Breakout Board into its
sockets on the motor drivers. Ensure the Breakout Board is fully seated on the motor drivers.
Take care not to alter any of the white dip switch settings as these are preset at the Bend-Tech
manufacturing facility for optimum performance.

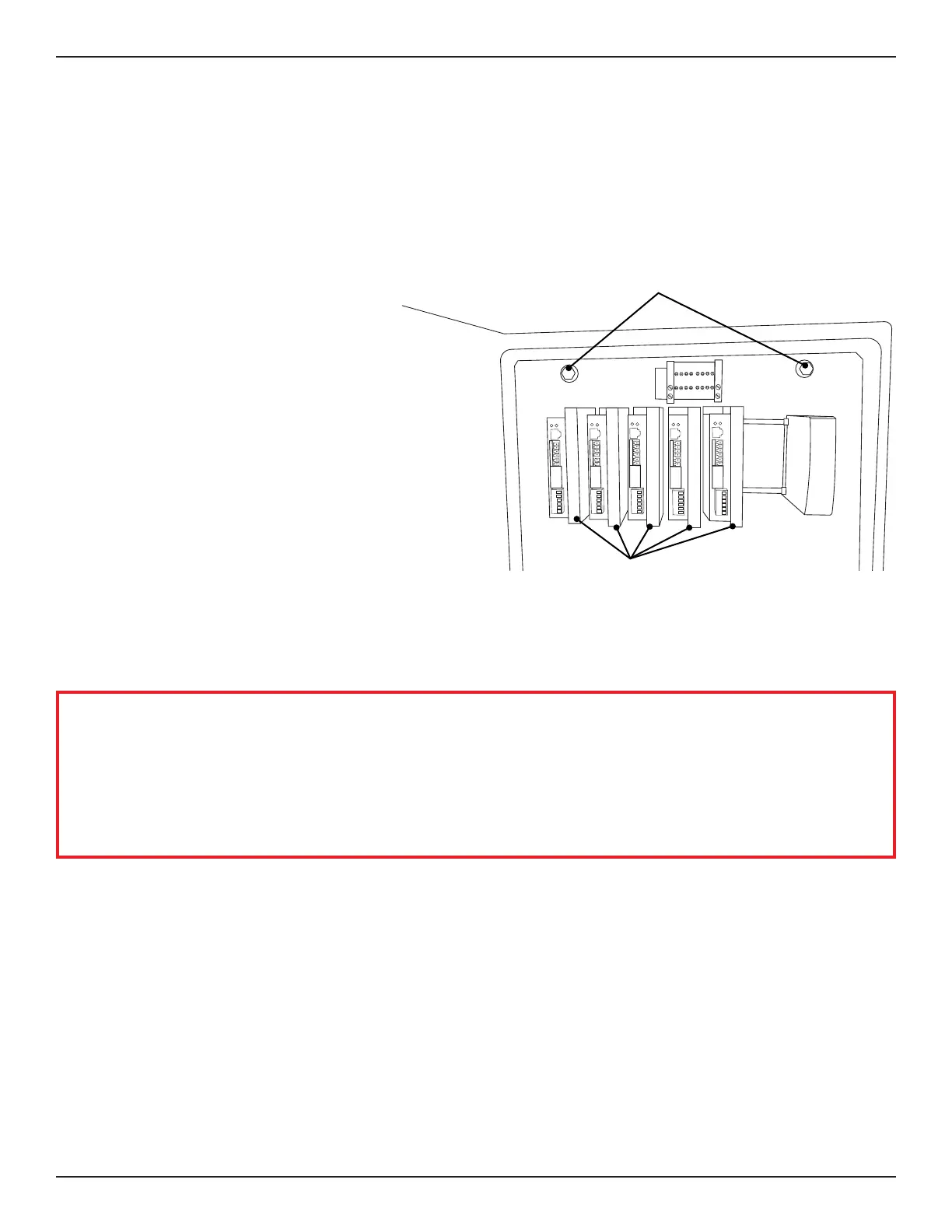

Motor Divers
Control Box Mounting Bolts
