EN
6
6 - 14
Periodic maintenance and adjustment
WARNING
Never attempt to remove the radiator
cap when the engine is hot.

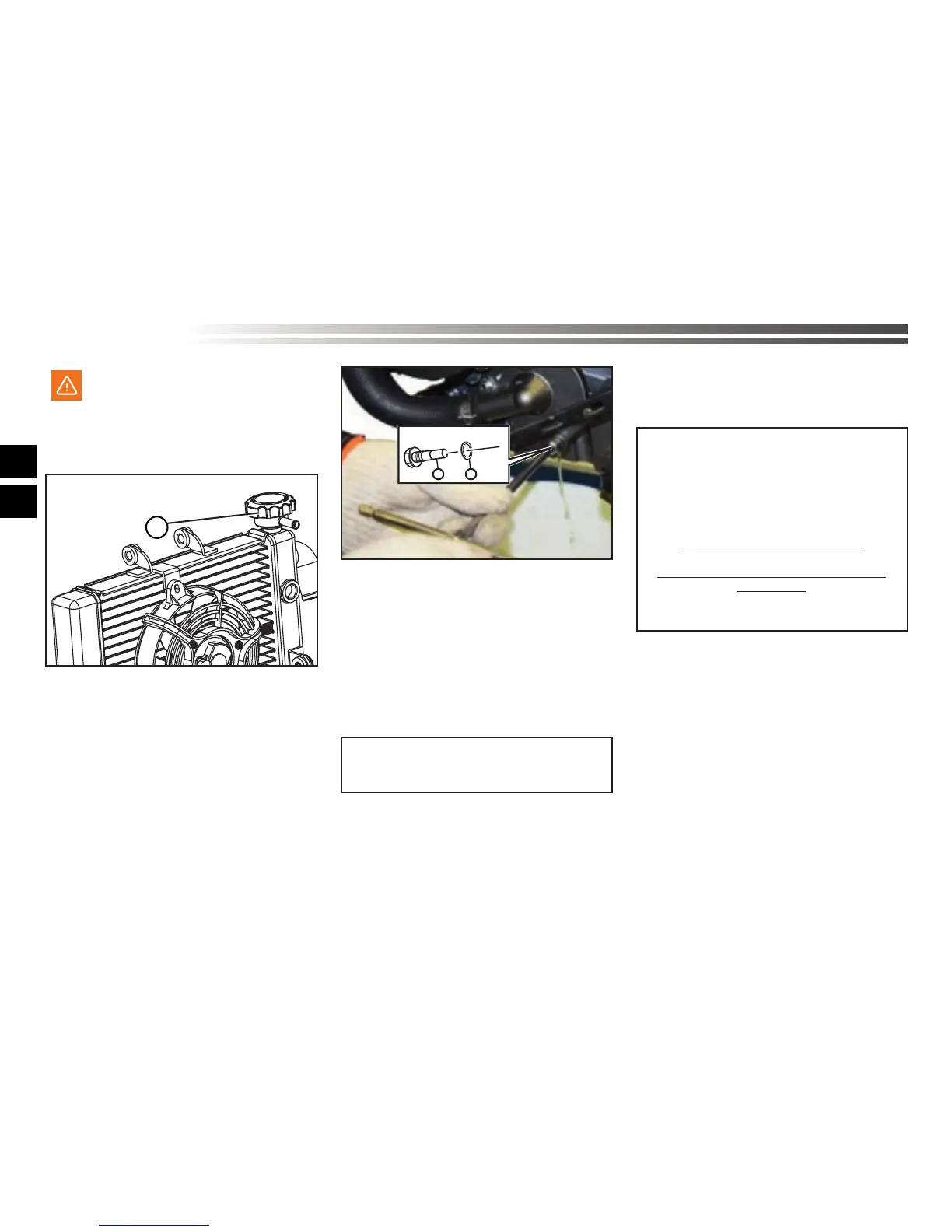

4. Remove the coolant drain bolt and its
gasket to drain the cooling system.
1. Coolant drain bolt
2. Gasket
5. After the coolant is completely drained,
thoroughly ush the cooling system with cle-
an tap water.
6. Install the coolant drain bolt and its new
gasket, and then tighten the bolt to the spe-
cied torque.
7. Pour the specied amount of the recom-
mended coolant into the radiator and reser-
voir.
8. Install the coolant reservoir cap.
9. Install the radiator cap.
10. Start the engine, let it idle for several mi-
nutes, and then turn it o.
11. Remove the radiator cap to check the coo-
lant level in the radiator.
If necessary, add sucient coolant until it re-
aches the top of the radiator, and then install
the radiator cap.
12. Check the coolant level in the reservoir.
If necessary, remove the coolant reservoir cap,
add coolant to the maximum level mark, and
then install the cap.
13. Start the engine, and then check the vehi-
cle for coolant leakage.
1 2
1
1. Radiator cap
Tightening torque:
Coolant drain bolt:
11 N·m (1.1 kgf·m 8.7 lb·ft)
Antifreeze/water mixture ratio:
1:1
Recommended antifreeze:
High-quality ethylene glycol antifreeze
containing corrosion inhibitors
for aluminum engines
Coolant quantity:
Radiator (including all routes):
2.4 L (0.63 US gal, 0.52 Imp gal)
Coolant reservoir (up to the maximum
level mark):
0.3 L (0.079 US gal, 0.065 Imp gal)
