Speaker wire is aligned between Lower case rib and Lower case boss before assembling Main
board, see figure 2-1. After assembling main board, put speaker wire between Lower case rib and
BKT L-frame, see figure 2-2.

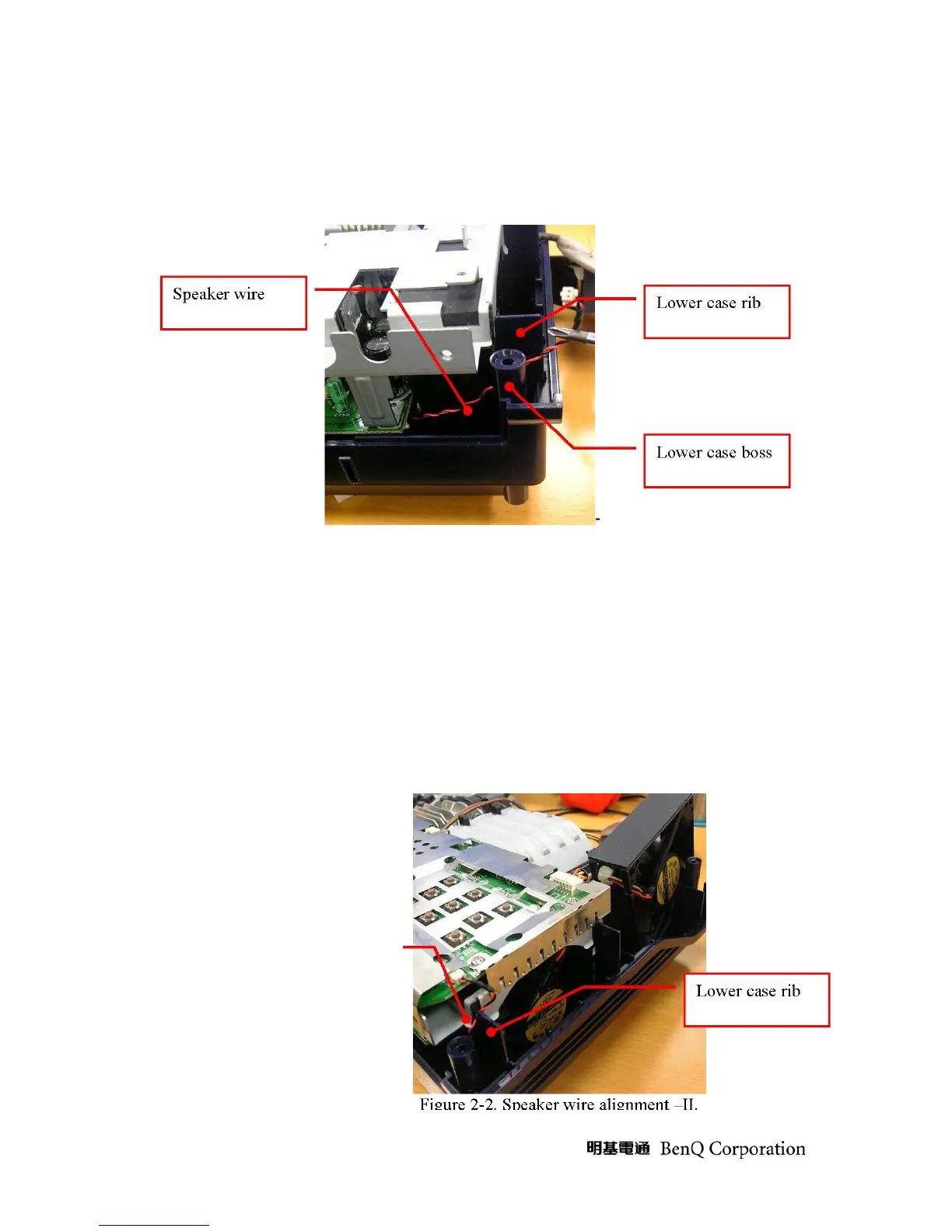

Figure 2-1. Speaker wire alignment –I.
3D.J2C13.001 BKT L-frame
