BenQ MP611 - Optical Engine Assembly

98
Figure8-3
9. OPTICAL ENGINE Assembly

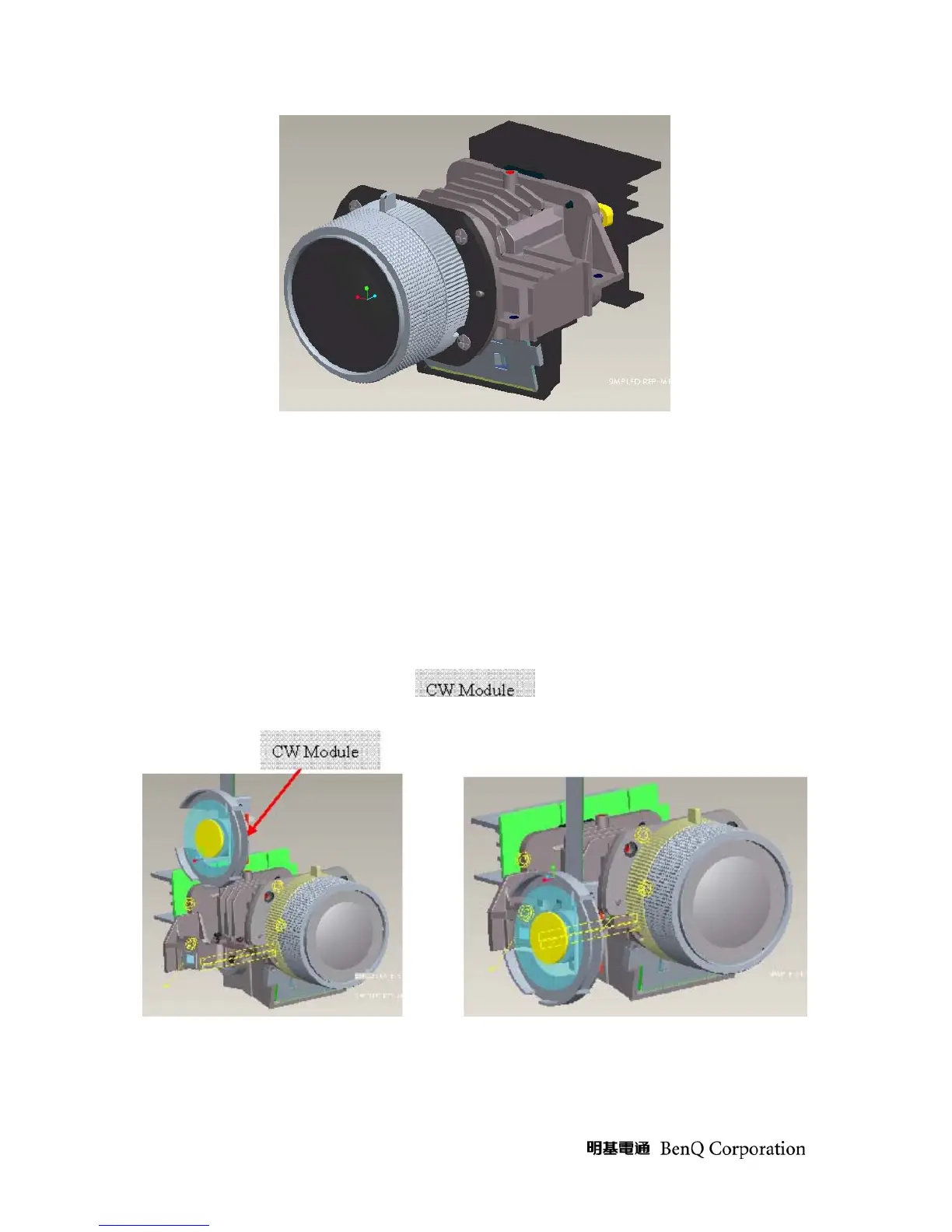

I. Assemble CW Module to HSG DMD (Figure9-1 ,9-2)
II. Assemble BKT Link Lamp, Shield CW to HSG DMD and fasten the screw
(Figure9-3 ,9-4)
III. Assemble Lamp Module to HSG DMD (Figure9-5 ,9-6)
Figure9-1 , Figure 9-2
