BenQ MP611 - Front Glass Assembly

82

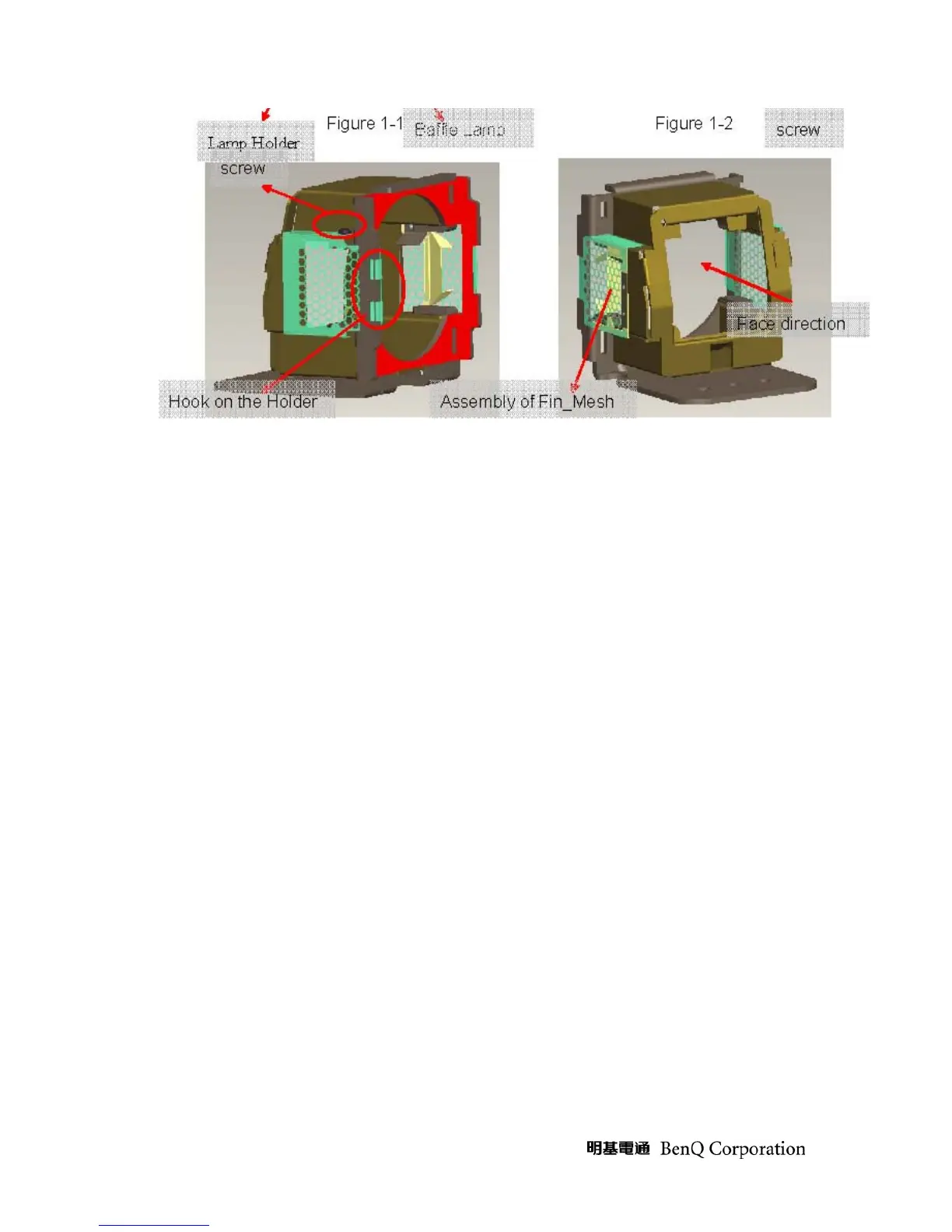

Figure 1-3 Figure 1-4
1.2 Front Glass Assembly.
i. Front Glass UV coated surface (marked) must face to Lamp. (Figure 1-5)
ii. F/G must be placed on datum surfaces well. (Figure 1-6)
iii. To make sure F/G Clip hooked well with Lamp Sleeve. (Figure 1-7)
