3. CW FPC, CW sensor wire and blower wire alignment

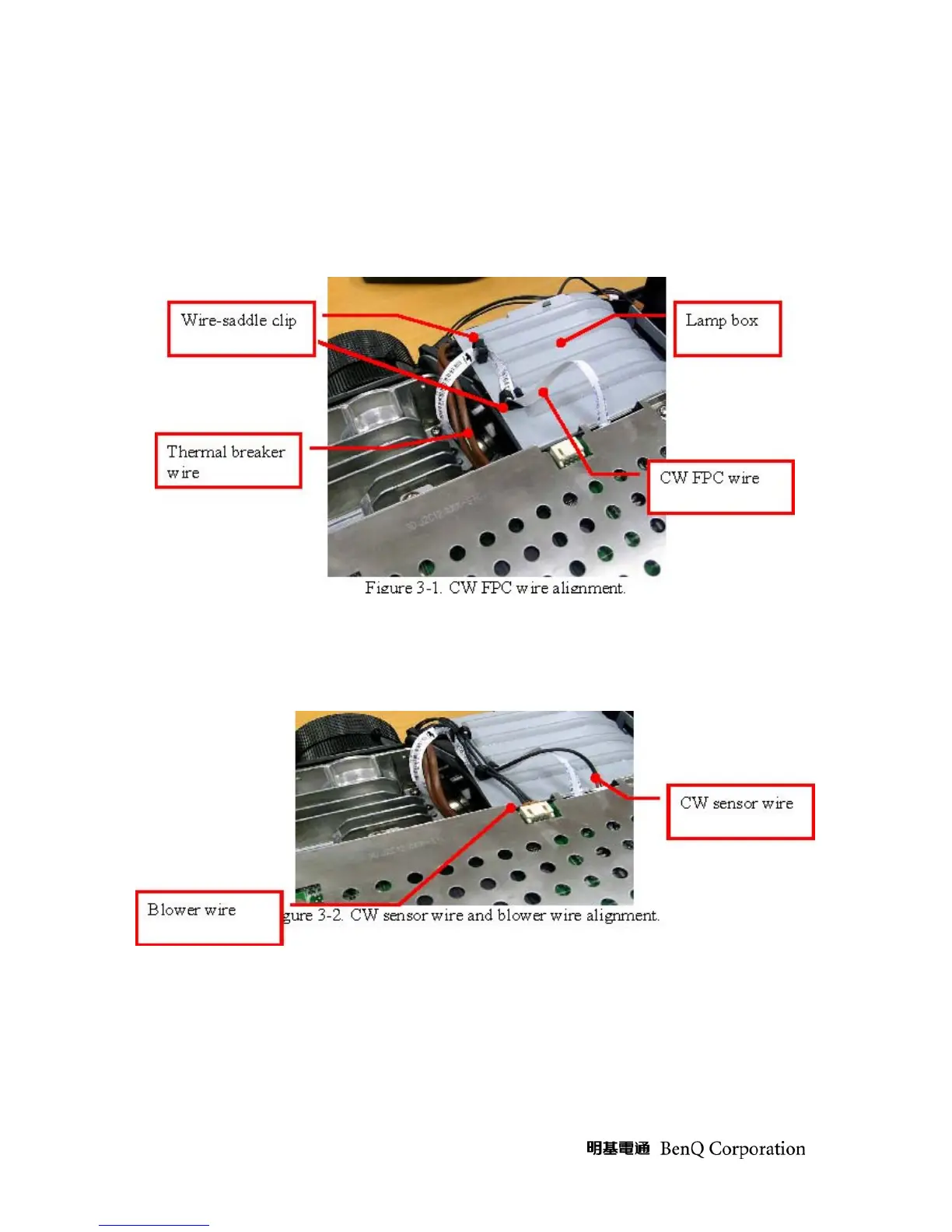

CW FPC wire is constrained by two Wire-saddle clips, see figure 3-1. CW FPC wire has to be
crossed above Thermal breaker wire and keep the redundant wire above lamp box.
Blower wire and CW sensor wire are constrained by the Wire-saddle clips too. They are assembled
after CW FPR wire, see figure 3-2.
4. Thermal breaker wire and blower wire
alignment
After put CW sensor, CW FPC and blower wires in the wire saddle clips, put thermal breaker wire in
