the second clip finally, see figure 4-1.

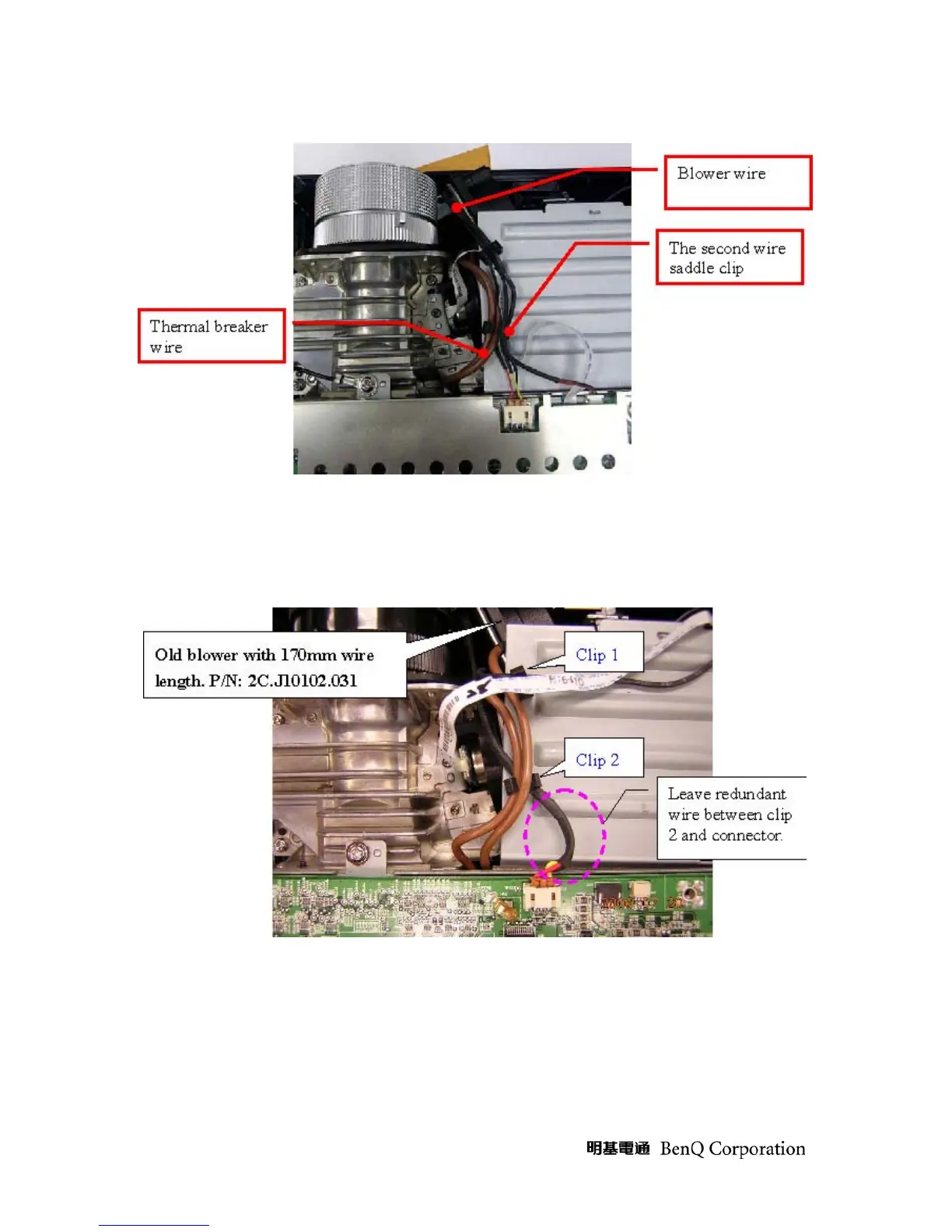

Figure 4-1. Thermal breaker wire alignment.
Blower wire alignment Old Blower part number, 2C.J10102.031, the wire goes through the gap
between lens and blower and be constrained by clip no. 2 only, see figure 4-2. The wire has to keep
straight between blower and clip 2 and leave redundant wire between clip 2 and connector.
Figure 4-2. Old blower, 2C.J10102.031 (wire length 170mm) wire alignment.
New Blower part number, 2C.J10102.051, the wire goes above the blower itself and be constrained by
clip no.1 and 2, see figure 4-3. The wire has to keep straight between blower and clip 2 and leave
redundant wire between clip 2 and connector.
