BenQ MP611 - Overfill Adjustment @ LP Module Overfill Adjustment Criteria

89
( Figure 4-9)。
ٛ
v. Assembly “Baffle_LP” second ( Figure 4-8)and make sure it hooks HSG DMD well。
~ Assembly Criteria was shown in Figure 4-8-2.
ٛ
vi. Push two hook places to make sure that Baffle_LP touches “BKT_LP “well, don’t push
the middle place of “Baffle_LP”。
ٛ
4.6 Overfill Adjustment @ LP Module Overfill Adjustment Criteria:
For Overfill Re-adjustment:

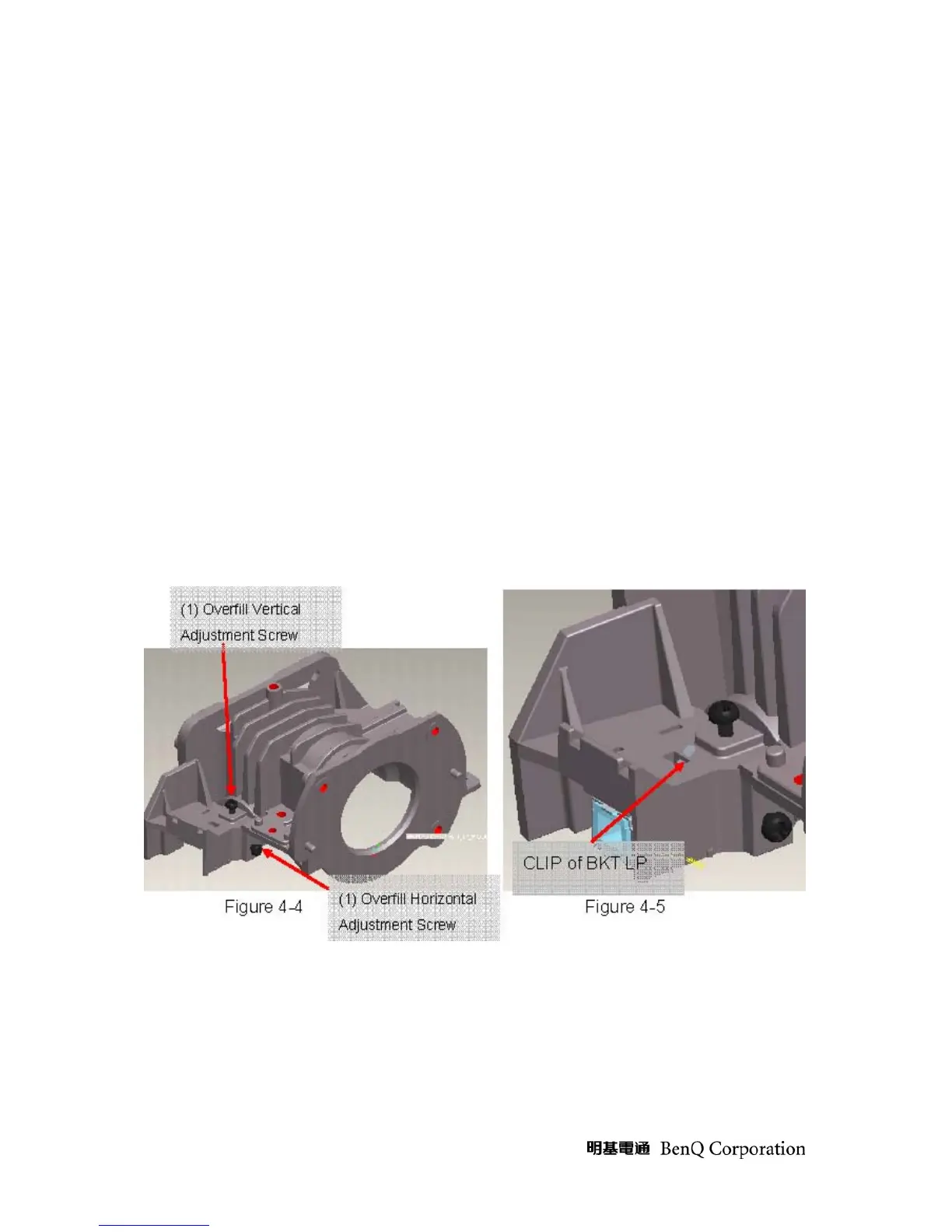

1 Those 2 Adjustment Screws must be released closely to the “Pre-assembly” positions first.
(defined in 4.6-i )
2 Follow adjustment steps shown in Item 4.6-ii.
