BenQ MP611 - Assembly CW Module; BKT LINK Lamp and CW Shield Assembly

86

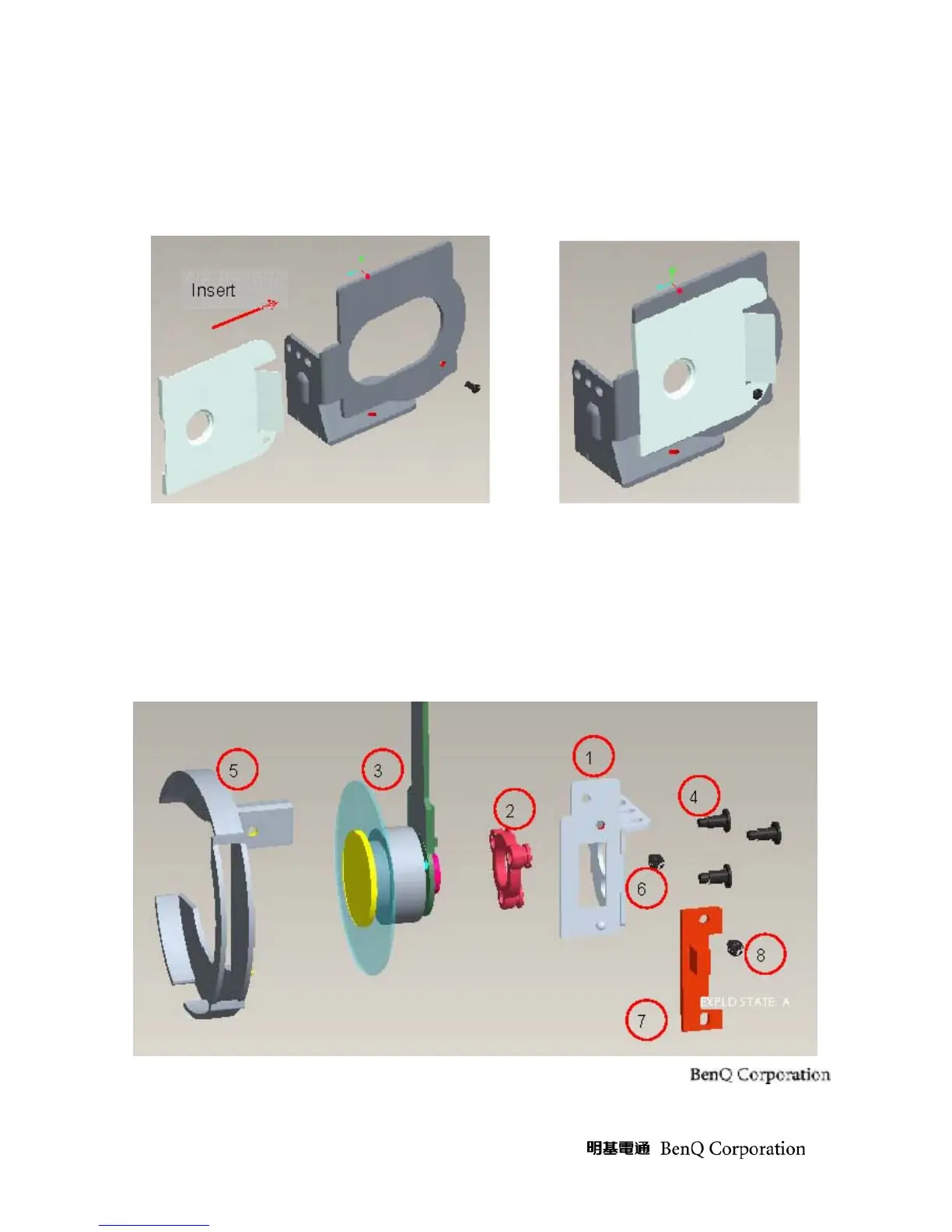

2. BKT LINK Lamp and CW Shield Assembly
Insert CW Shield to BKT LINK Lamp and fasten screw (Figure 2-1,2-2)
Figure 2-1 Figure 2-2
3.Assembly CW Module
2.1 CW Module Assembly Sequence as blow (Fig3-1):
ٛ
(1) BKT CW (2) Damper CW (3)CW (4) Fixed screw (5) CVR CW
ٛ
(6) M2 Screw (7)Sensor Board (8)M2 Screw
