BenQ MP611 - JBMA Contrast; Light Leakage; Image Distortion; Throw Ratio;Zoom Ratio

15
A6. JBMA CONTRAST
JBMA Contrast = Average (L1,L2,L3,L4,L5,L6,L7,L8,L9) under solid white / Average
(L1,L2,L3,L4,L5,L6,L7,L8,L9) under solid black
A7. LIGHT LEAKAGE
Leakage = The maximum light leakage under a solid black pattern in or outside of the projected

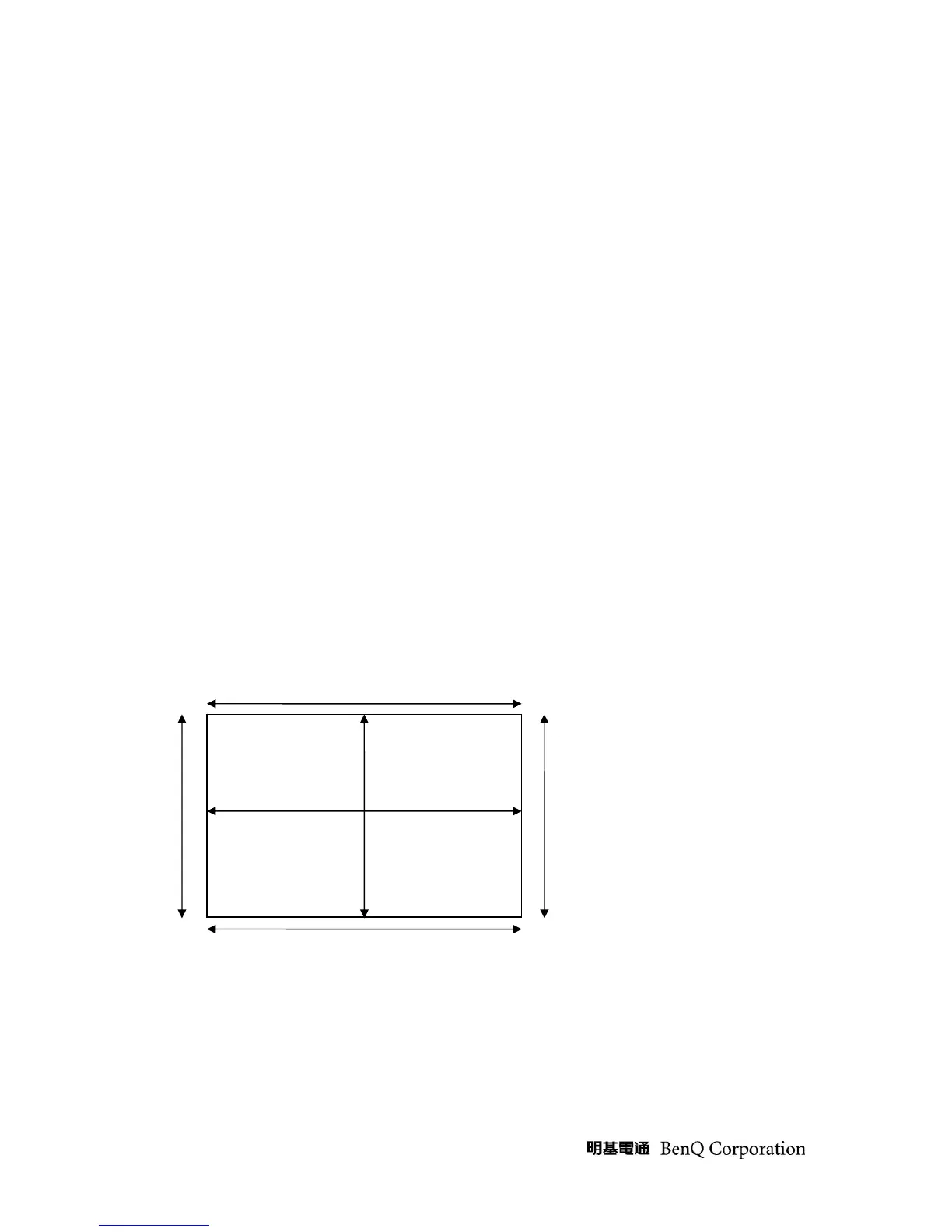

A8. IMAGE DISTORTION
Keystone = (W2-W1)/ (W1+W2) x 100%
Vertical TV dist = (H1+H2-2xH3)/2H2 x100%
Horizontal TV dist = (W1+W2-2xW3)/2W1 x100%
W1: image width at image bottom
W2: image width at image top
W3: image width at the half image height.
H1: image height at image left
H2: image height at image right
H3: image height at half image
Note:
1. Keystone and Vertical TV Distortion are recommended for Front Projection Display
2. Vertical and Horizontal TV Distortion are recommended for Rear Projection Display
A9. THROW RATIO
Throw ratio = projection distance / the width of the projected image
A10. ZOOM RATIO
Zoom ratio = maximum / minimum image diagonal size at a fixed projection distance
H1 H3 H2
W3
W1
W2
