BenQ MP611 - Assembly LP Module

87
Fig3-1
Fig3-2
4. Assembly LP Module

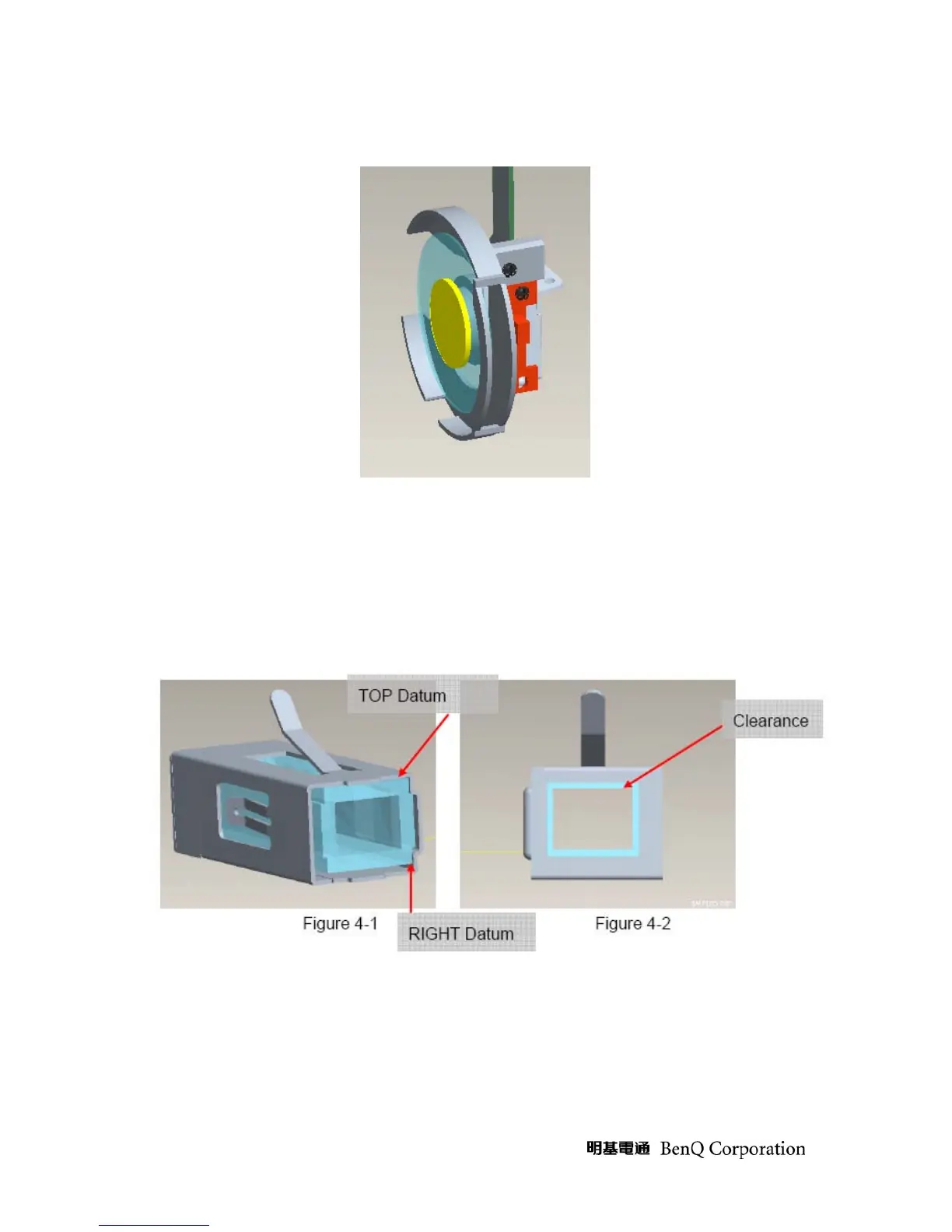

4.1 LP must datum well with “BKT_LP” show as Figure 4-1
4.2 Referring to Figure 4-2,there must be visible clearance between “BKT_LP” and ”LP
opening” after assembly。
