BenQ MP611 - PL Module Assembly

97
Figure 7-3
8. PL Module Assembly

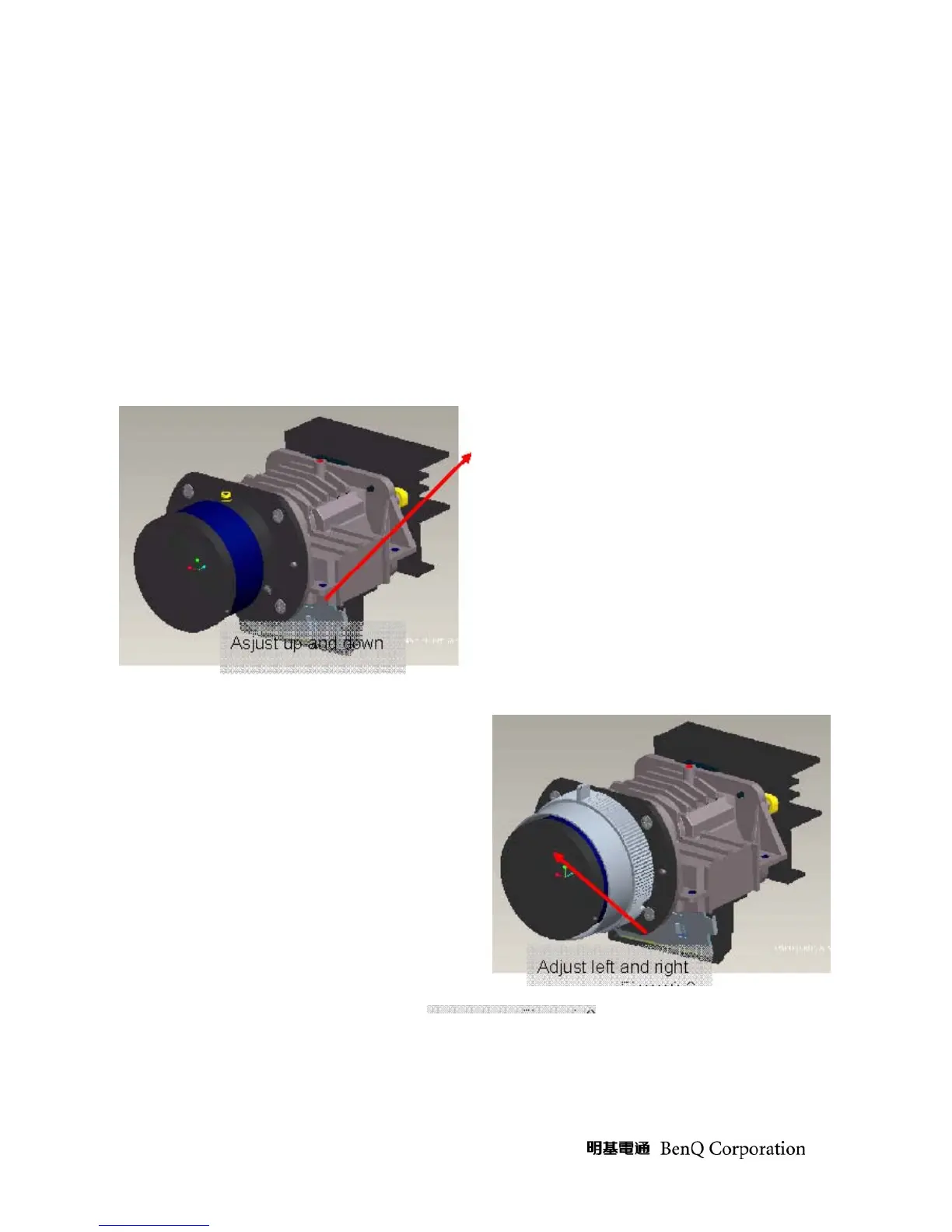

1 Assemble PL to HSG DMD and fasten screw to fix PL first (Fig 8-1) 。
2 Assemble “Ring Zoom” second and fasten screw (Fig 8-2) 。
3 Insert “Ring Focus” third(Fig 8-3) 。
Figure 8-1
