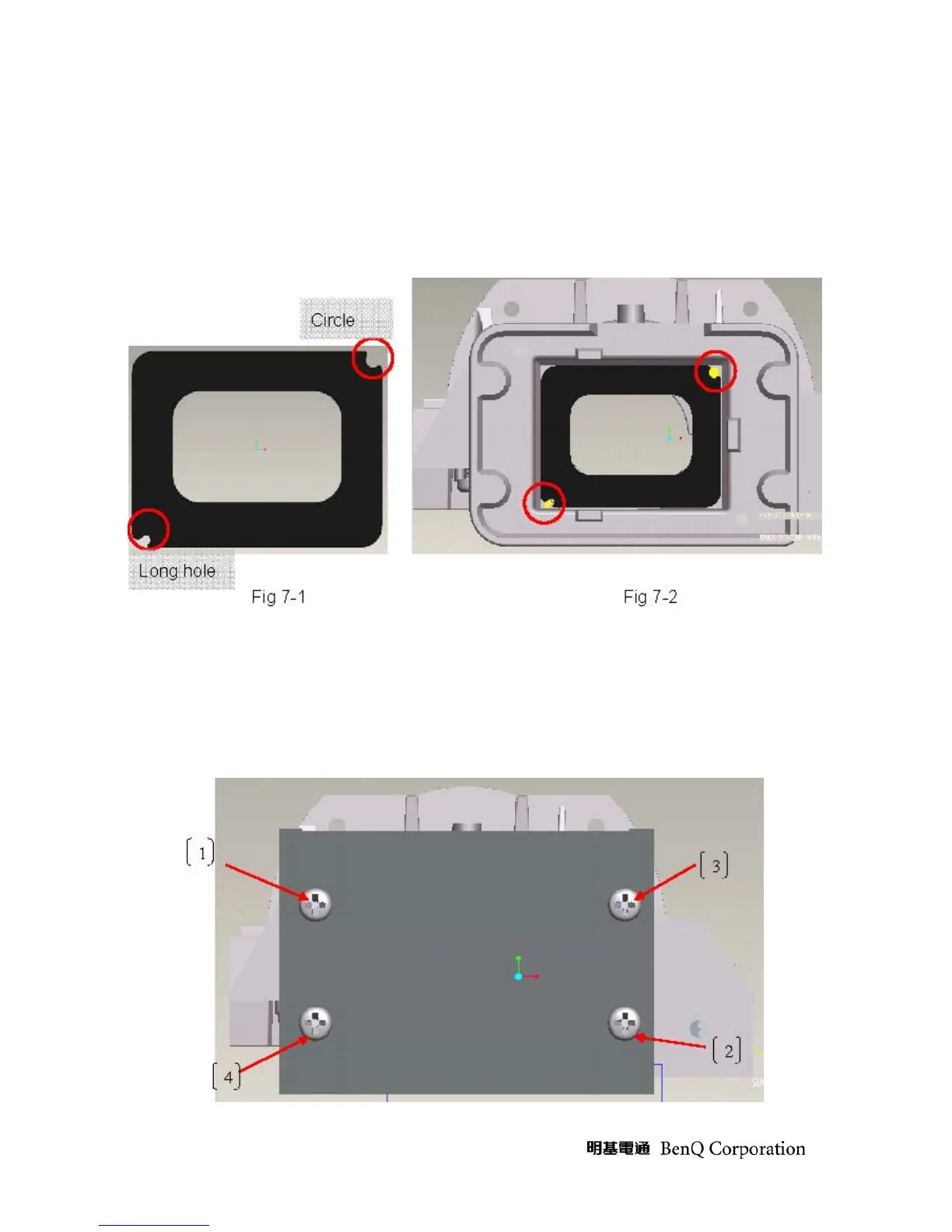

7.1.Assemly Baffle_DMD:
I. There are two breach on the Baffle_DMD. One is “circle” and the other is “Long hole”
(Fig 7-1)
II. The circle of Baffle_DMD have to match with the circle on HSG DMD and the Long hole
is the same(Fig 7-2)
7.2 As shown in Figure 6-3:
i. Pre-fastening Sequence: [ 1 ] - [ 2 ] - [ 3 ] - [ 4 ]
ii. Fastening Sequence [ 2 ] - [ 1 ] - [ 4 ] - [ 3 ]
iii. Screw Torque must be confirmed to be 6 kg-cm.
