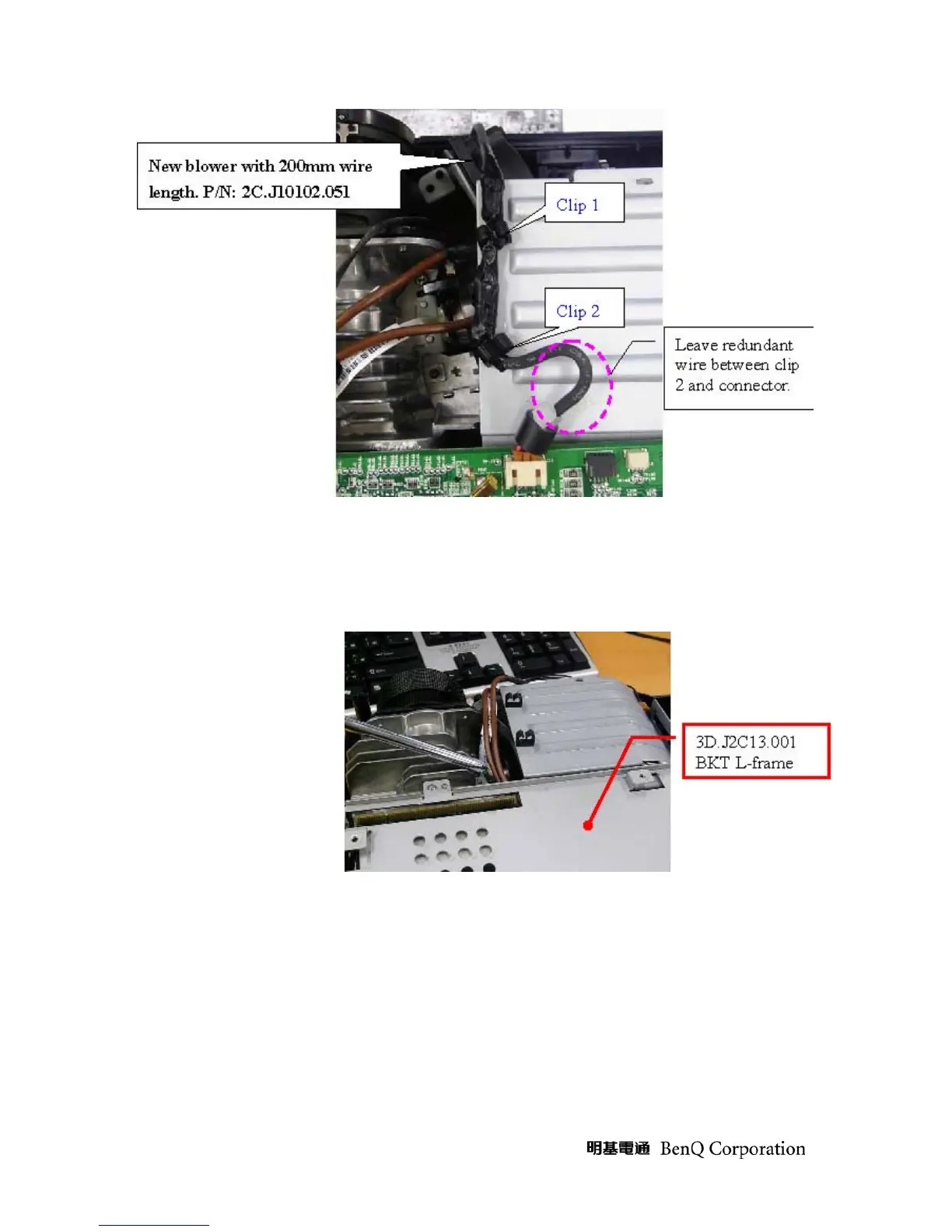

Figure 4-3. New blower, 2C.J10102.051 (wire length 200mm) wire alignment.
NOTE: Please check thermal breaker wire is connected to power board indeed before assembling
BKT L-frame.
5. Fan 8025 wire assembly concern
After assembling BKT U-frame, connect fan connector to Main board before put Fan body in
Lower case.
