Input power: 300W max
The power circuit shall supply DC power outputs as followings:
Output Voltage Typical load current
1 380V 0.58A
2 2.5V 1.4A
3 5V 1.4A
4 12V 0.5A
5.3 EMI filter

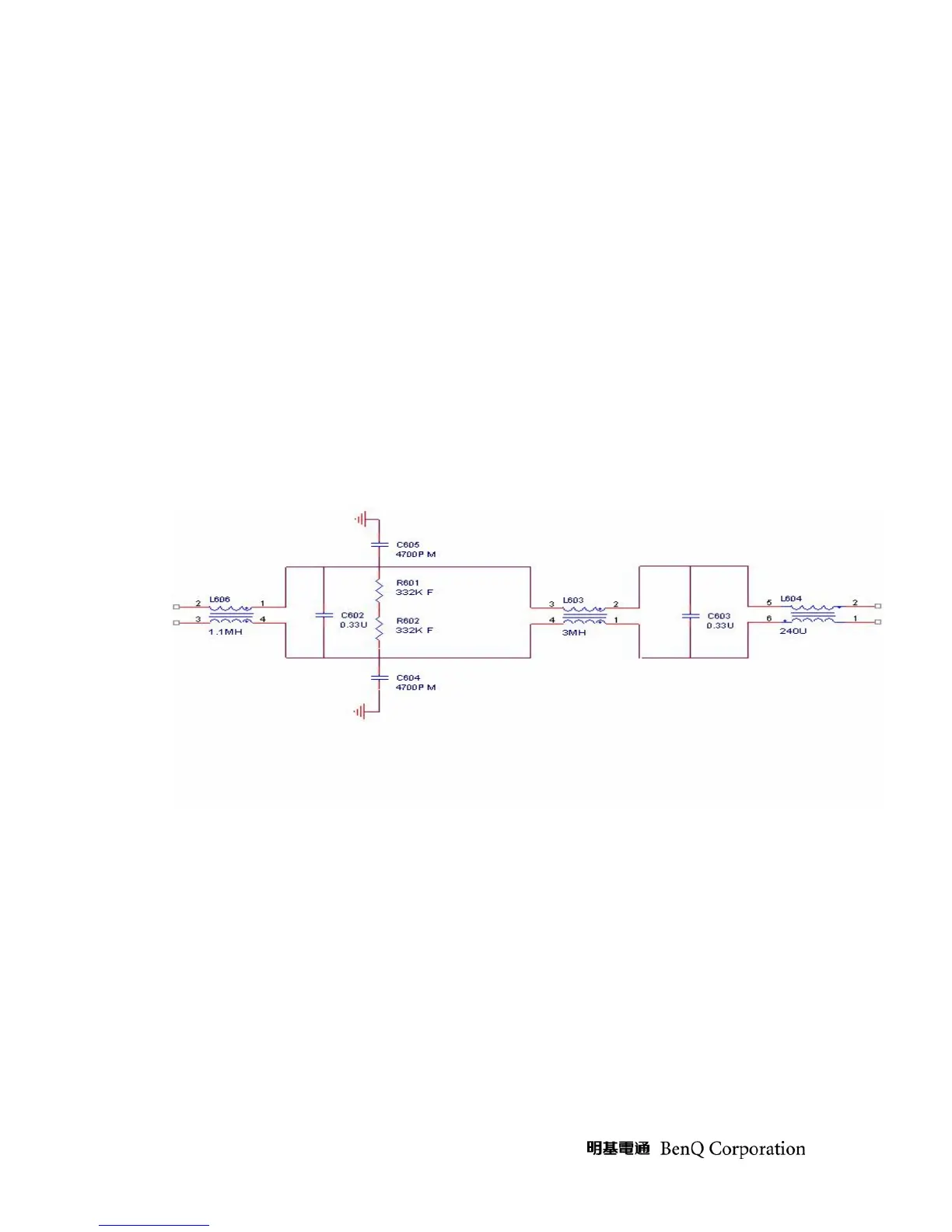

EMI components include common choke L606.L603, X Capacitor C602.C603, Y
Capacitor C604.C605. and differential choke L604.and discharge resistor R651A, R651B, This circuit designed
to inhibit electric and magnetic interference for meet FCC class B and CISPR class B standard requirements.
5.4 Bridge rectifier and filter
