37
Pin
Definition
1 Composite video
input

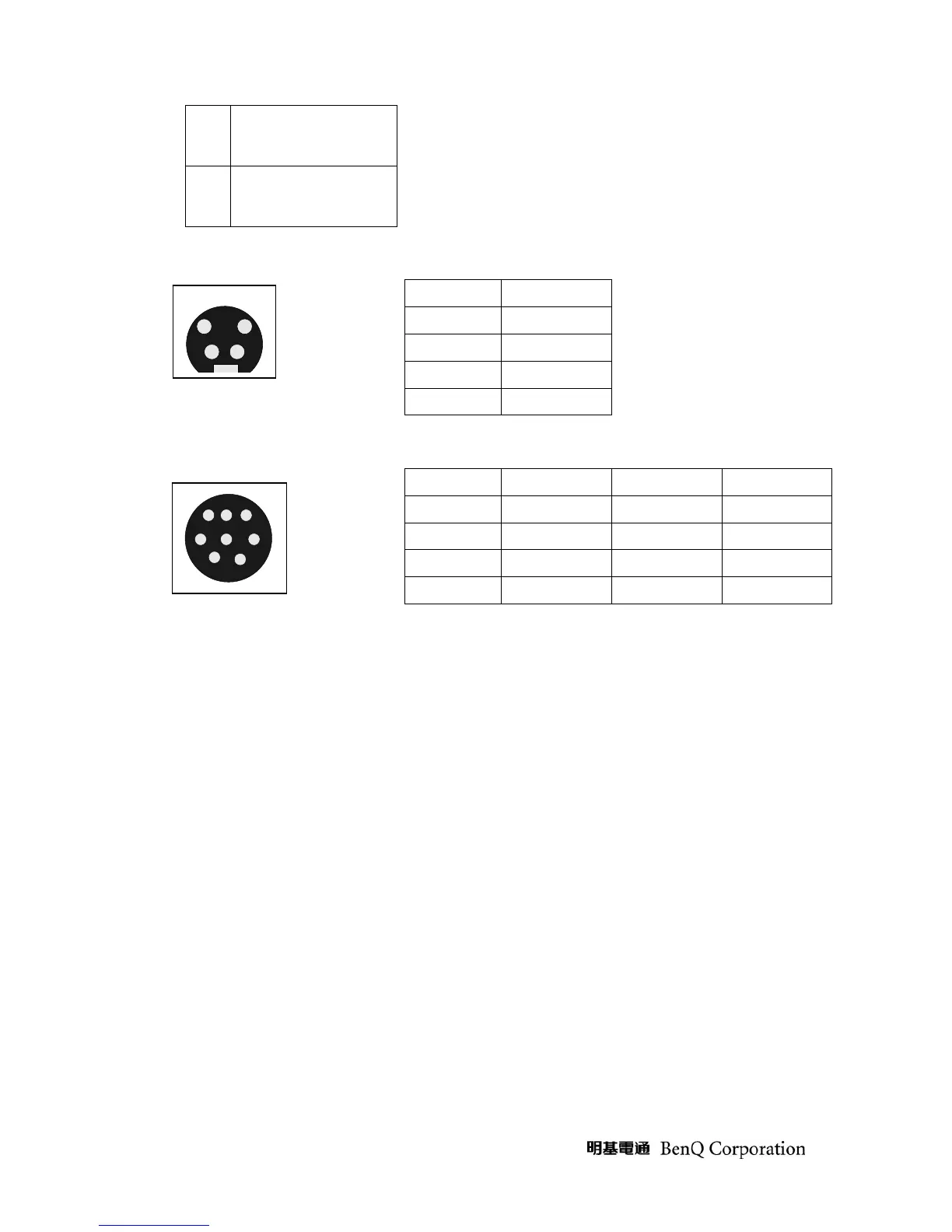

• S-Video input
Pin Description
1 GND
2
GND
3 Luminance
4 Chroma
• Control Port
Pin Description Pin Description
1 DSR 2 CTS
3 RD 4 GND
5 RTS 6 NC
7 TX 8 NC
2
4
1
3
8 7 6
5 4 3
2
1
