Berthold Duo Xpert - Calibration Settings: Chart

7 Main Menu Device Setup LB 470 Level
108
56925BA2 Rev. 03, 11/2017
Calibration Settings: Chart
Device settings | Setup | Calibration | Calibration Settings

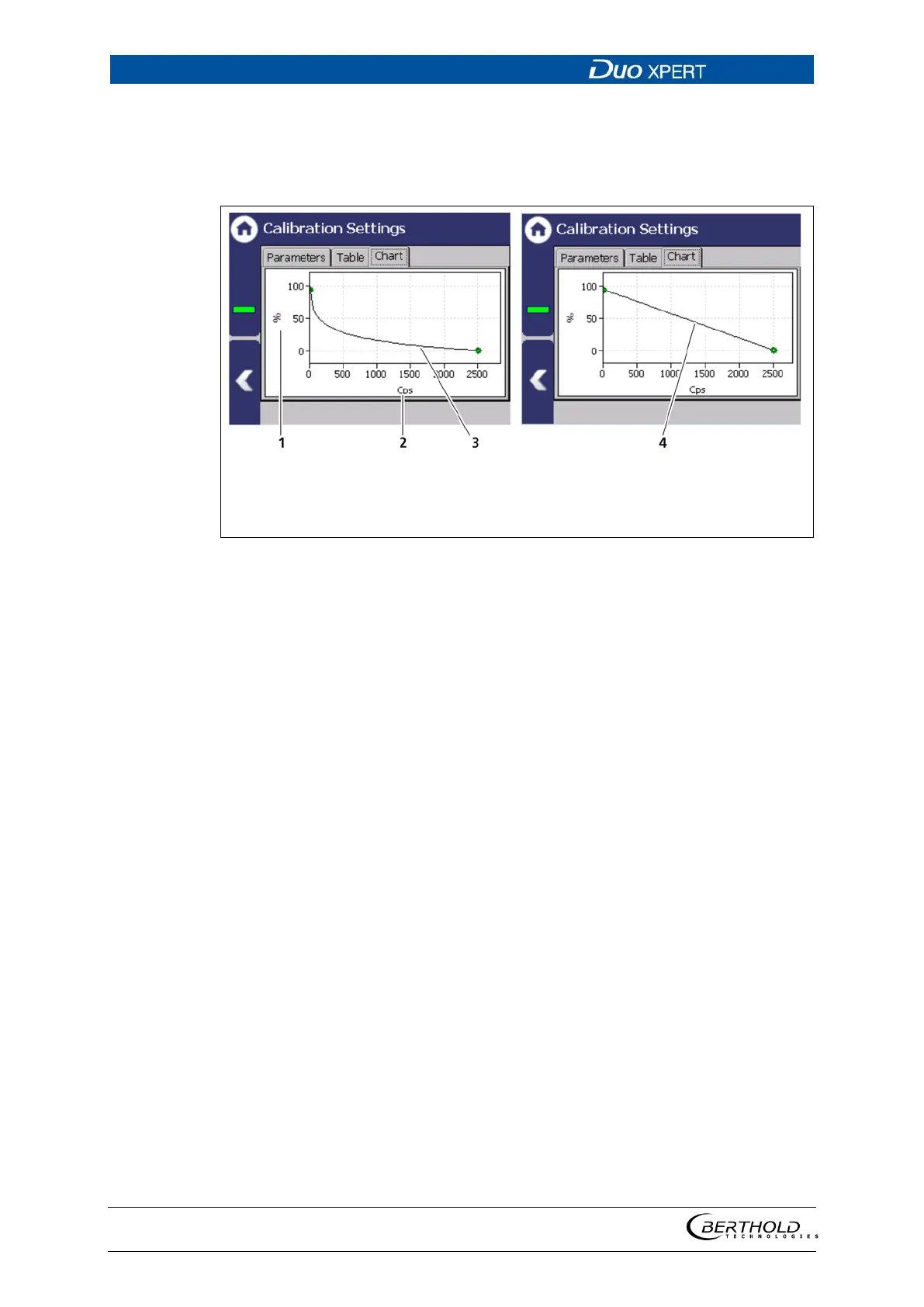

The characteristic curve of the calibration performed is shown in the tab ″Chart″.
1
2
3
4
Axis level [%}
Axis count rate [cps]
Characteristic chart (exponential)
Characteristic chart (linear)
Fig.
88 Calibration parameters (Chart)
