Berthold Duo Xpert - Page 31

LB 470 Level 4 Installation
56925BA2 Rev. 03, 11/2017
31

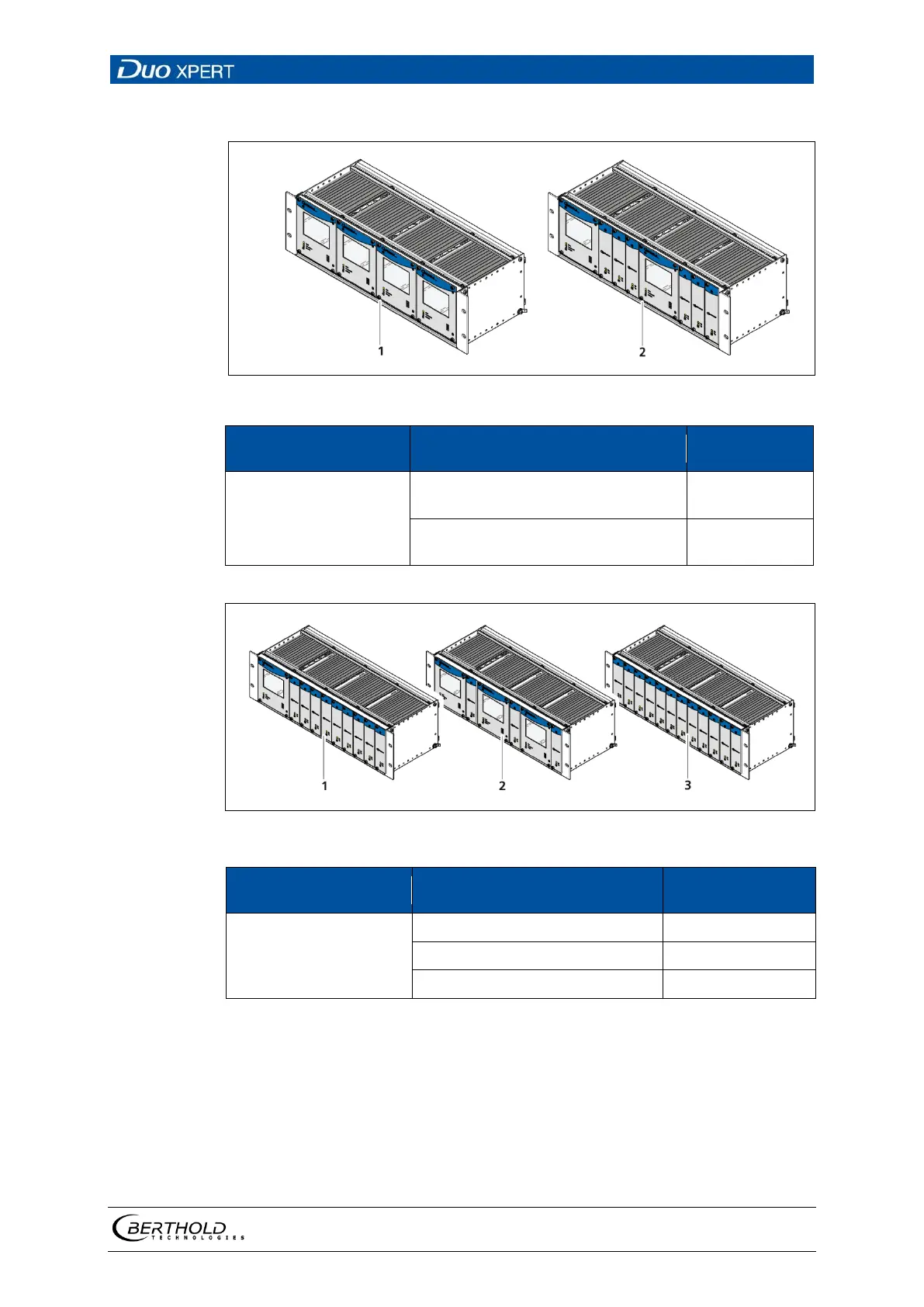

Installation variants subrack
Fig.
13 Installation variants 19" subrack with terminal panel
Installation variant
Connection
Components
19" subrack
2 terminal panel master (Fig. 13,
item 1)
4 Master
2 terminal panel master/slave (Fig.
13, item 2)
2 Master, 6
Slaves
Fig.
14 Installation variants 19" subrack with clamp blocks
Installation variant
Connection
Components
19" subrack
6 clamp blocks (Fig. 14, item 1) 3 Master, 3 Slaves
10 clamp blocks (Fig. 14, item 2) 1 Master, 9 Slaves
12 clamp blocks (Fig. 14, item 3) 12 Slaves
