4 Installation LB 470 Level
36
56925BA2 Rev. 03, 11/2017
Installation with clamp blocks
j DANGER
Danger to life from electric shock!
 Installation/maintenance may only be carried out if the device has been
de-energised.
 Test of absence of harmful voltages when the front side is open.
In case of an electric shock, carry out first aid measures and immediately call an emer-
gency service.
1
2
3
Master EVU
Slave module
Clamp block
4
5
6
Drilling
Guide rail
Fixing screw

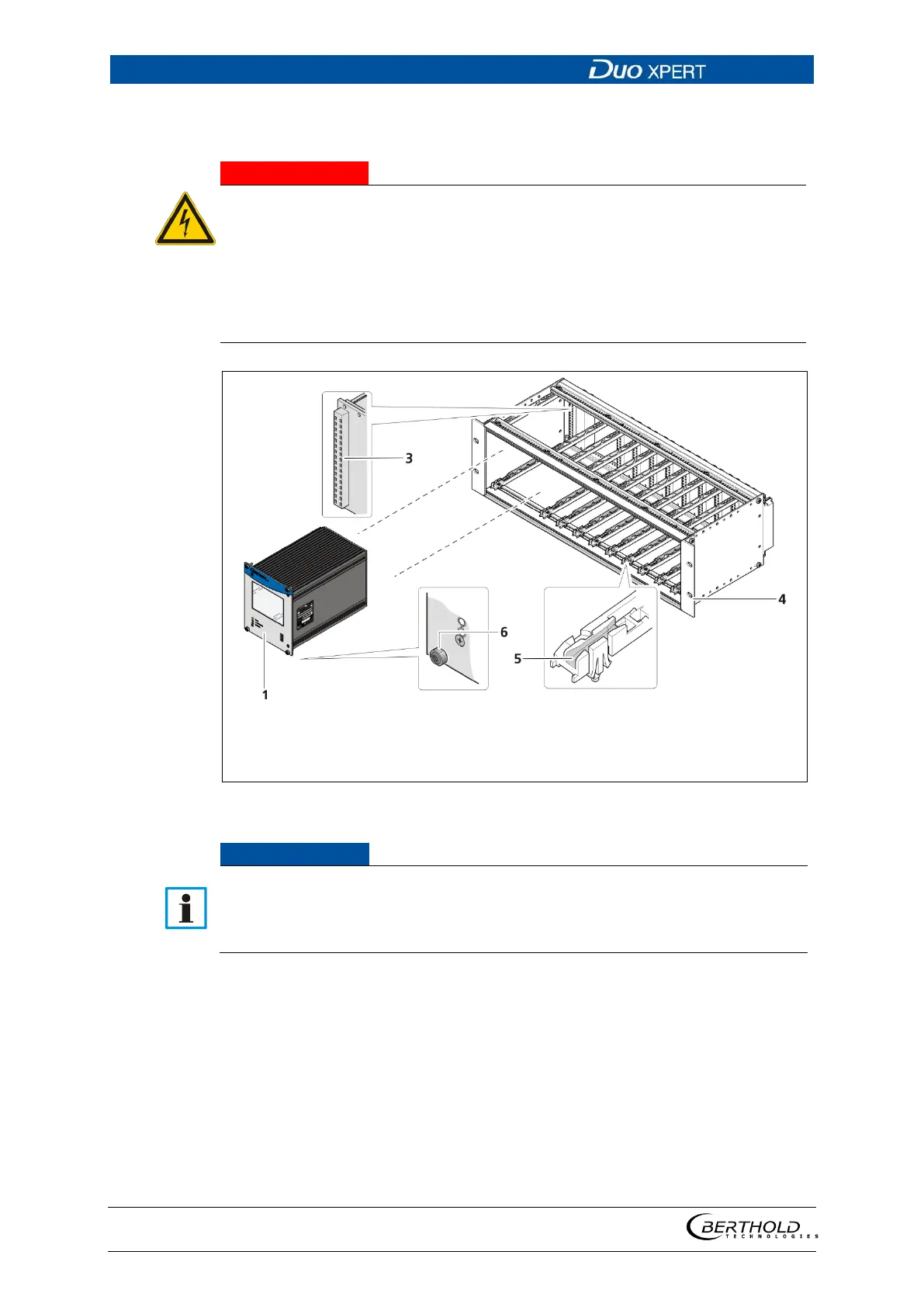

Fig.
18 19" subrack with clamp block (Ex: 1x Master, 9xSlave)
NOTICE
The master's EVUs / slave modules must be secured against pulling out by fix-
ing screws (Fig. 18, item 6).
The device must be disconnected from the mains voltage before it is pulled
out.
1. Set master EVU / slave module (Fig. 18, item 1, item 2) in the guide rails (Fig.
18, item 5).
2. Carefully slide module into the subrack until the plug connector is inserted
into the clamp block.
3. Tighten fixing screws (Fig. 18, item 6).
